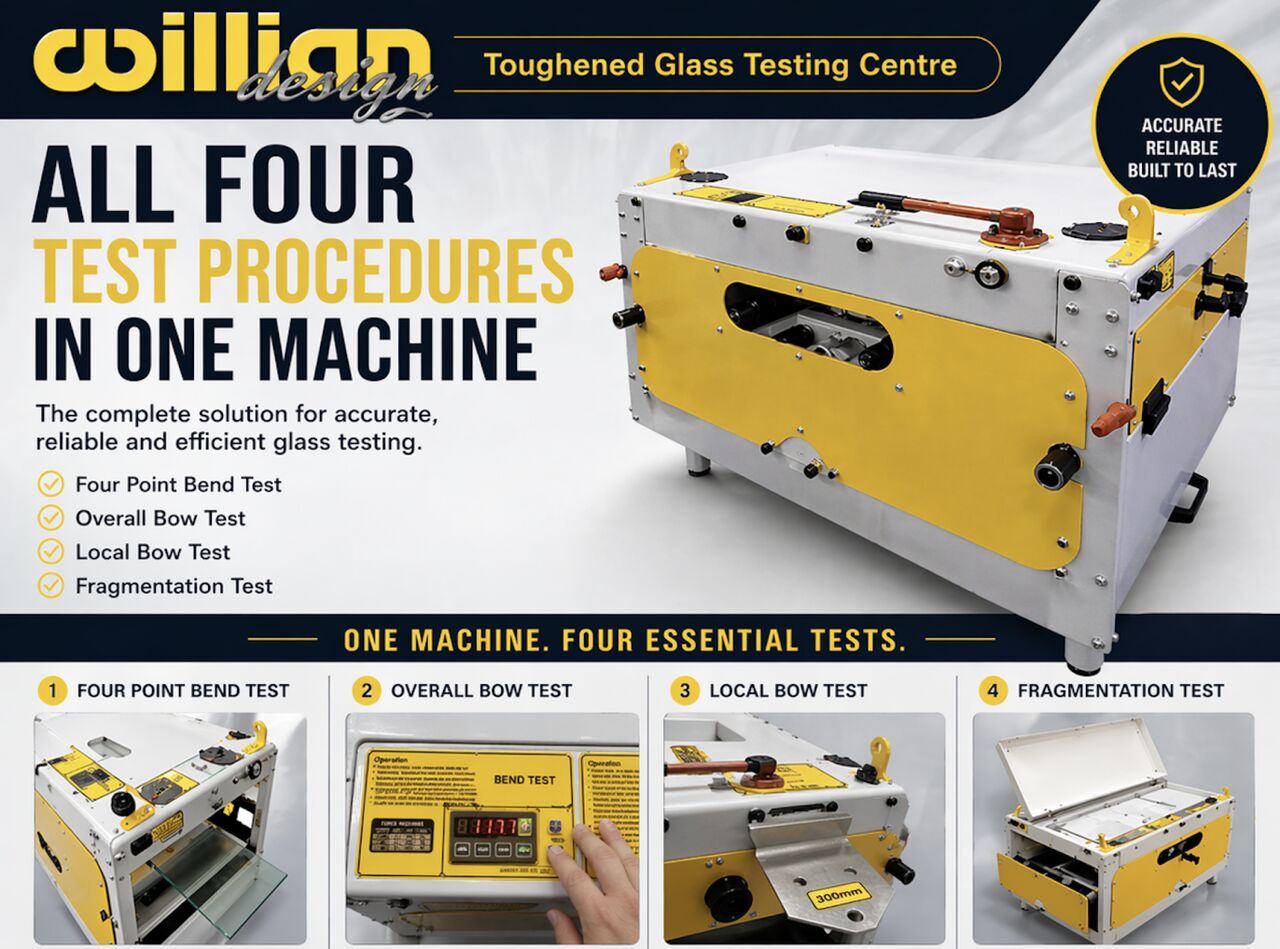

Willian Toughened Glass Testing Centre
Tempering FurnacesIntegrated toughened glass testing centre combining four-point bend, overall bow, local bow and fragmentation testing in one compact machine.
Specifications
- Machine Type
- Toughened Glass Testing Centre
- Testing Standards
- EN 12150 Toughened Glass Testing
- Integrated Tests
- Four Point Bend Test
- Overall Bow Test
- Local Bow Test
- Fragmentation Test
- Test Sample Size
- 1100 × 360 mm (Four Point Bend Test)
- System
- Hydraulic
- Force Display
- Digital Display
- Overall Bow Measurement
- Integrated Dial Gauge
- Local Bow Measurement
- 300 mm Gauge Centres
- Fragmentation Test
- Integrated Test Bed with Counting Template
- Broken Glass Collection
- Sliding Catch Tray
- Manufactured
- United Kingdom
Key features
- Four EN12150 tests in one machine
- Four Point Bend Test
- Overall Bow Test
- Local Bow Test
- Fragmentation Test
- Hydraulic loading system
- Digital force display
- Built-in bow measuring system
- Hinged fragmentation chamber
- Integrated fragment collection tray
- Supplied fragmentation counting template
- Fast quality control procedure
- Compact footprint
- Designed and manufactured in the UK
Brochures
About the Willian Toughened Glass Testing Centre
The Willian Toughened Glass Testing Centre provides a complete solution for testing the quality and compliance of toughened safety glass. Designed to simplify quality control, the machine combines the four essential EN 12150 testing procedures into one compact workstation, improving efficiency while reducing handling between individual tests.
The system performs:
- Four Point Bend Test
- Overall Bow Test
- Local Bow Test
- Fragmentation Test
The four-point bend test uses a hydraulic loading system with a digital force display to apply the correct load for the glass thickness being tested. If the glass passes the bend test it can immediately proceed to the remaining quality tests, reducing unnecessary handling. If the sample fails, the broken glass is safely collected in an integrated sliding catch tray.
The integrated bow testing stations allow both overall and local bow measurements to be carried out quickly using the built-in measuring system, while the hinged fragmentation chamber enables safe fragmentation testing and accurate particle counting using the supplied fragmentation template.
The Willian Testing Centre is ideal for glass manufacturers requiring routine quality control, production verification and compliance testing for toughened safety glass.
Stone & Glass Group supplies Willian quality control equipment throughout the United Kingdom, Ireland and the Benelux, including installation, commissioning, operator training, servicing and spare parts support.
