Bovone 471 Glass Bevelling Machine

The Bovone 471 is a high-performance straight-line glass bevelling machine designed for professional glass processors requiring exceptional bevel quality, high productivity and the flexibility to handle smaller and narrow glass pieces.

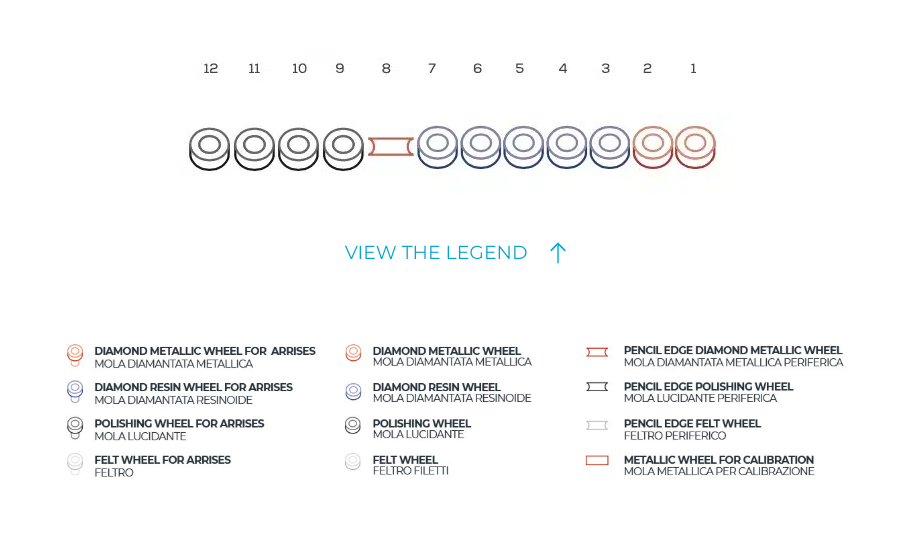

Its twelve-wheel configuration provides a complete grinding and polishing sequence, producing consistently high-quality bevelled glass in one continuous pass. The machine is particularly suited to medium and high-volume glass production where repeatability, finish quality and reduced downtime are essential.

The Bovone 471 processes glass from 3 to 25 mm thick at working speeds between 0.35 and 5.4 m/min. An optional high-speed configuration increases the maximum processing speed to 10 m/min, making the machine suitable for demanding production environments.

A key advantage of the 471 is its ability to process glass from 35 × 35 mm, together with long, narrow pieces from 25 × 500 mm. This gives glass processors additional flexibility when producing smaller decorative components, mirror sections and specialist architectural products.

Built on Bovone’s heavy-duty cast-iron base frame, the 471 provides exceptional rigidity and machining stability. This robust construction minimises vibration and torsion, supporting precise, repeatable bevel production throughout extended manufacturing cycles. Bovone also highlights excellent finishing quality, fast working speeds, straightforward software and low maintenance across its bevelling range.

Stone & Glass Group supplies the Bovone 471 throughout the United Kingdom, Ireland and the Benelux, supported by installation, commissioning, operator training, tooling, spare parts, servicing and comprehensive after-sales support.
