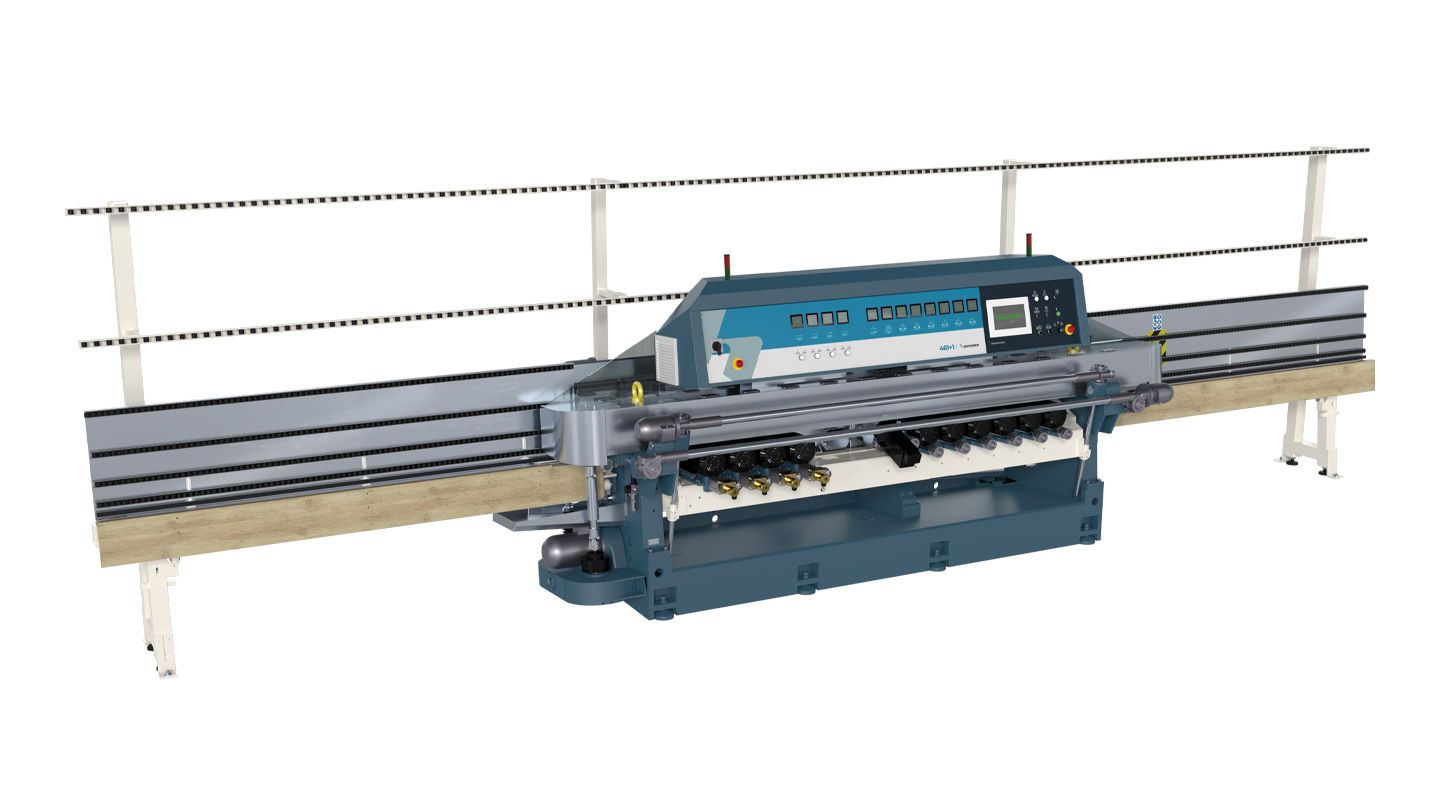

Bovone 461+1 Glass Bevelling Machine
Glass Bevelling MachinesHigh-performance straight-line glass bevelling machine combining bevel grinding, polishing and dedicated front arris finishing for exceptional production quality.
Specifications
- Machine Type
- Straight-Line Glass Bevelling Machine

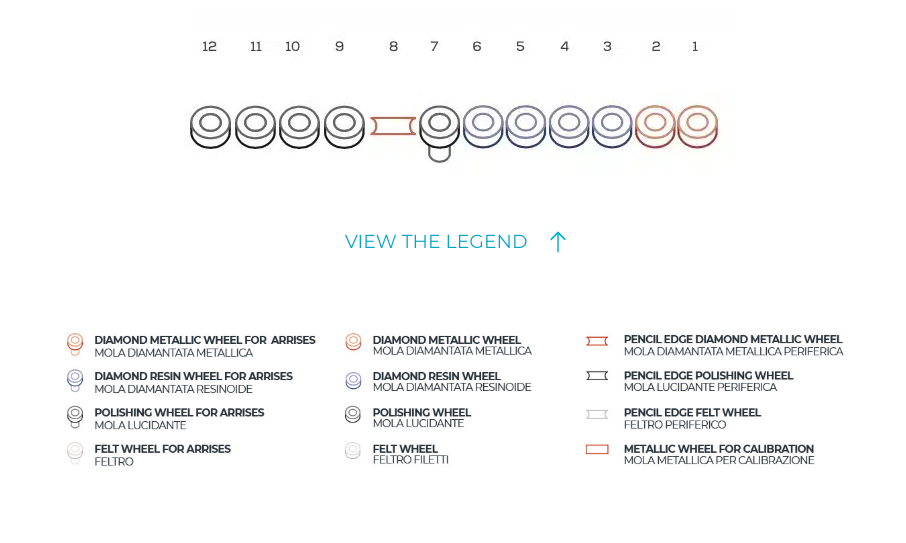

- Number of Wheels
- 12 + Front Arris Polishing Wheel
- Front Arris Width
- 2 mm
- Working Speed
- 0.35–5.4 m/min
- Glass Thickness
- 3–25 mm
- Minimum Glass Size
- 35 × 35 mm with wheel eight disabled
- Minimum Long Glass Size
- 25 × 500 mm
- Machine Dimensions
- 8200 × 1300 × 2200 mm
- Machine Weight
- 4400 kg
Key features
- Straight-line bevel grinding and polishing
- Bevel grinding and polishing in one pass
- Dedicated front arris polishing wheel
- High-quality straight-line bevel production
- Working speeds up to 5.4 m/min
- Processes glass from 3–25 mm
- Minimum glass size of 35 × 35 mm glass with wheel eight disabled
- Suitable for long narrow pieces
- Heavy-duty cast-iron body
- Excellent machining stability
- High-quality bevel finish
- Consistent and repeatable production
- Simple operator controls
- Designed and manufactured in Italy
Options
- Remote Assistance Package
- Bovone Virtual Assistant
- Companion Exit Washing Unit
- Front Track Scrubber
- Rear Track Scrubber
- Extended Infeed Conveyor
- Extended Outfeed Conveyor
- Initial Tooling Package
- High-Speed Package up to 10 m/min
About the Bovone 461+1 Glass Bevelling Machine
The Bovone 461+1 is a premium straight-line glass bevelling machine designed for professional glass processors that demand exceptional bevel quality together with a perfectly polished front arris.
Its advanced wheel configuration allows bevel grinding, polishing and front arris finishing to be completed in one continuous production cycle. A dedicated front arris polishing wheel produces a clean, consistent finish, making the machine ideal for architectural glass, mirrors, furniture glass and other applications where the finished edge remains visible.
The machine processes glass from 3 to 25 mm thick at working speeds of 0.35 to 5.4 m/min, with an optional 10 m/minhigh-speed configuration available for increased production output. It produces a 2 mm front arris and is capable of processing glass from 35 × 35 mm, including long narrow pieces from 25 × 500 mm.
Built on Bovone's heavy-duty cast-iron base frame, the 461+1 delivers exceptional rigidity and machining accuracy while minimising vibration during production. Precision spindle technology and simple operator controls provide repeatable, high-quality bevels with minimal setup time and straightforward maintenance.
Stone & Glass Group supplies the Bovone 461+1 throughout the United Kingdom, Ireland and the Benelux, supported by installation, commissioning, operator training, tooling, spare parts, servicing and comprehensive after-sales support.
