R&R AKT Georgian bar assembly table
RR

R&R AKT and Quadrobot

Spacer Bar Equipment

Georgian bar assembly range, from the AKT measuring and fixing table to the fully automatic R&R Quadrobot with six axes and four screw heads, with screw fixing for low psi profiles.

Speak to Sales Request a Call Back

Specifications

Type
Georgian bar assembly robot
Mounting heights
8 mm or 5 mm (for triple insulating glass)
Connection method
Screwed at 90 degrees (higher stability than riveted)

About the R&R AKT and Quadrobot

All you need for fully automatic Georgian bar assembly. R&R pioneered Georgian bar assembly in spacer frames and built the first assembly table with an integrated measuring device. The range now runs from tables for manual insertion of bars to fully automatic screw driving robots, with particular focus on R&R fastening technique.

In the era of triple insulating glass, Georgian bars are generally used at low mounting heights of 8 mm or even 5 mm. Screwing the spacer frames gives much higher stability than riveted edge connections, and avoids breaking thermoplastic spacer profiles during riveting.

AKT series assembly table:

  • Assembly table with measuring and fixing systems
  • Pneumatic clamping of the spacer frames
  • Pneumatic centring of the bars on the connection dimension
  • Riveting pistols on carts with guide rails or free hanging
  • Automatic positioning of the pistols, so misses are eliminated even with small bars
  • Also available as a manual or semi automatic connection table
  • No set-up time for different bar profiles and spacer frames thanks to special centre clamping
  • Special heating device for mounting Georgian bars in low psi profiles
  • Tables available in various sizes

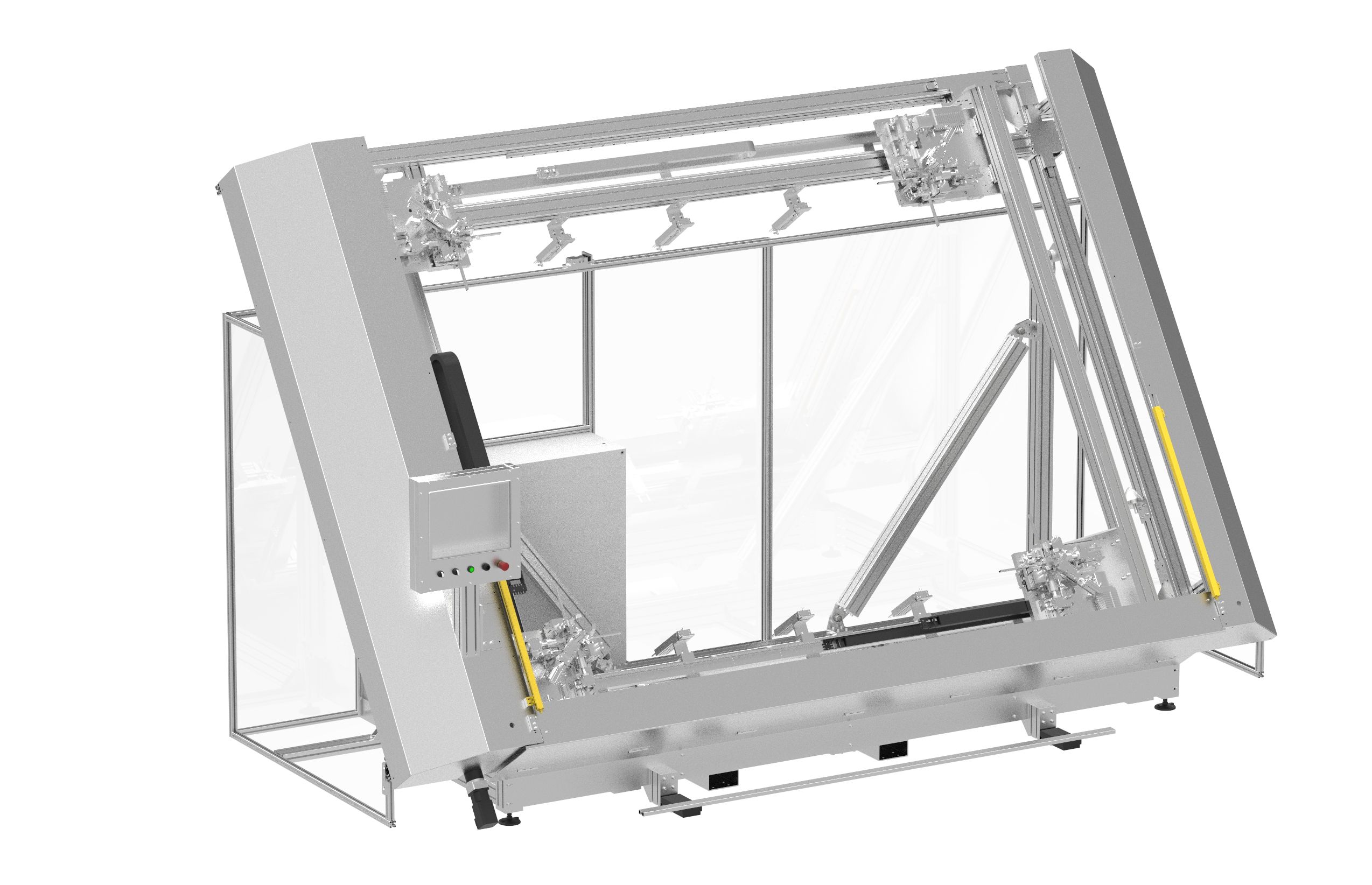

R&R Quadrobot, fully automatic:

  • Fully automatic Georgian bar assembly via six axes and four screw heads
  • Online transmission of the screw positions
  • Special centring clamp
  • Screwing of all connections at 90 degrees
  • Heating device for low psi profiles
  • No set-up time for changing Georgian bars or spacer frames

Watch

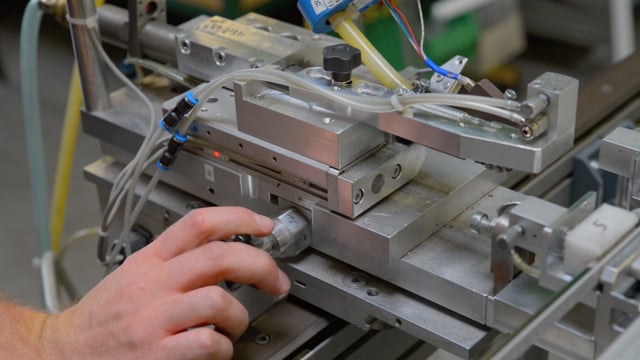

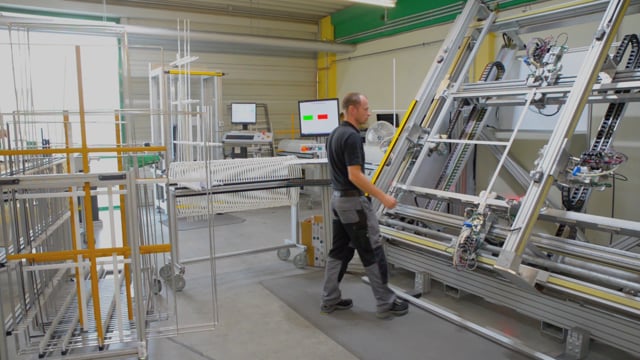

The R&R AKT and Quadrobot in action
