Digital Spacer Bar Saw
Spacer Bar EquipmentOur Digital Spacer Bar Saw provides a faster, safer and more accurate means of cutting either spacer or Georgian bar. The operator can remain in one position adjusting the stop distance with an easy
Specifications
- Type
- Digital spacer bar saw
- Programmable offset
- e.g. 23, 24, 25 mm less than glass size
- Maximum cut
- 2700 mm (standard 3 m infeed and outfeed tracks)
- Dimensions
- Length 6500 mm, depth 650 mm, height 1300 mm
- Power
- 3 phase, 16 amps, plus neutral plus earth
- Compressed air
- 100 psi, 2 to 4 cfm
Key features
- Programmable offset ie 23,24,25mm less than glass size.
- Quiet machine designed for constant running.
- Removable swarf tray.
- Accurate lock stop for repetitive Georgian bar cuts.
- Adjustable speed of cutter movement.
- Adjustable Bar clamping pressure.
Options
- Choice of running direction: left or right hand feed.
- Different track sizes available.
Brochures
About the Digital Spacer Bar Saw

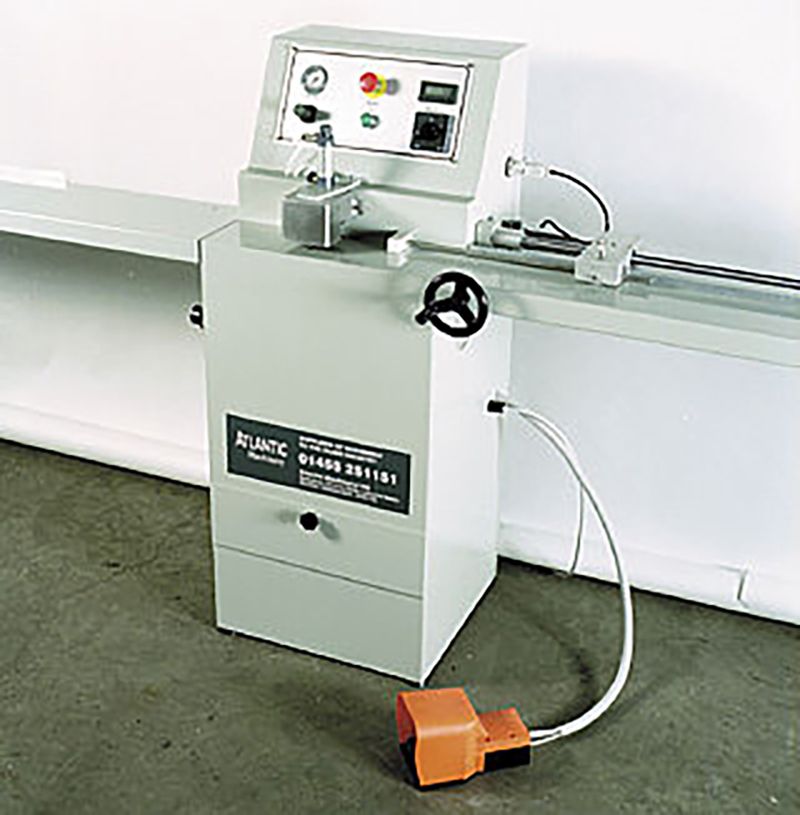

Our Digital Spacer Bar Saw provides a faster, safer and more accurate means of cutting either spacer or Georgian bar. The operator can remain in one position adjusting the stop distance with an easy to use wheel and digital display. The clamping and cutting of the bar is then activated by pressing the foot switch, making it impossible for any blade related accidents. Repetitive Georgian cuts can be accurately done using the locking stop and tape for consistency.
- Programmable offset ie 23,24,25mm less than glass size. - Quiet machine designed for constant running. - Removable swarf tray. - Accurate lock stop for repetitive Georgian bar cuts. - Adjustable speed of cutter movement. - Adjustable Bar clamping pressure.
- Power: 3phase electricity rated at 16Amps,plus neutral plus earth. - Compressed Air: 100psi, 2-4cfm. - Standard infeed and outfeed tracks 3mtr . Max cut 2700mm. - Dimensions: Length-6500mm, depth - 650mm, Height – 1300mm - Suitability aluminium, warmedge and georgian bars .
