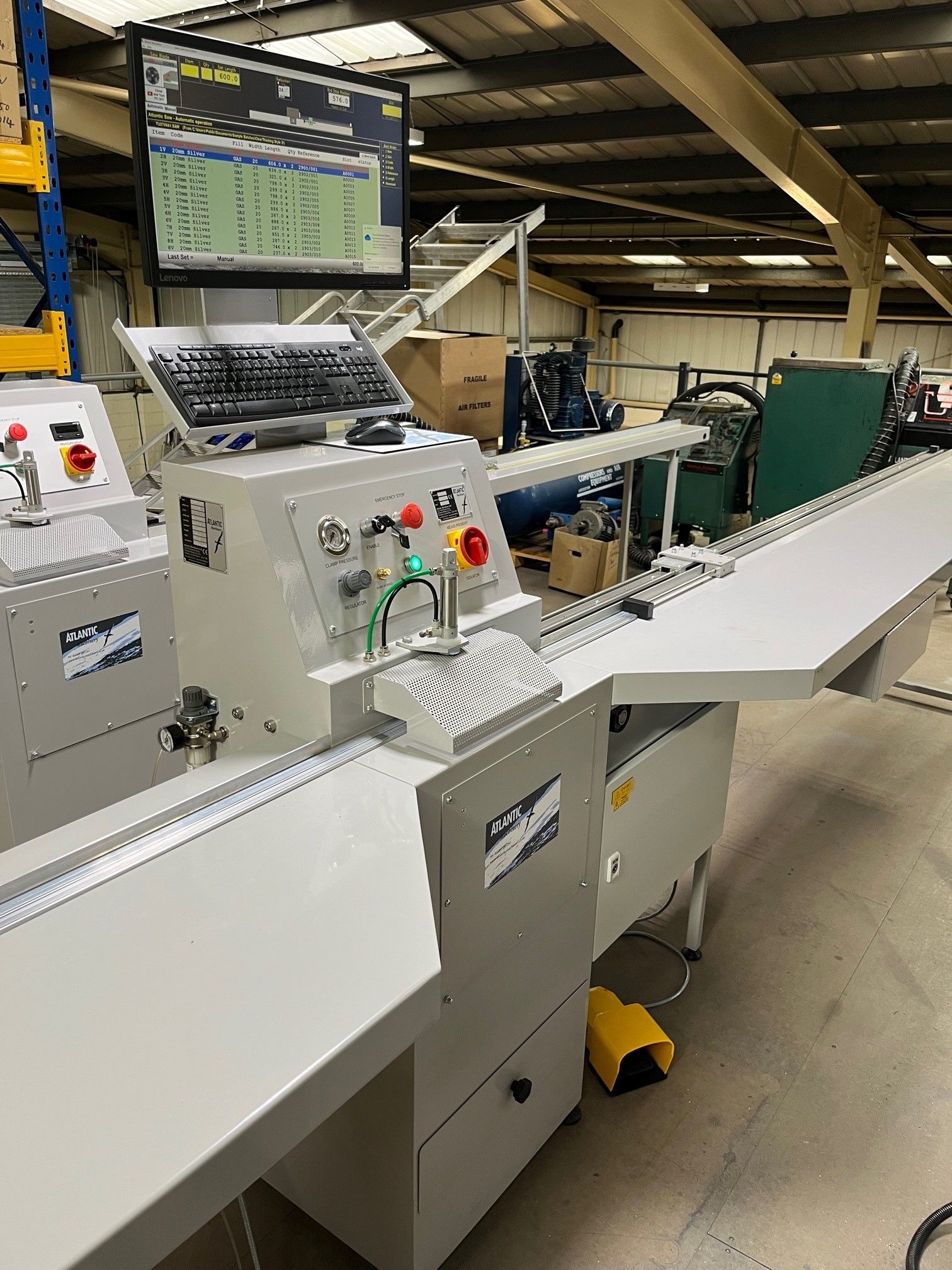

Computer Spacer Bar Saw
Spacer Bar EquipmentThe computerised Spacer Bar Cutter has been designed to utilise sealed unit batch data , either by data stick or part of a network. The saw is accurate, fast to operate with the bar stop moving automa
Specifications
- Type
- Computer-controlled spacer bar saw
- Spacer bar reduction
- On-screen adjustable (e.g. 23, 24, 25 mm shorter than glass length)
- Work ordering
- By bar thickness, length, colour, reference, or glass batching trolleys
- Control
- PC Windows based; optional label printing
- Power
- 3 phase plus neutral plus earth, 20 amps per phase
- Compressed air
- 100 psi / 7 bar, 2 to 4 cfm
Key features
- On screen adjustable spacer bar reduction. Ie 23, 24, 25mm shorter than glass length

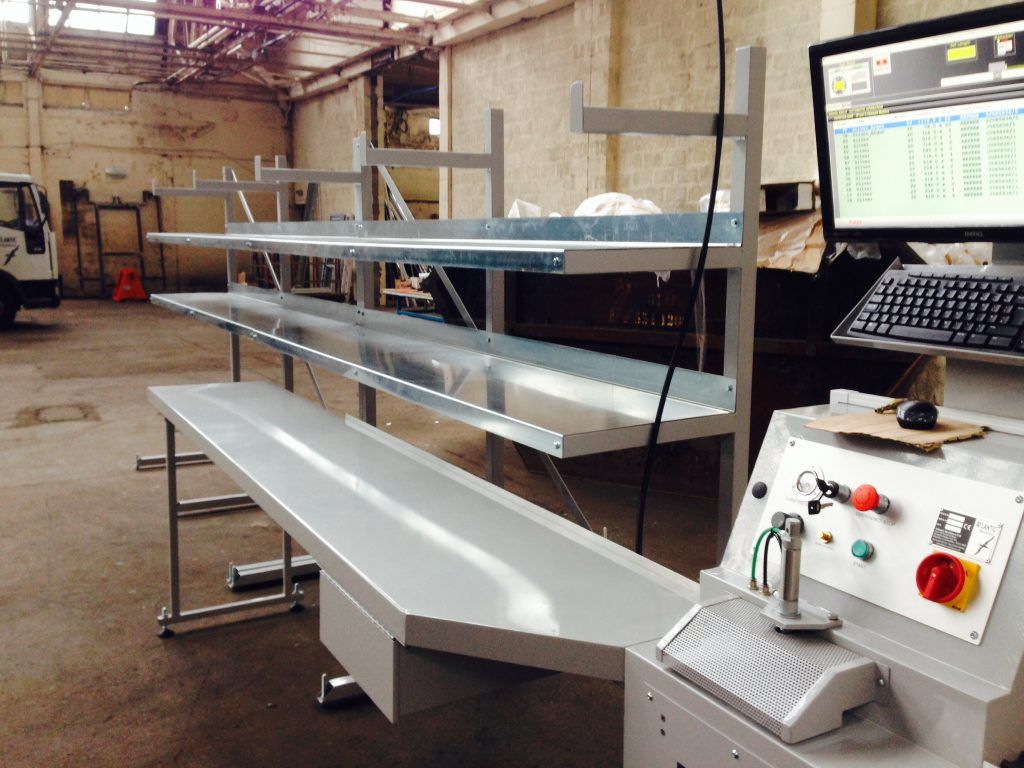

- Spacer bar storage racking system if required
- On screen calibration mode
- Order of work can be preferenced by: bar thickness, length, colour, reference number, or to tie in with Glass Batching Trolleys.
- Label printing optional

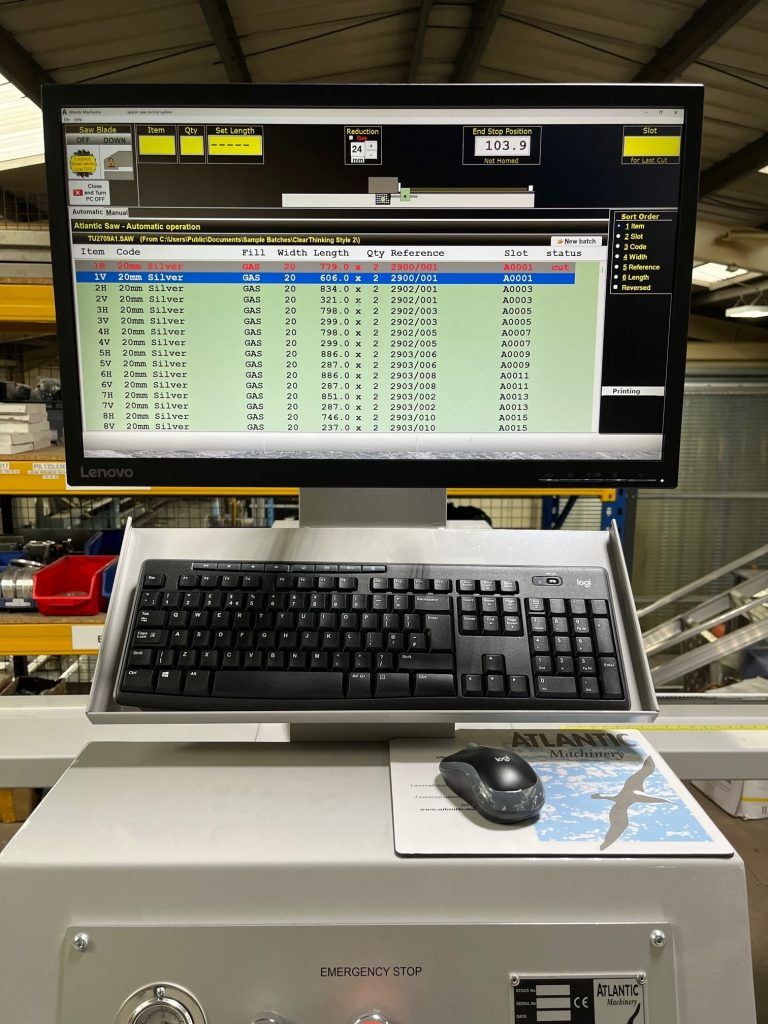

- Easy to use PC Windows® based operation
Brochures
About the Computer Spacer Bar Saw

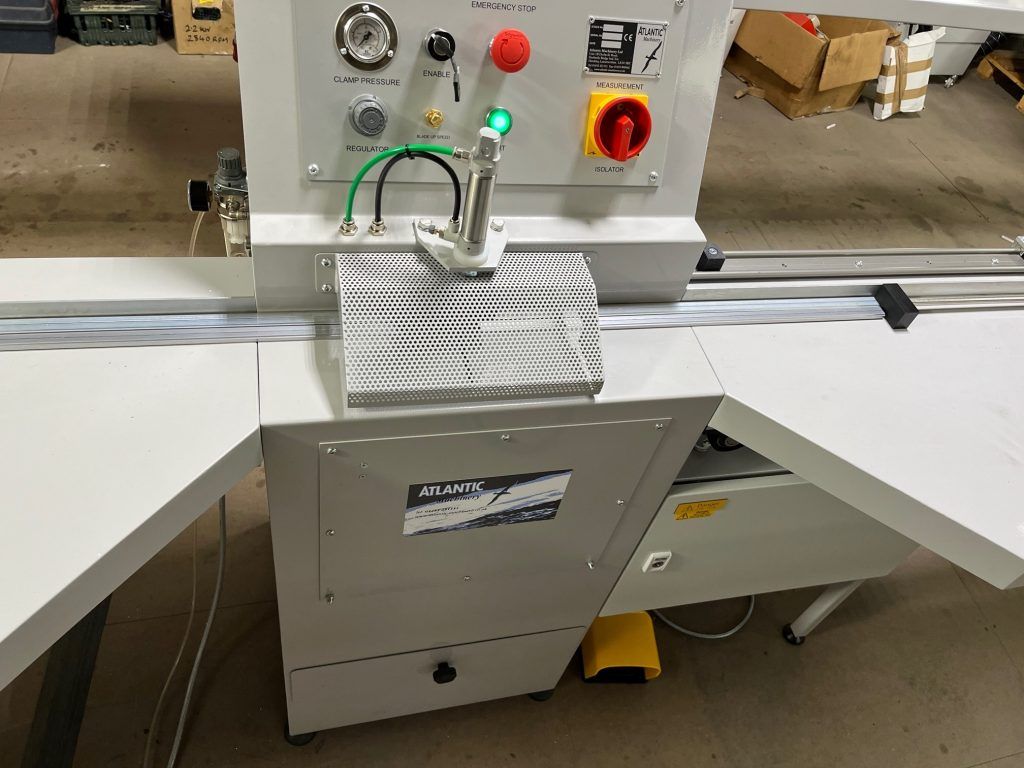

The computerised Spacer Bar Cutter has been designed to utilise sealed unit batch data , either by data stick or part of a network. The saw is accurate, fast to operate with the bar stop moving automatically to the particular highlighted size. The bars are pushed to the stop and with foot pedal activation, clamped and cut in one operation. Batches can be interrupted and the saw used in manual operation at any time. The saw is designed for use with warm edge , aluminium spacer and Georgian bar.
- On screen adjustable spacer bar reduction. Ie 23, 24, 25mm shorter than glass length - Spacer bar storage racking system if required - On screen calibration mode - Order of work can be preferenced by: bar thickness, length, colour, reference number, or to tie in with Glass Batching Trolleys. - Label printing optional - Easy to use PC Windows® based operation
- Power: Isolator box supplied with 3-phase electricity plus neutral plus earth. Rated at 20 amps per chase - Compressed air: 100psi / 7 bar 2-4 cfm
Interested in the Computer Spacer Bar Saw?
Speak to sales about pricing, lead times, and installation. We can also arrange demonstrations.
Book a Free Consultation
