Compact 4C Automatic Glass Screen Printing Machine
Screen PrintingAutomatic four-column glass screen printing machine for fast, precise production and larger glass formats.
Specifications
- Machine Type
- Automatic Glass Screen Printing Machine
- Configuration
- Four-Column
- Operation
- Automatic
- Glass Transport
- Automatic Belt System
- Screen Frame Movement
- Motorised
- Screen Frame Locking
- Pneumatic
- Squeegee & Scraper Locking
- Pneumatic
- Peel-Off
- Motorised Automatic
- Pressure Control
- Digital Proportional Valves
- Printing System
- Edge-to-Edge Ready
- Installation
- Standalone or Integrated Production Line
- Manufactured
- Italy
Key features
- Four columns supporting a wider printing head
- Fully automatic belt entry with pre alignment and centring
- Printing precision of +/- 0.08 mm between pieces
- Frame cleaning and extraction without losing the register
- Edge to Edge (E2E) printing capability
- Printing bridge rotation for quick squeegee and flood bar changes
Options
- Edge-to-Edge Printing System Allows printing to be extended to the edge of the glass for applications requiring maximum printed coverage.
- Automatic Frame Adjustment Camera and servo-controlled system for automatic positioning of the screen frame, helping reduce setup and format-change times.

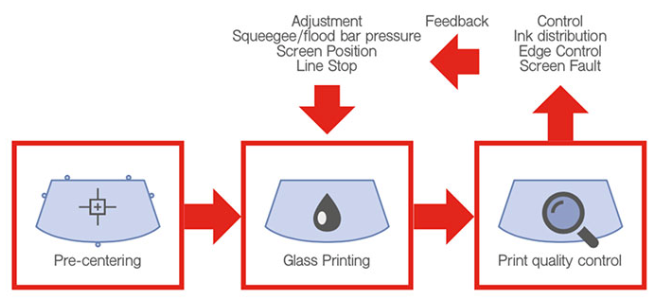

- Printing Quality Control Vision inspection system positioned after printing to detect print imperfections and monitor production quality.
- Glass Quality Control Automatic inspection technology for detecting defects and irregularities in the glass.
- Frame Breakage Detection Camera-based inspection for detecting problems associated with damaged screen frames.
- IR Dryer Infrared drying system for integration after the printing process.
- UV Dryer UV curing system for compatible printing processes.
- Combined IR/UV Dryer Combined drying and curing technology for applications requiring both processes.
- Automatic Glass Handling Cugher conveyors, accumulators and specialised handling systems can be incorporated before and after the printer.
- Robotic Automation Industrial robots can be incorporated for automatic loading, unloading and glass handling.
- Production Line Control Cugher production management and Industry 4.0 systems can be integrated into complete automated lines.
About the Compact 4C Automatic Glass Screen Printing Machine
The Cugher Compact 4C is an automatic glass screen printing machine developed for fast, precise and highly repeatable production of flat glass, particularly for the home appliance industry.
Developed as the latest evolution of Cugher's Compact Series, the Compact 4C features a four-column structure instead of the traditional two-column configuration. This allows the machine to support a wider printing head and process larger glass formats while retaining the compact design and high production performance associated with the Compact range.
Glass is automatically transported through the machine using a belt system, while the printing process is controlled to provide accurate and consistent positioning. Motorised movements and pneumatic locking systems simplify machine setup and help reduce production changeover times.
A particularly useful feature of the Compact 4C is the ability to extract the screen frame for cleaning without losing its registration. This allows the operator to clean the screen and return it to production without repeating the complete alignment process.
The machine also features motorised automatic peel-off, digital proportional valves, pneumatic screen-frame locking and pneumatic squeegee and scraper locking. The printing carriage can be rotated to provide easier access during cleaning and production changes.
Compact 4C is also prepared for Cugher's Edge-to-Edge printing technology, providing additional flexibility for applications requiring printing close to or directly up to the glass edge.
The machine can operate as a standalone screen printer or form part of a fully automated Cugher production line incorporating drying, glass handling, robotic automation and vision inspection systems.
Stone & Glass Group supplies Cugher machinery and complete production systems throughout the United Kingdom, Ireland and Benelux, supported by system specification, installation, commissioning, operator training, servicing, spare parts and comprehensive after-sales support.
