cugher home appliance series’

fast series printing machine

·       Possibility to set different speeds for squeegee bar and scraper

·       Anti-drip system, on the printing bridge (squeegee bar / scraper group)

·       Constant pressure of squeegee bar and scraper, which can be set from the recipe on the operator panel

·       Quick and easy frame registration, with micrometric precision on all directions, including rotation

·       Adjustable height of printing head, depending on glass thickness and to make cleaning and maintenance operations easier

·       Frame extraction without losing the registers and pneumatic locking of the same.

·       Possibility to raise the printing head up to 500 mm to facilitate cleaning / maintenance operations (in total 1500 mm from the floor.

·       Anodized and ground aluminium printing table, provided with belts for moving the glass to be able to handle even holed glass.

·       Cycle time: 6 seconds: with maximum glass size – 800 x 1000 mm – possibility to print up to 600 glasses / h

·       Recipes based printing machines and lines for quick setup & changeover.

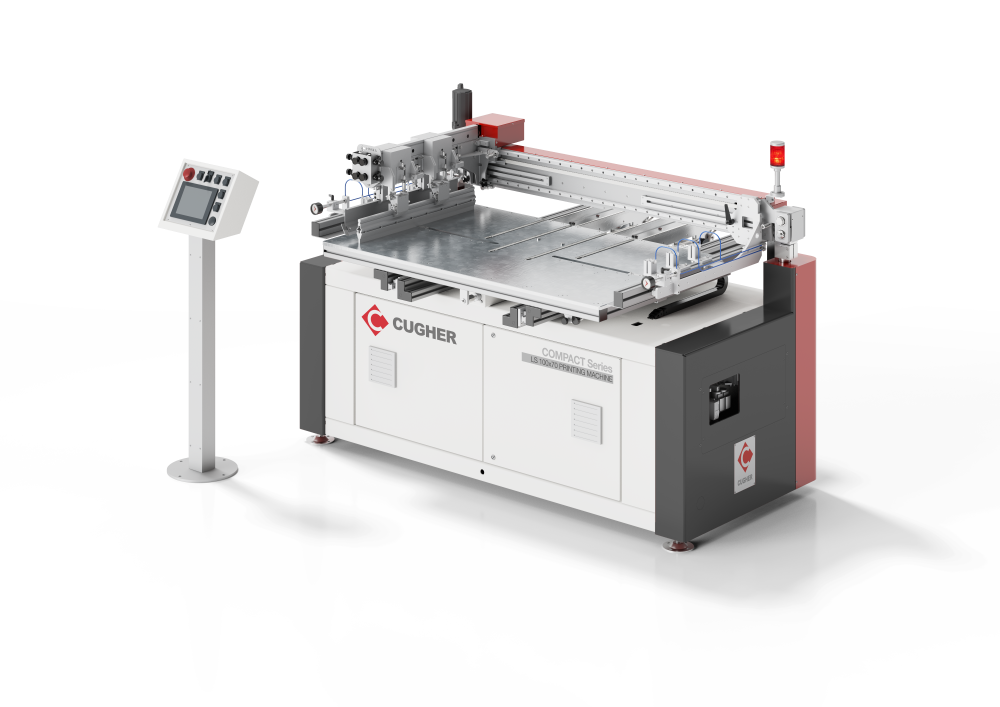

compact series

Engineered for high productivity and ease of use, this machine is ideal for large production batched and the fast, precise printing of square or rectangular flat glass and rigid materials of varying sizes and shapes.

·      Operator-side control panel for intuitive operation

·      High-speed, high precision printing table on flat extraction for improved accessibility

·      Horizontally movable printing table with full extraction for improved accessibility

·      Manual loading with easy centring functionality

·      Fine adjustment of the glass to screen distance

·      Automatic snap off adjustment

·      Precise registration on X, Y and Z axis

·      Liftable printing head for an easy screen inspection and rapid cleaning

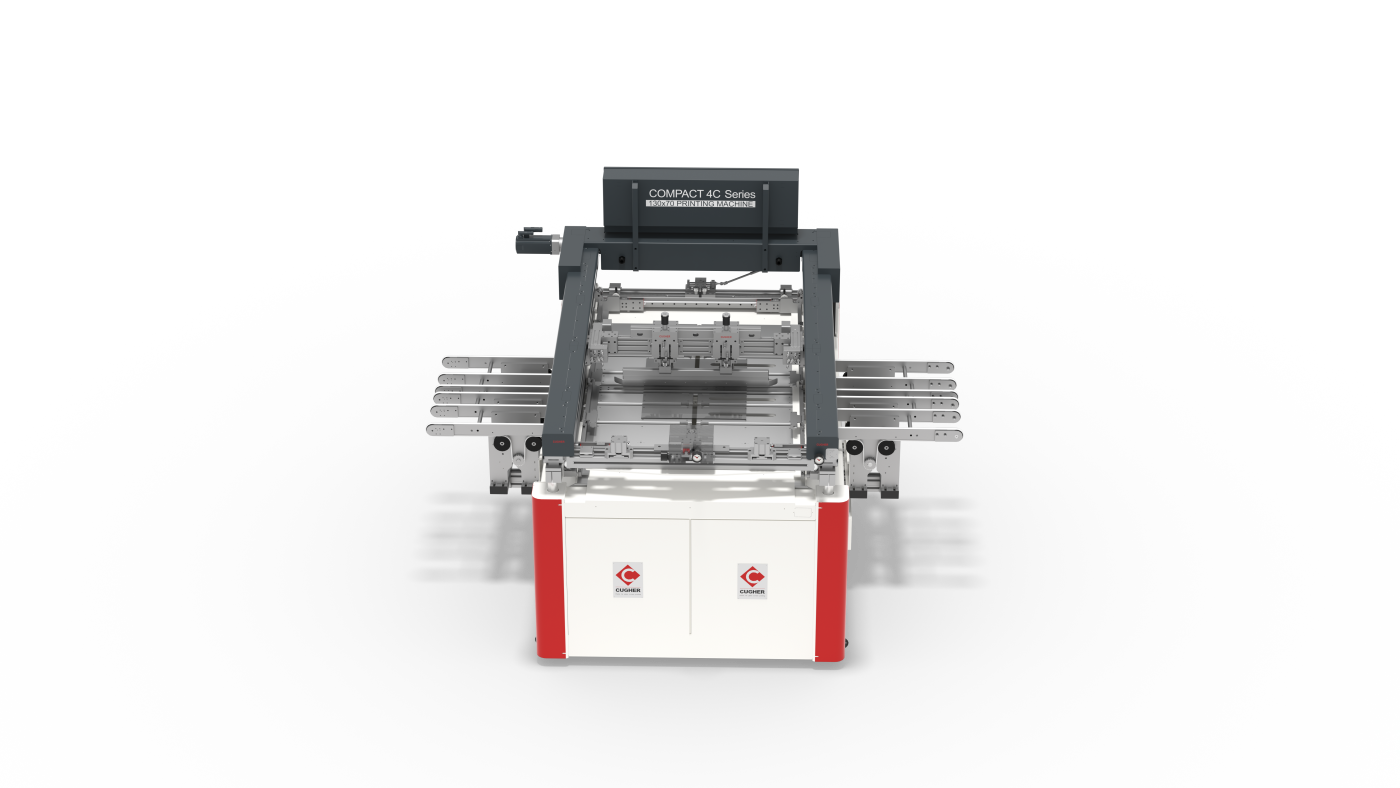

compact series 4c

An Advanced evolution of the compact series, the Compact 4C is designed for high precision, high volume printing on larger squared and rectangular glass. Ideal for cooktop and household appliances, including drilled glass. Its robust four column structure supports a wider printing head for enhanced performance.

·      Glass size range – 150x150mm to 1300x700mm

·      Fully automatic operation with belt-fed entry, pre alignment and centring

·      Productivity: up to 550pcs/h for 1144x692mm glass

·      Printing precision: ±0.08mm

·      Quick frame extraction for cleaning without losing registration

·      Compatible with E2E system for edge-to-edge printing

·      Rotating printing bridge for easy squeegee and flood bar replacement

·      All settings controlled via an intuitive operator panel

flexy series

Versatile screen-printing solution for multiple glass types

Designed to handle a wide range of glass formats, this machine is ideal for both small and varied production lots, offering flexibility without compromising on precision of use.

·      Suitable for diverse glass types and batch sizes

·      Stainless steel magnetic table with mice perforations, featuring vacuum and blow systems for secure and effortless glass positioning

·      Manual loading and unloading from the operator side

·      Glass size capacity: maximum 1300x2000mm, minimum printing area 200x200mm

·      All functions managed by a programmable logic controller (PLC) for reliable and automated operation

·      Designed for easy and safe maintenance
