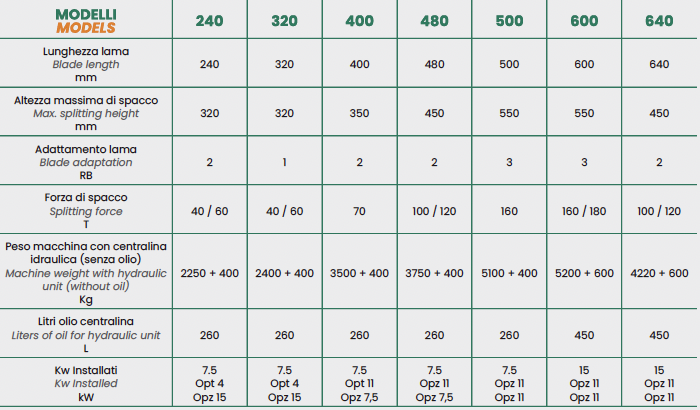

IGLOO

Curbs, Paving Stone and Wall Stones

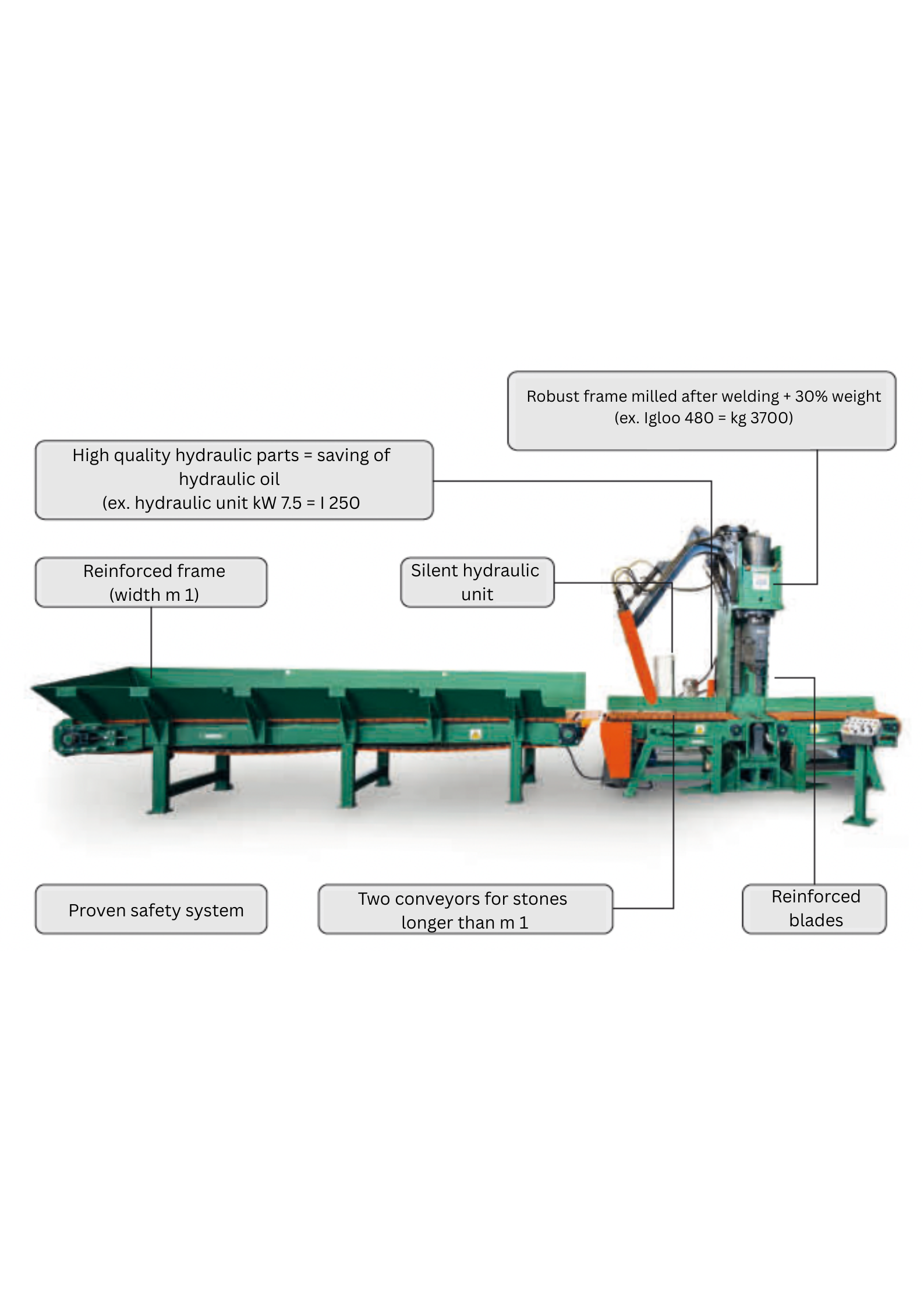

Main Features

  • Robust, electro-welded and milled frame

  • Silent hydraulic unit

  • Blade adaption

  • Photocells or double buttons safety system

  • Extremely versatile and very fast

  • Highly productive and long-lasting

  • Splitting of different types of stones

  • Weight

  • Low hydraulic oil consumption (ex. 250 litres for a 7,5 kW hydraulic unit)

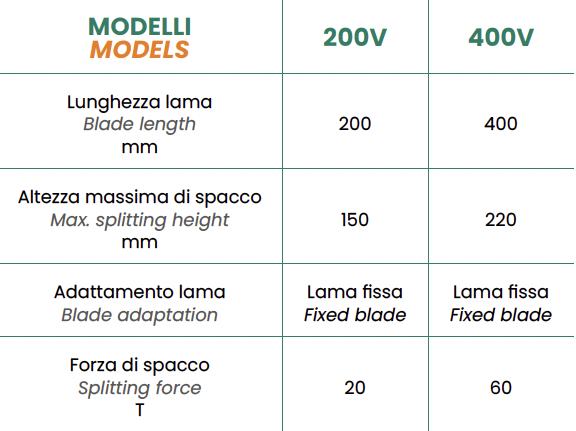

IGLOO 200V & IGLOO 400V

  • Silent Hydraulic unit

  • Automatic production of cobbles and small-medium stripes

  • 2 inbound ramps for split and sawn stones

  • For the inclination of the ramp and the gravity, motorisation and sideboards are not required

  • The first ramp is used for the production of cobbles or stripes with two rough sides

  • The second ramp is used for the splitting in two parts of six-face sawn striped that will have therefore one natural side

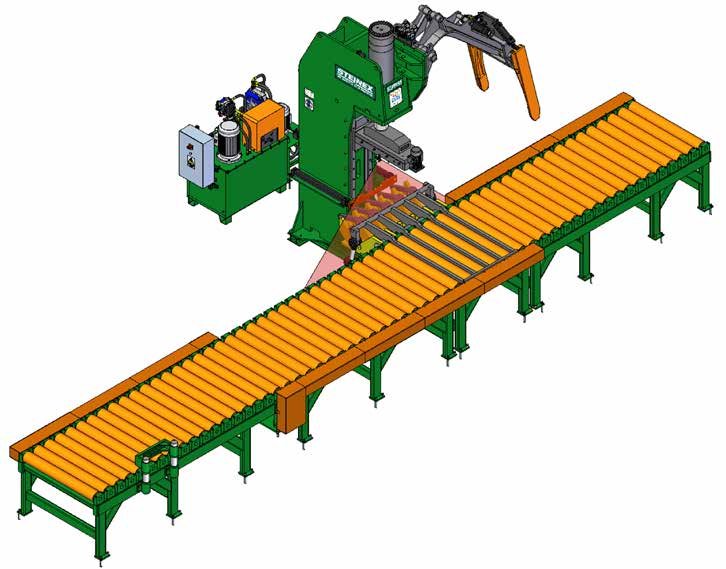

IGLOO SFD

Main Features

  • Two-axis system for the cleaving of quarry blocks up to mm 500 width, mm 1000 height and variable length from mm 300 up to mm 2000

  • Three-axis system for the cleaving of sawn blocks

  • It can be used both individually and together with conveyors

  • It has a hydraulic manipulator and an evacuation system
