Steinex Broadway
Quarry MachinesDouble frame splitting machine for wide, thin materials, producing tiles, flatwork and wall tiles with precise edges and minimal waste.
Specifications
- Type
- Hydraulic stone splitting press
- Tool width sizes
- 800 / 1000 / 1280 mm (blade larger than nominal width)
- Tool adaptation
- RB or 2RB individual adaptation system
- Materials
- Stratified stone (natural quarry surface) or monolithic stone with two sawn surfaces
- Power unit example
- 7.5 kW (250 litre tank)
About the Steinex Broadway

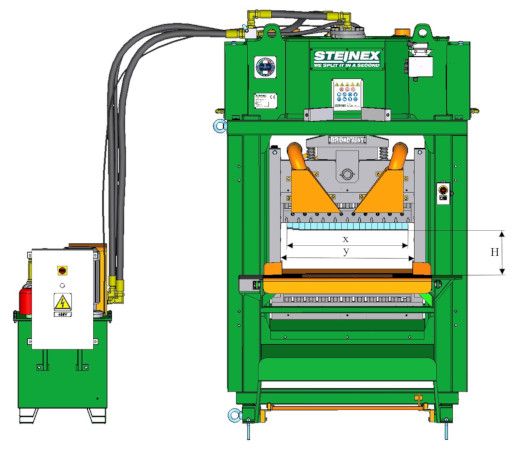

Broadway splitting machines are designed to shear wide and very thin materials using a special double frame system in which the inner frame is movable. The inner frame raises the lower blade while the upper blade moves down, so workpieces placed on the fixed table are always sheared with a precise edge.
Thanks to the RB or 2RB individual adaptation system, each tool applies the right pressure to the piece, giving high split quality and reduced processing waste. The machines are ideal for producing tiles from slabs or from natural quarry plan stone, and they shear all types of stratified stone with a natural quarry surface, or monolithic stone with two sawn surfaces.
The sizes 800, 1000 and 1280 refer to the overall tool width; the blade is always larger, allowing larger pieces to be split.
Main features:
- Sturdy electro welded and milled structure
- Silenced hydraulic power unit
- Blades with individual adaptation
Strengths:
- Intuitive and easy to use
- Highly productive and durable
- Suited to constant, intensive use, including the splitting of semi precious stone
- Mobile carpentry and reduced weight
- Reduced hydraulic oil consumption, for example 250 litres for a 7.5 kW power unit
