Triulzi VOT.SP12 Open Top Vertical Washing Machine
Washing MachinesOpen top vertical washer for glass up to 12 mm thick, with a mechanical pressing and towing system, ideal for stand alone use in small glassworks.
Specifications
- Working height
- from 1600 mm up to 2000 mm
- Glass thickness
- from 2 mm up to 12 mm
- Minimum glass
- 300 x 150 mm
- Glass thickness detection
- by mechanical pressure system
- Overall dimensions
- 4920 mm (L) x 1900 mm (W) x 2900 mm (H)
- Installed power
- 11 kW
- Working speed
- from 2 up to 7 m/min
- Voltage, frequency, phases
- 380 V, 50 Hz, 3 Ph

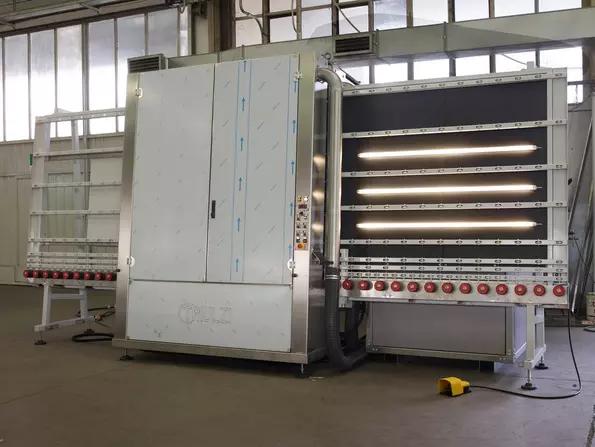

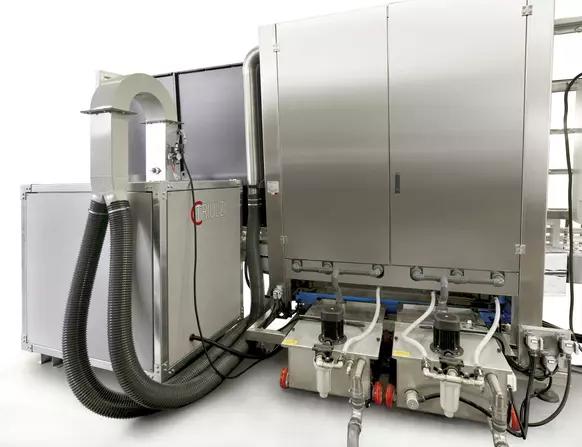

About the Triulzi VOT.SP12 Open Top Vertical Washing Machine
One of the longest lived washing machines in the Triulzi range. This model is designed to wash and dry glass sheets with a maximum thickness of up to 12 mm. All open top machines are suitable for working stand alone in small glassworks.
Glass pressing and towing system: compared to its big sister the open top VOT.SP50, which washes and dries glass up to 50 mm thick, this model is designed for thinner glass sheets. Thanks to a mechanical pressure system through special tyres, the glass moves forward driven by this system.
