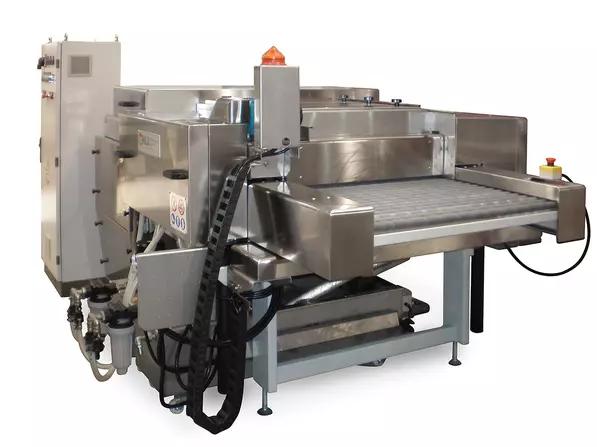

Triulzi Toscana Horizontal Washer for Small Glass
Washing MachinesHorizontal washer for small glass sheets from 100 x 50 mm, with motorised height adjustment of the whole upper section and two pairs of cylindrical brushes.
Specifications
- Working width
- from 650 mm up to 1000 mm
- Working speed
- from 2 up to 7 m/min
- Overall length
- from 2970 up to 3350 mm
- Working height
- 950 ± 30 mm
- Installed power
- up to 12.5 kW
- Minimum glass size
- 100 x 50 mm
- Glass thickness
- 2 to 8 mm (optional 30 mm)
About the Triulzi Toscana Horizontal Washer for Small Glass
The Toscana horizontal washing machine has a motorised height adjustment device for the whole upper section. It is planned for the washing of small flat glass sheets, down to 100 x 50 mm. Top prewashing, washing by two pairs of cylindrical brushes constantly wetted by water sprayers, and drying by two pairs of blowers fed by a high pressure fan. Rubberised, vulcanised and rectified conveyor rollers, electronic speed adjustment by inverter with digital display. All parts in contact with the water are made of stainless steel, with sound pressure level within standards.
Manual thickness adjustment up to 30 mm with display.
