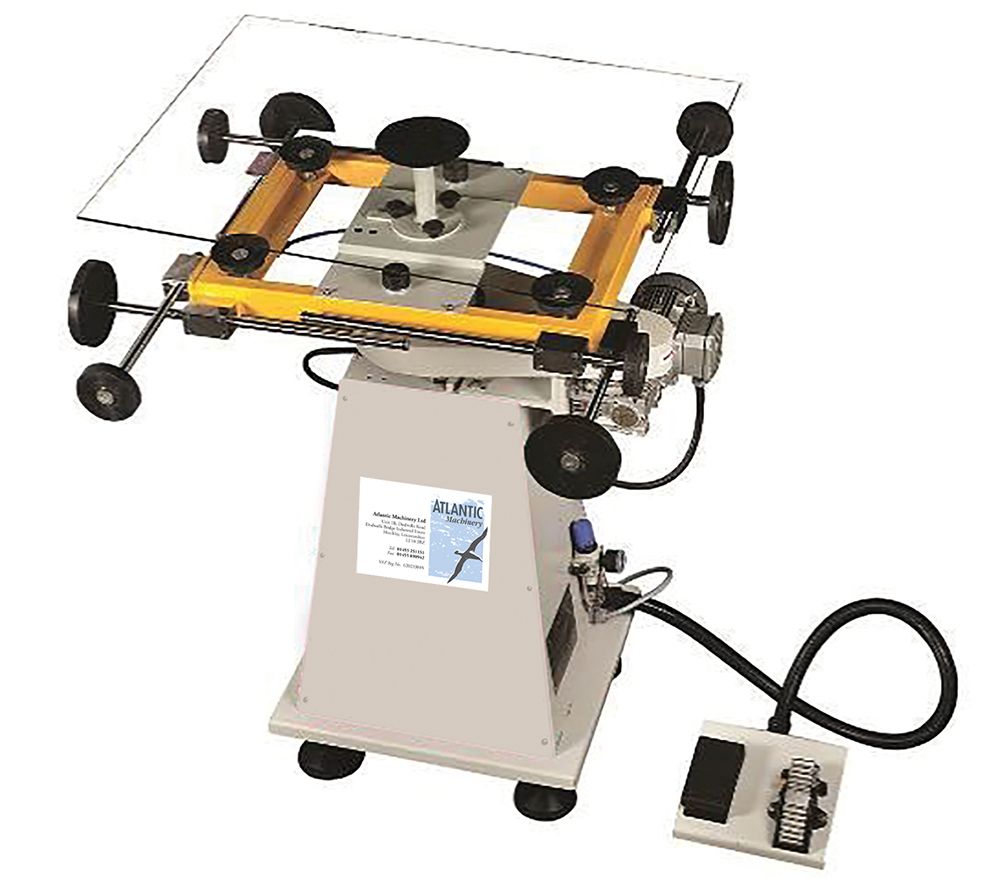

Rotary Sealing Tables

The Rotary Sealing Table facilitates controlled application of sealant onto pre-assembled glass units. It allows users to adjust the speed of the sealing process and provides a comfortable working height for enhanced efficiency during the application.

Fixed speed electric rotation Rotation in 90˚ increments 4 vacuum cups hold glass firmly Working height fixed at 950mm Minimum glass size 120 x 120mm using adaptor plate Maximum glass size 2100 x 1200mm Rotation and suction by foot control 415 Volt, 3 phase and compressed air.

As machine manufactures we are happy to adapt our machines and make bespoke alterations to our machinery range to meet customers requirements.
