J Series
Screen PrintingFully automatic flat glass screen printing machine with belt transport and auto centring, covering formats up to 2700 x 1600 mm for architectural and automotive glass.
Specifications
- Glass thickness
- 1.2 to 10 mm
- Minimum glass size
- 400 x 300 mm
- Maximum glass size
- 2700 x 1600 mm (LEL); 2500 x 4000 mm (SEL)
- Productivity
- up to 300 pieces per hour
- Working table height
- 950 mm (+/- 25 mm)
Key features
- Belt transport system with automatic centring
- Long edge and short edge leading configurations
- Specially treated aluminium printing table
- Squeegee and flood bar group on tempered guides with proportional pressure control
- Independent squeegee and flood bar speed adjustment
About the J Series

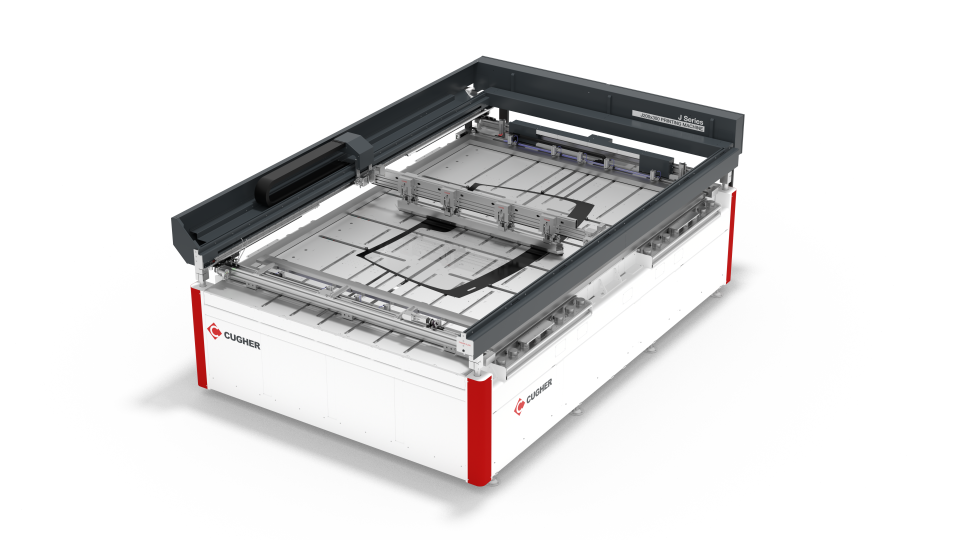

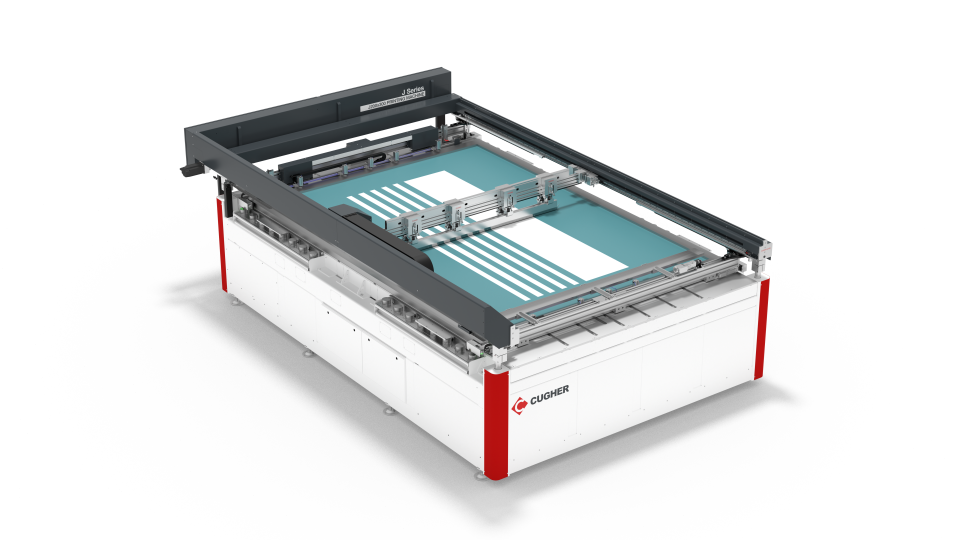

The J Series fully automatic silk screen printing machine is made up of an entry and pre alignment conveyor, the printing machine body and an exit synchronised conveyor. The machine has a rigid structure with a printing table in specially treated aluminium, a belt transport system and auto centring.
Available in long edge leading and short edge leading configurations, the J Series handles a very wide range of formats, from 1600 x 1000 mm up to 2700 x 1600 mm (and up to 2500 x 4000 mm short edge leading), making it equally suited to large architectural panels and automotive glass. Built from high quality, efficient materials, maintenance is reduced and simplified.
