Fast Series
Screen PrintingHigh speed home appliance printing machine with digital caliber height control, anti drip printing bridge and recipe driven changeover, up to 600 glasses per hour.
Specifications
- Maximum glass size
- 800 x 1000 mm
- Productivity
- up to 600 glasses per hour
- Cycle time
- 6 seconds
- Height position precision
- better than 0.1 mm
Key features
- Digital caliber height control with precision better than 0.1 mm
- Anti drip system on the printing bridge
- Constant, recipe set squeegee and scraper pressure
- Frame extraction without losing the registers, with pneumatic locking
- Printing head raises up to 500 mm for cleaning and maintenance
- Belted aluminium table handles drilled glass
About the Fast Series

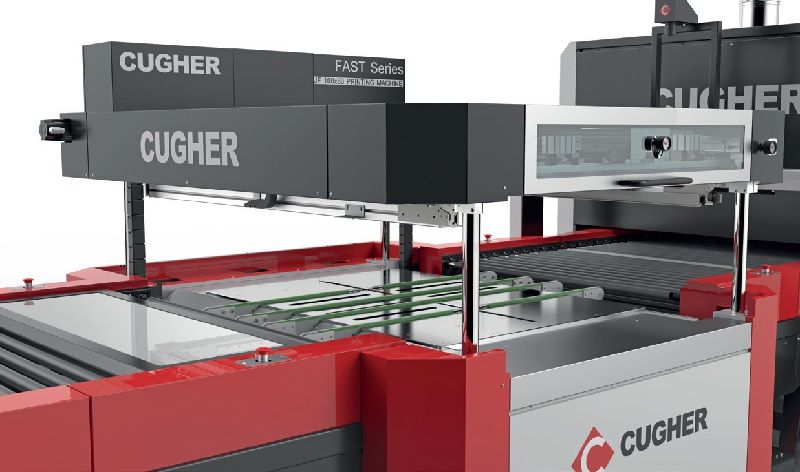

The Fast Series is a high speed printing machine for the home appliance industry. The printing bridge carries an anti drip system and keeps squeegee bar and scraper pressure constant, set from the recipe on the operator panel. Independent speeds can be set for the squeegee bar and scraper, and frame registration is quick and micrometric in every direction, including rotation.

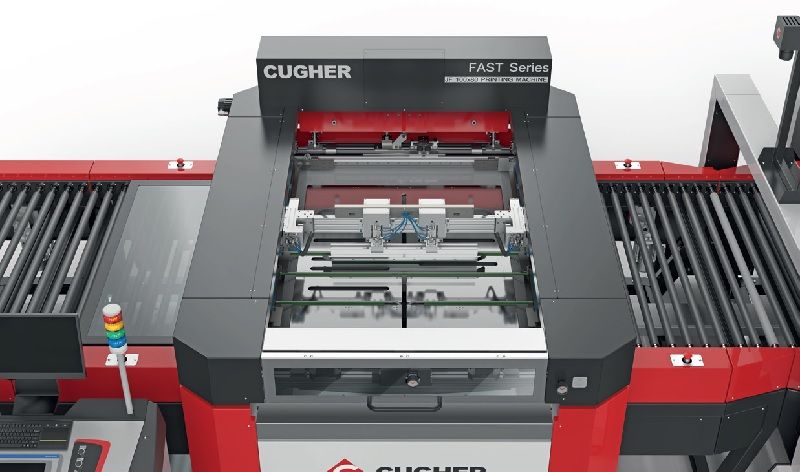

Cugher describes the height control as working like a digital caliber: the vertical movement of the printing bridge is controlled with position precision better than 0.1 mm, with the zero set by the perfectly flat printing table and the target height entered on the touch panel. The anodised, ground aluminium printing table is fitted with belts so even drilled glass can be handled, and the head raises up to 500 mm for easy cleaning and maintenance.
With a maximum glass size of 800 x 1000 mm the Fast Series prints up to 600 glasses per hour at a six second cycle, and recipes allow quick setup and changeover.
