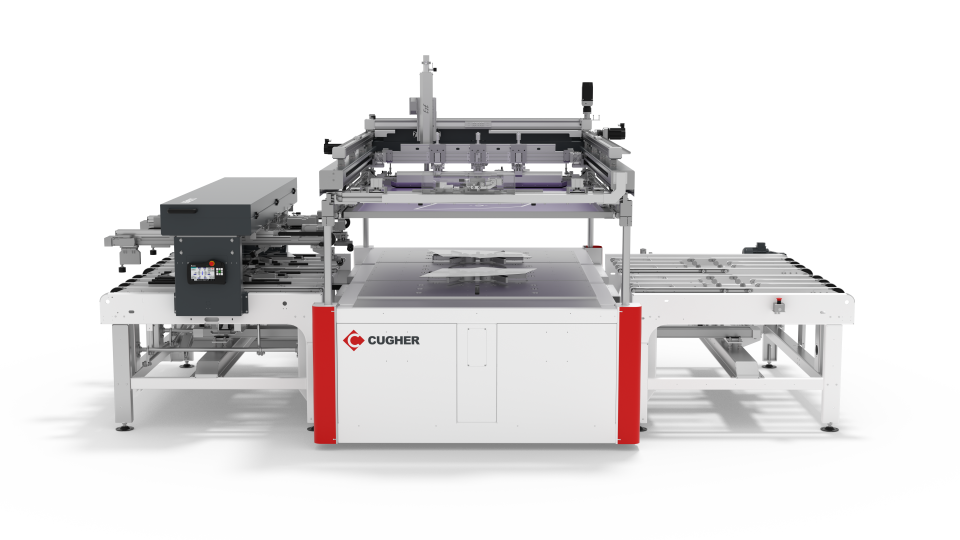

Double Glasses Series
Screen PrintingThe G DLE (Double Lite Edition) prints two small glasses or one large glass on a single line, with an 18 axis centring system for highly shaped automotive glass.
Specifications
- Glass thickness
- 1.4 to 10 mm
- Maximum glass size (single, LEL)
- up to 2500 x 1600 mm
- Maximum glass size (double, SEL)
- up to 1000 x 1450 mm
- Double glass productivity
- up to 800 pieces per hour
- Centring repeatability
- 0.08 mm
Key features
- Prints two small glasses or one large glass on a single machine
- 18 axis automatic centring for extremely shaped glasses
- Centring repeatability of 0.08 mm
- Pin positions and closure sequence stored in the recipe
- Glass dimension control with out of range alarm
About the Double Glasses Series

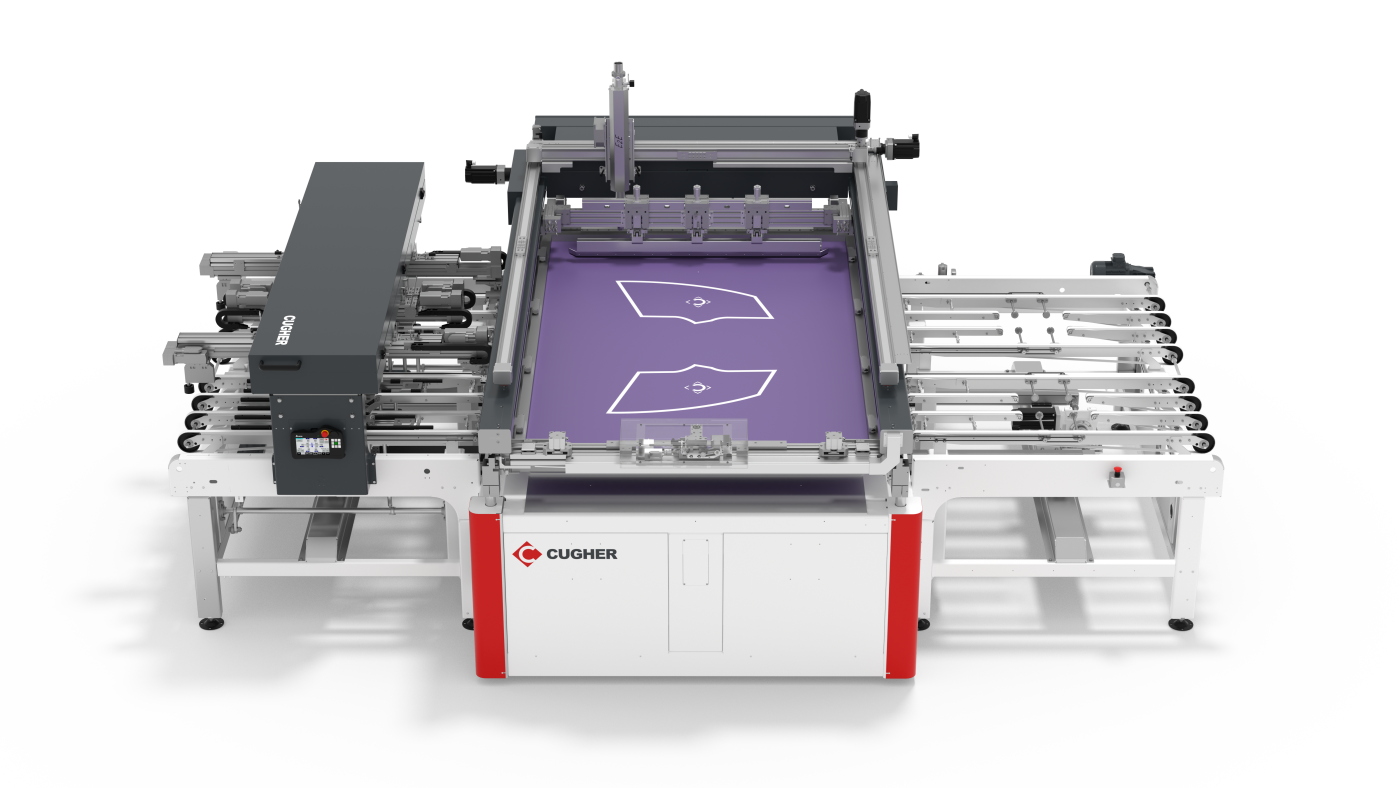

The G Series DLE (Double Lite Edition) is engineered for maximum flexibility on a single printing line. One machine can print two small glasses (sidelites or vents) at the same time, or one large single glass such as a backlite, windshield or sunroof.
Its outstanding centring system uses 18 axes to perfectly centre even extremely shaped glasses, with repeatability of 0.08 mm. Each pin position is stored in the recipe and the operator can define the pin closure sequence for difficult shapes, with glass dimension control and an out of range alarm. Running two different glass types on the same line (for example sidelites and backlites) saves significant factory space and cuts cost for a faster return on investment. The DLE is available in sizes from vents up to windshields.
