Compact Series
Screen PrintingFlexible screen printing machine for squared and rectangular glass, usable stand alone, semi automatic or as the heart of a full automatic line.
Specifications
- Glass thickness
- 3 to 12 mm
- Maximum glass size
- 1300 x 700 mm
- Minimum glass size (full auto)
- 100 x 30 mm
- Productivity
- up to 720 pieces per hour
Key features
- Stand alone, semi automatic or full automatic configurations
- All controls on the operator side
- Horizontally extractable printing table
- Automatic snap off adjustment
- Fine screen registration on X, Y and Z axes
- Raising printing head for easy cleaning

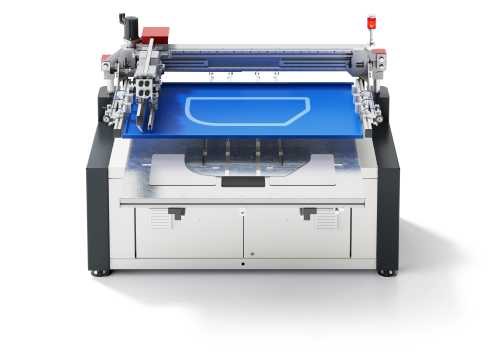

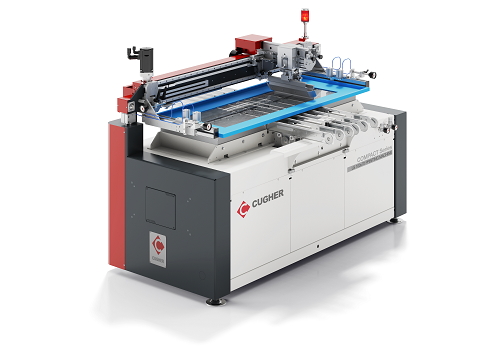

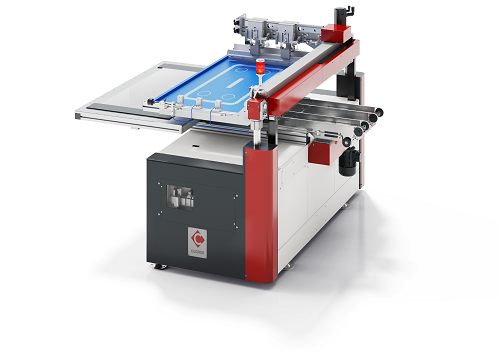

About the Compact Series
The Compact Series can be used as a stand alone printing machine or become the heart of a full automatic printing line. It is a real solution for high productivity demands while remaining easy to use, and is the perfect choice for large batches of squared and rectangular glass that has to be printed quickly and precisely.
All controls sit on the operator side. The printing table moves horizontally so it can be fully extracted from the machine body, the snap off adjustment is automatic, and the screen position can be finely registered on the X, Y and Z axes. Raising the printing head allows easy inspection and quick screen cleaning.
Three configurations are offered: stand alone (manual loading and unloading with an extractable table), semi automatic (manual loading with automatic rear discharge on belts) and full automatic (automatic loading and unloading by belt). Productivity reaches up to 720 pieces per hour.
