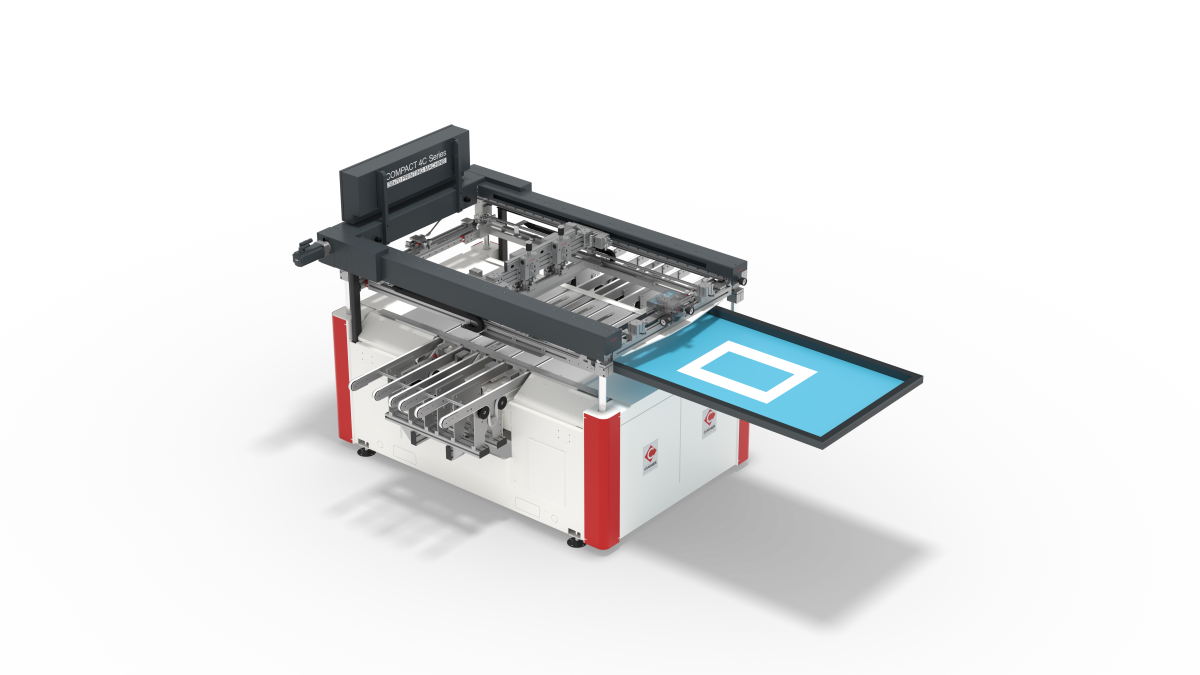

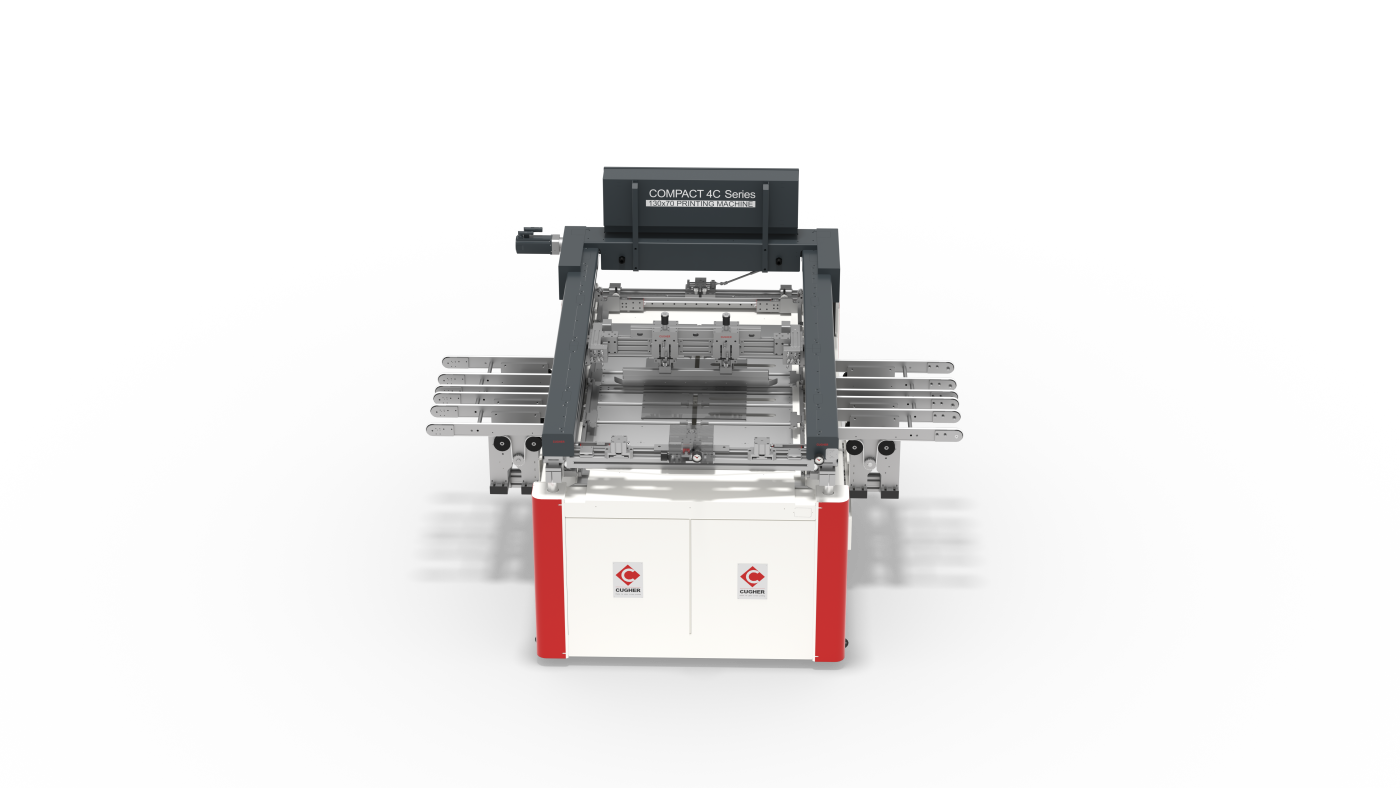

Compact 4C
Screen PrintingHigh speed evolution of the Compact Series with four columns for a wider printing head, made for cooktops and household appliance glass, including drilled glass.
Specifications
- Minimum glass size
- 150 x 50 mm
- Maximum glass size
- 1300 x 700 mm
- Productivity
- 550 pieces per hour (1144 x 692 mm glass)
- Print precision
- +/- 0.08 mm
Key features
- Four columns supporting a wider printing head
- Fully automatic belt entry with pre alignment and centring
- Printing precision of +/- 0.08 mm between pieces
- Frame cleaning and extraction without losing the register
- Edge to Edge (E2E) printing capability
- Printing bridge rotation for quick squeegee and flood bar changes
About the Compact 4C
The Compact 4C screen printing machine is the evolution of the established Compact Series, able to process larger squared and rectangular glasses for cooktops and household appliances, including drilled glass. Its four columns support a wider printing head and ensure high productivity.
The machine is fully automatic, with belt entry, pre alignment and centring on the printing table. It reaches 550 pieces per hour for glass measuring 1144 x 692 mm, with printing precision of +/- 0.08 mm between pieces. The frame can be cleaned and extracted without losing the register, the head can carry the Edge to Edge system for printing right up to the edge, and the printing bridge rotates for quick squeegee and flood bar changes. All parameters are set from the operator panel.
