PTS 325 PORTA
Saws & CuttingVertical laminated glass saw for cutting normal, laminated, fire resistant and bullet resistant glass up to 60 mm thick, with square and 45 degree cuts.
Specifications
- Machine dimensions
- 3650 x 1900 x 4600 mm
- Power supply
- 3 x 400 V (3 x 230 V), 50/60 Hz
- Motor
- 3.3 kW, 2800 rpm
- Glass thickness
- 6 mm to 60 mm
- Weight
- 1110 kg
- Noise level
- 78 dB
- Cutting speed
- 0.1 to 1.6 m/min
- Maximum cutting length
- 3250 mm
- Saw blade diameter
- 350 / 400 mm
- Cutting angle
- 45 / 90 degrees
Key features
- Cuts normal, laminated, fire resistant and bullet resistant glass
- Square cut or fixed 45 degree cut
- Frequency controlled cutting speed
- Closed circuit cooling of the cutting disc
- Three part design for easy transport and assembly
- Hot dipped zinc
- Two year warranty
About the PTS 325 PORTA

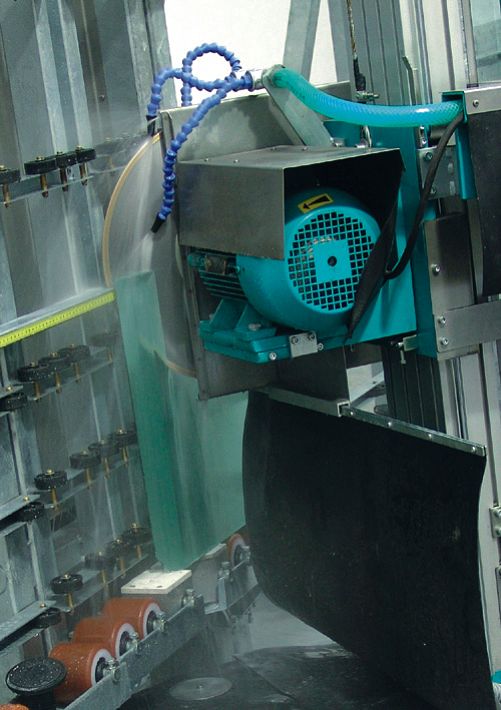

The PTS 325 PORTA is a vertical saw for cutting sheet glass up to 60 mm thick, including normal glass, laminated glass and various fire resistant and bullet resistant glasses. The glass sits on rollers at 5 degrees from vertical for easy handling, and the cutting unit travels from top to bottom at a speed set by a frequency inverter.

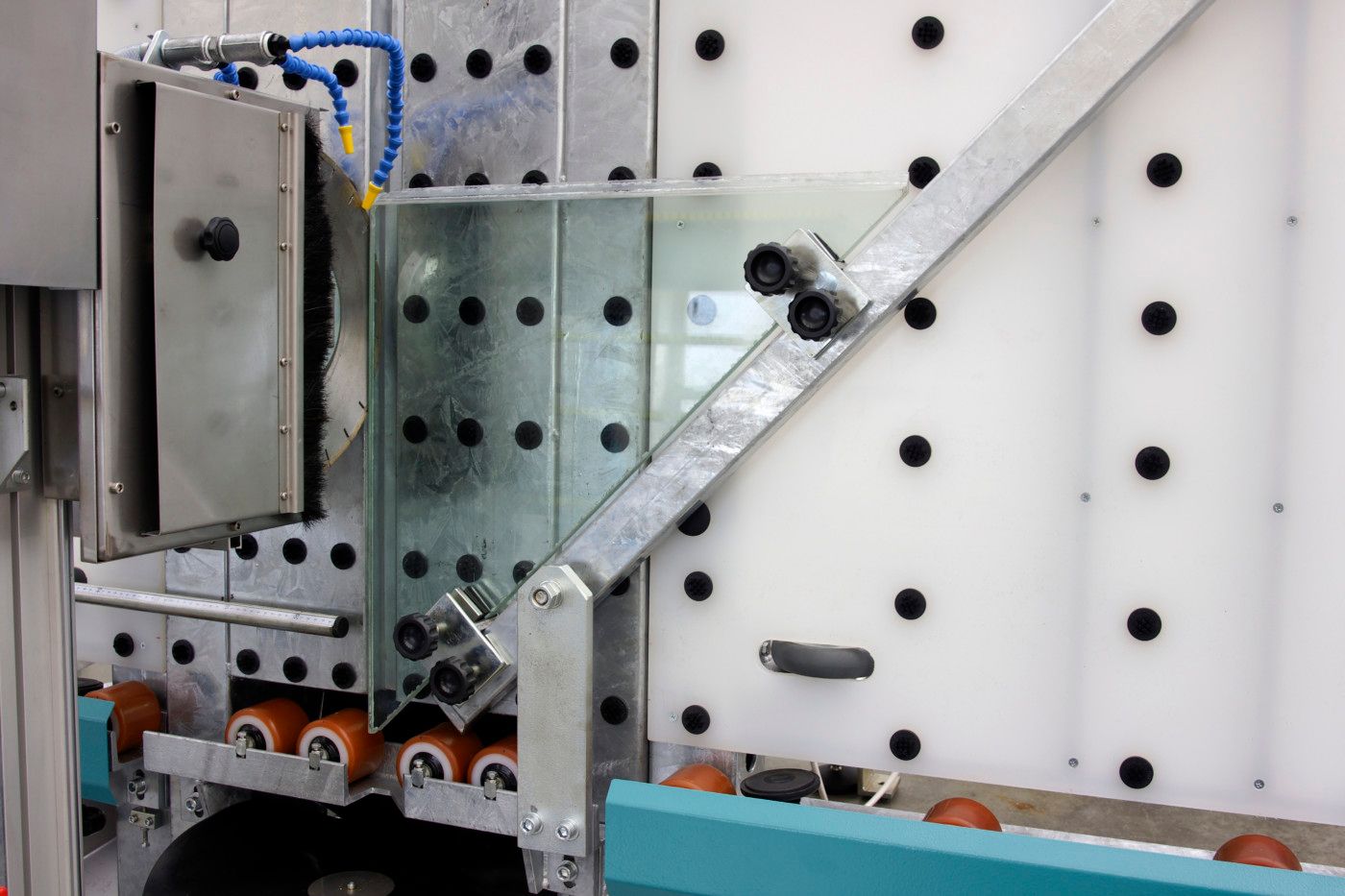

A simple mechanism switches between a square cut and a fixed 45 degree angle, and a closed circuit cools the cutting disc. The saw comes in three parts, a central unit and two side stands, which makes transport, handling and assembly straightforward, and it can be extended later by adding another side stand.
