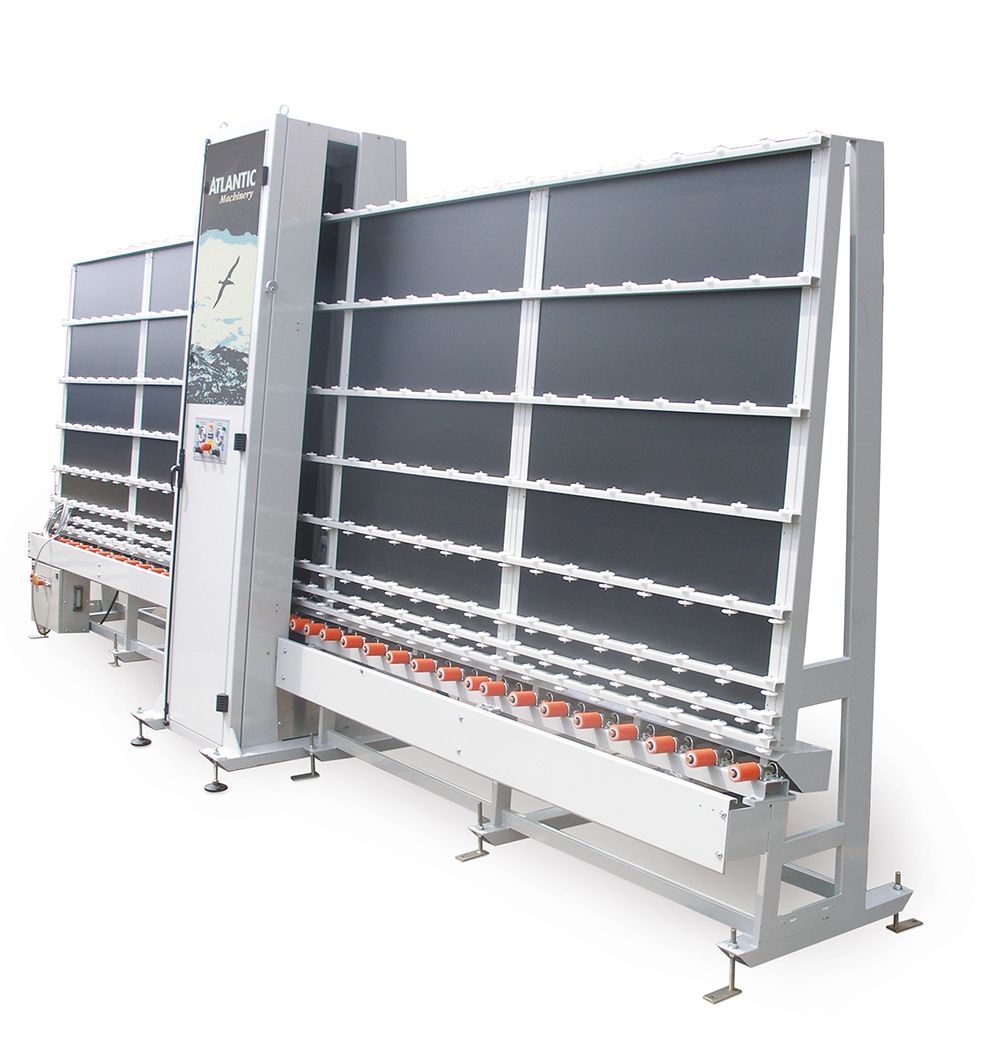

Roller Press
Atlantic

Roller Press

IGU Production

This PLC-controlled machine efficiently presses pre-assembled units with Poly-Iso-Butylene (PIB) applied to the spacer bar, creating a primary sealed unit ready for gas filling and final sealing. It's

Speak to Sales Request a Call Back

Specifications

Type
Vertical roller press with parallel rubber rollers
Control
PLC; sensors detect glass height and adjust roller pressure
Speed
20 to 45 seconds per sealed unit
Available press heights
1.6 m, 2 m, 2.5 m
Rack sizes
2000 mm, 2800 mm, 3600 mm

Key features

  • Vertical press with parallel rubber rollers.
  • Racks are fully conveyor driven with bevel gear drive.
  • Sensors detect the height of the glass and the roller pressure is adjusted via the plc controller.
  • Speed 20-45sec per sealed unit.
  • Vertical edges are pressed for a longer duration to help achieve an even seal.
  • Available press heights 1.6mtr, 2mtr, 2.5mtr.
  • Rack size available 2000mm, 2800mm, 3600mm.

Brochures

About the Roller Press

This PLC-controlled machine efficiently presses pre-assembled units with Poly-Iso-Butylene (PIB) applied to the spacer bar, creating a primary sealed unit ready for gas filling and final sealing. It's versatile, accommodating structural foam spacer bars like 'Superspacer'. The press seamlessly integrates into a semi-automatic line or operates as a standalone unit at the end of an existing glass washer unit.

  • Vertical press with parallel rubber rollers. - Racks are fully conveyor driven with bevel gear drive. - Sensors detect the height of the glass and the roller pressure is adjusted via the plc controller. - Speed 20-45sec per sealed unit. - Vertical edges are pressed for a longer duration to help achieve an even seal. - Available press heights 1.6mtr, 2mtr, 2.5mtr. - Rack size available 2000mm, 2800mm, 3600mm.
  • Alignment racks for spacer bar positioning - Tilting table to drop large units to the horizontal for sealing
