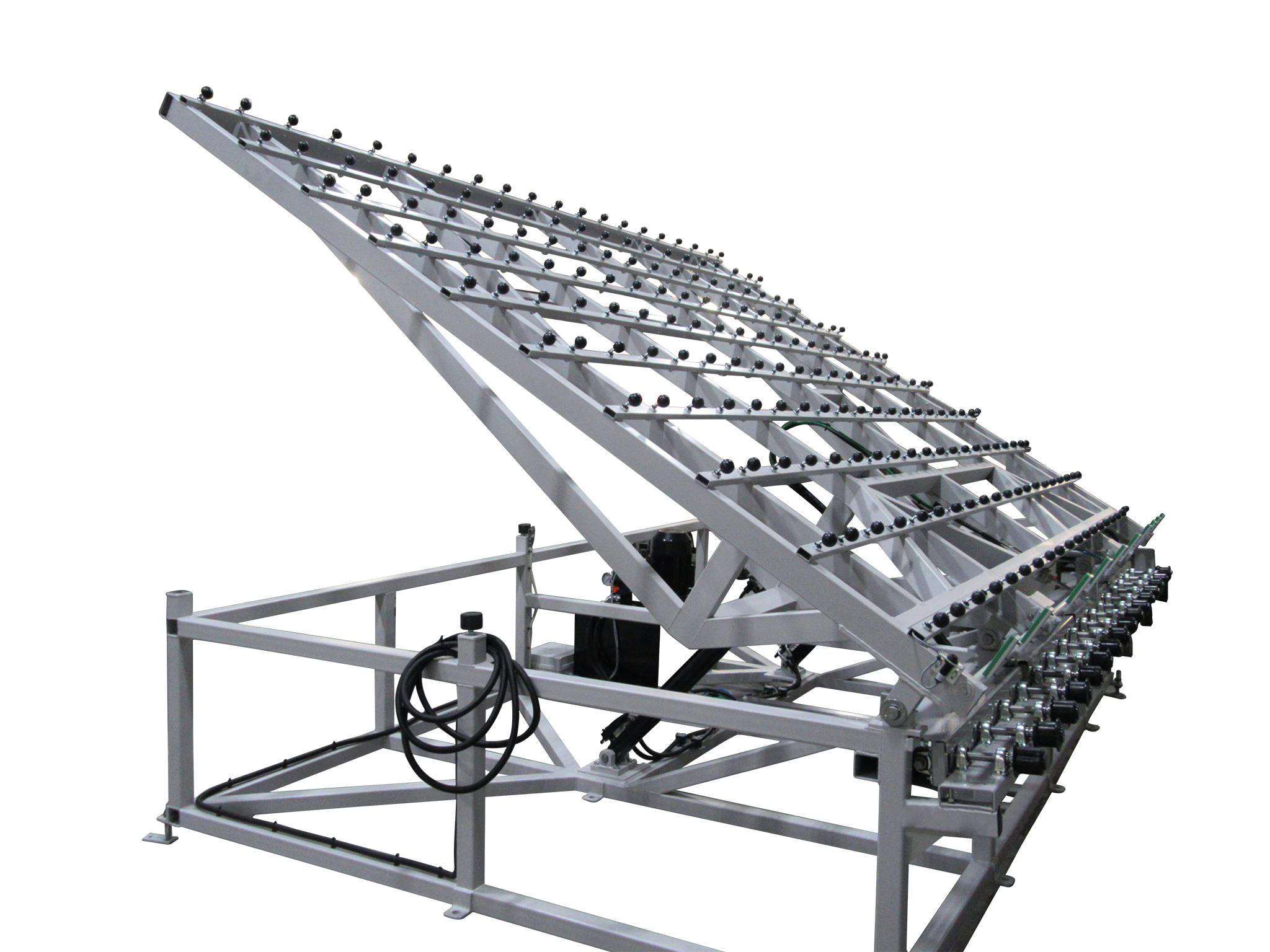

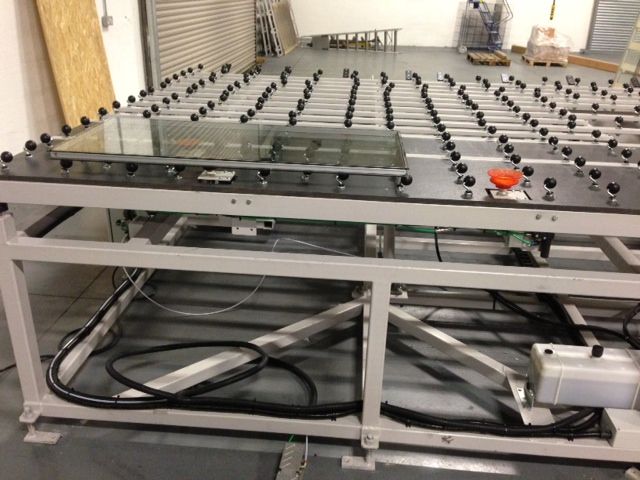

Hydraulic Tilting Table
IGU ProductionThis PLC-controlled machine efficiently presses pre-assembled units with Poly-Iso-Butylene (PIB) applied to the spacer bar, creating a primary sealed unit ready for gas filling and final sealing. It's
Specifications
- Type
- Hydraulic tilting table
- Operation
- Hydraulic rams with integrated sealing suction cups
- Glass height (horizontal)
- 1000 mm
- Glass height (vertical)
- 760 mm
- Standard table
- Suits glass 3 m x 2 m, 750 kg loading
- Services
- 16 amp 3 phase and compressed air
Key features
- Safe and solid operation using hydraulic rams
- Sealing suction cups integrated into the table
- Can be used with any Atlantic Washer and Glass Assembly Line
- Multi directional rubber rollers
- Glass height horizontal 1000mm
- Glass height vertical 760mm
- Standard table to suit glass 3mtr x 2mtr, 750kg loading
- 16 Amp 3phase and compressed air required.
Options
- Sizes up to 5 mtr x 3mtr
- Choice of sealing cup positions to suit factory layout
- Reconditioned units sometimes available.
Brochures
About the Hydraulic Tilting Table
This PLC-controlled machine efficiently presses pre-assembled units with Poly-Iso-Butylene (PIB) applied to the spacer bar, creating a primary sealed unit ready for gas filling and final sealing. It's versatile, accommodating structural foam spacer bars like 'Superspacer'. The press seamlessly integrates into a semi-automatic line or operates as a standalone unit at the end of an existing glass washer unit.
- Safe and solid operation using hydraulic rams - Sealing suction cups integrated into the table - Can be used with any Atlantic Washer and Glass Assembly Line - Multi directional rubber rollers - Glass height horizontal 1000mm - Glass height vertical 760mm - Standard table to suit glass 3mtr x 2mtr, 750kg loading - 16 Amp 3phase and compressed air required.
- Sizes up to 5 mtr x 3mtr - Choice of sealing cup positions to suit factory layout - Reconditioned units sometimes available.
