Smartfill 1, 2 and 4 Lines
Gas FillersThe Smartfill-1 is a single line 30 litre a minute machine designed for the production of Argon gas filled insulated glass units. The Smartfill-1 is the first machine in the Inagas range to be equippe
Specifications
- Type
- Argon gas filler (Smartfill 1 / 2 / 4)
- Control
- 250 mm touch screen, auto and manual calibration
- Flow rate
- Up to 30 litres per minute per line
- Filling
- One hole or two hole options, variable overfill, data logging
- Dimensions (Smartfill 1 and 2)
- H 407 mm x W 540 mm x D 656 mm
- Dimensions (Smartfill 4)
- H 1516 mm x W 735 mm x D 701 mm
Key features
- Smartfill 1 & 2 Dimensions: H 407mm x W 540mm x D 656mm
- Smartfill 4 Dimensions: H 1516mm x W 735mm x D 701mm
- 250mm Touch Screen control
- Visual & audible signals on completion of fill
- Auto and manual calibration of sensor
- Ability to change gas fill percentages
- Variable overfill
- Data logging
- Flow Rate: Up to 30 litres per minute per line
- One hole or two hole filling options
- Vertical or horizontal filling options
- Alert when gas bottle empty
- Optional trolley
Options
- Fill times
- Smartfill-4 - Unit size 1000cm x 1000mm x 15.5mm \| Two hole filling 65 seconds \| One hole filling 95 seconds

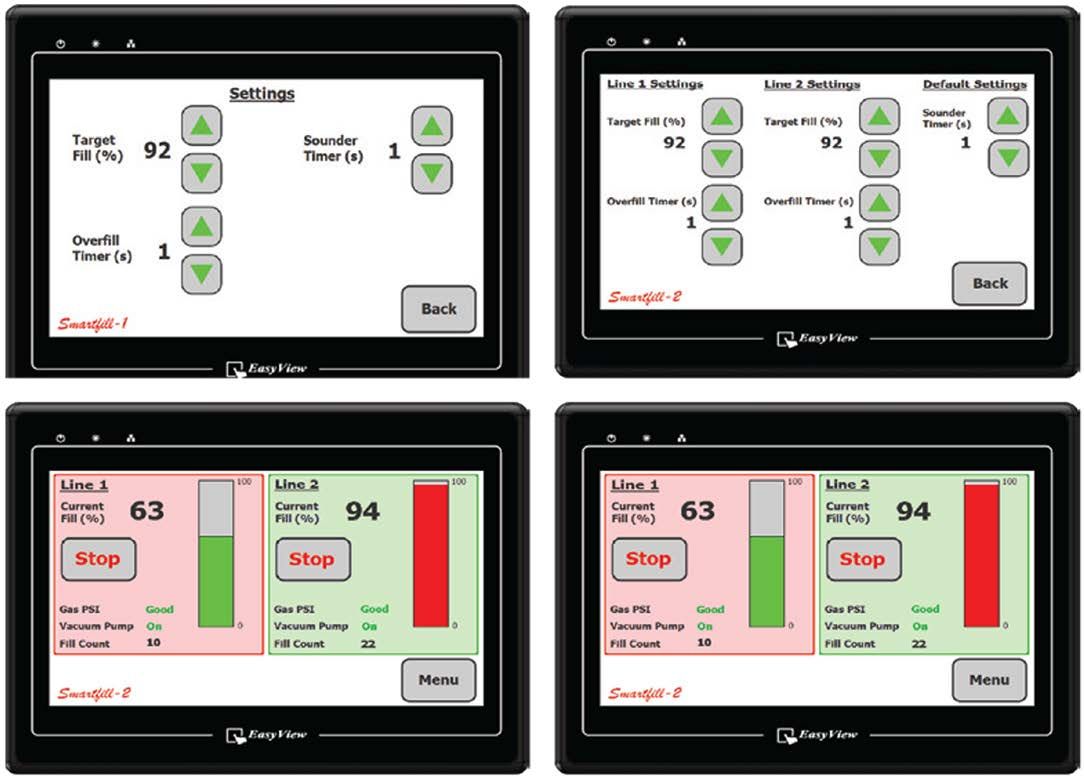

- Touch Screens
Brochures
About the Smartfill 1, 2 and 4 Lines

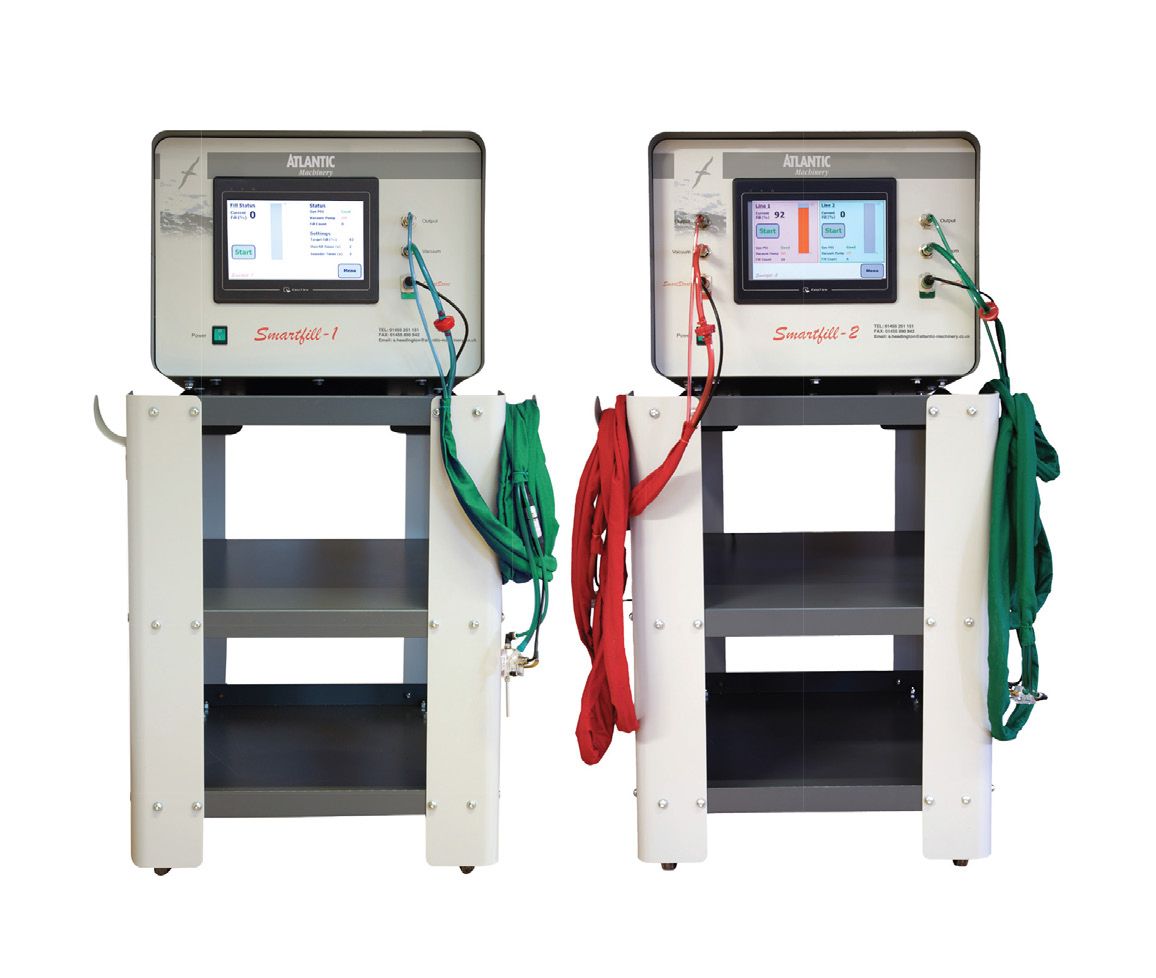

The Smartfill-1 is a single line 30 litre a minute machine designed for the production of Argon gas filled insulated glass units. The Smartfill-1 is the first machine in the Inagas range to be equipped with the unique Smart start lance system which can be used either to gas fill using the one or two hole filling method.
The Smartfill-2 is a dual line version of the Smartfill-1 designed for medium to high production of Argon gas filled insulated glass units. Each line operates independently from one another with a combined maximum flow rate of 60 litres per minute using the Smart start lance system.
The Smartfill-4 is a four line machine designed for high production of Argon gas filled insulated glass units. Each line operates independently from one another with a combined maximum flow rate of 120 litres per minute using the Smart start lance system.
