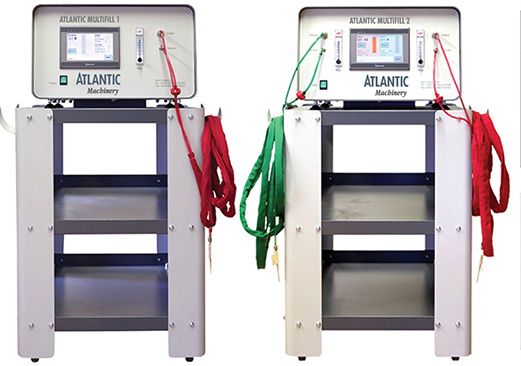

Multifill Argon/Krypton Gas Fillers
Gas FillersThe Multifill range is versatile, compatible with all inert gases and mixtures for insulated glass. Multifill-1 provides adjustable flow control (1-15 liters/min), optimizing Argon filling for speed w
Specifications
- Type
- Argon / krypton gas filler (Multifill)
- Control
- 175 mm touch screen, auto and manual calibration
- Flow rate
- Up to 15 litres per minute per line
- Filling
- Two hole, vertical filling, variable overfill, data logging
- Dimensions
- H 350 mm x W 540 mm x D 656 mm
Key features
- Dimensions: H 350mmxW 540mmxD 656mm
- 175mm Touch Screen control
- Visual & audible signals on completion of fill
- Auto and manual calibration of sensor
- Ability to change gas fill percentages
- Variable overfill
- Data logging
- Flow Rate: Up to 15 litres per minute per line
- Two hole filling
- Vertical filling
- Ability to vary gas flow
- Alert when gas bottle empty
- Available with either 1 or 2 filling lines
- Optional mobile trolley
- Optional 1.5mm filling lance for narrow units
Options
- Fill times
- Two hole filling 114 seconds,12 litres per minute
- Touch Screens
- A Multifill-1 is fully upgradeable to Multifill-2 specifications at a later time.
- Options
About the Multifill Argon/Krypton Gas Fillers
The Multifill range is versatile, compatible with all inert gases and mixtures for insulated glass. Multifill-1 provides adjustable flow control (1-15 liters/min), optimizing Argon filling for speed while conserving expensive gases like Krypton or Xenon. Multifill-2, the dual-line version, allows simultaneous filling with two gases, offering flexibility and efficiency in gas selection and flow control.
- Dimensions: H 350mmxW 540mmxD 656mm - 175mm Touch Screen control - Visual & audible signals on completion of fill - Auto and manual calibration of sensor - Ability to change gas fill percentages - Variable overfill - Data logging - Flow Rate: Up to 15 litres per minute per line - Two hole filling - Vertical filling - Ability to vary gas flow - Alert when gas bottle empty - Available with either 1 or 2 filling lines - Optional mobile trolley - Optional 1.5mm filling lance for narrow units
Unit size 1000mm x 1000mm x 15.5mm - Two hole filling 114 seconds,12 litres per minute
Interested in the Multifill Argon/Krypton Gas Fillers?
Speak to sales about pricing, lead times, and installation. We can also arrange demonstrations.
