Systron pro vertical CNC edge processing centre
Systron

Systron pro

Edging & Polishing

Vertical CNC edge processing centre for seaming, grinding and polishing outer contours to exact dimensions, now with optional helix drilling.

Speak to Sales Request a Call Back

Specifications

Type
Edge processing centre
Maximum pane size
2500, 2700, 3500, 5000, 6000 or 9000 mm (configurable)
Machining tolerance
Plus or minus 0.2 mm maximum over the entire product
Tools per holder
Up to 3 (depending on glass thickness)

Brochures

About the Systron pro

The Systron pro is a vertical CNC processing centre engineered for exterior contour machining, now also available with optional helix drilling. Its robust design and proprietary systems give exceptional accuracy and fast throughput, while the open, barrier free layout gives operators an ergonomic working posture and convenient access to all key machine components.

Outer contours in perfection:

  • Seaming of outer contours
  • Grinding of outer contours
  • Polishing of outer contours
  • Exact dimensions guaranteed

Systron sets new standards in CNC glass processing:

  • Minimal machining tolerances, max. +/- 0.2 mm across the entire product size
  • Maximum flexibility for contours and special shapes
  • No set up times between different glass thicknesses and types
  • Very rigid, vibration free construction for the highest processing quality, including oblique edges and radii
  • Seaming with corner dubbing at maximum speed
  • No mechanical touch when processing coated glass, so it is perfect for low E glass
  • All components come exclusively from premium manufacturers

The processing spindle ensures an optimal grinding and polishing image, and up to three tools can be mounted per tool holder depending on glass thickness, with ample power reserves for all kinds of processing. The patented water cushion follows the glass surface and ensures continuous tool cooling.

Highlights:

  • Constant polishing quality through precisely controlled polishing pressure
  • Arris parallelism guaranteed by patented water cushion guidance
  • High pressure tool cooling over the entire tool circumference
  • Automatic sharpening, profiling and dressing of the tools
  • Automatic positioning of glass sheets, also for special shapes
  • Continuously protected suction cups
  • Intuitive graphical machine interface

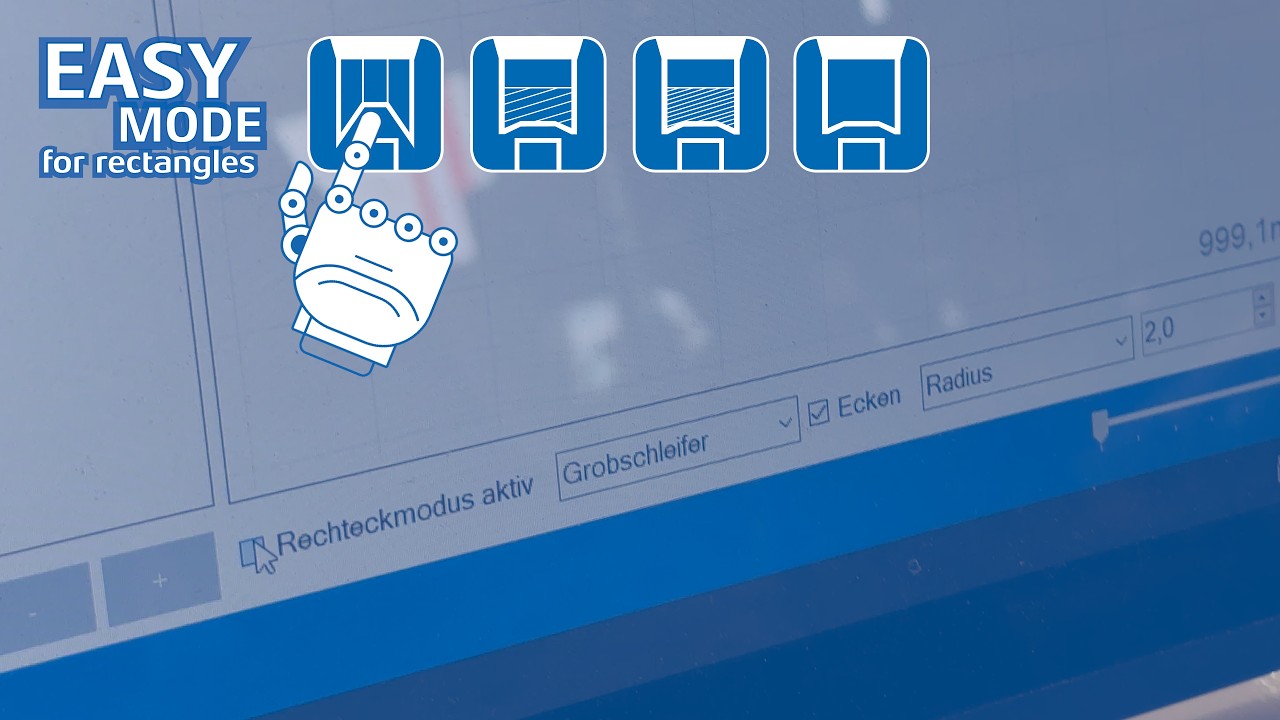

  • Optional EASY MODE for automatic seaming, rough grinding, fine grinding and polishing

Watch

The Systron pro in action
