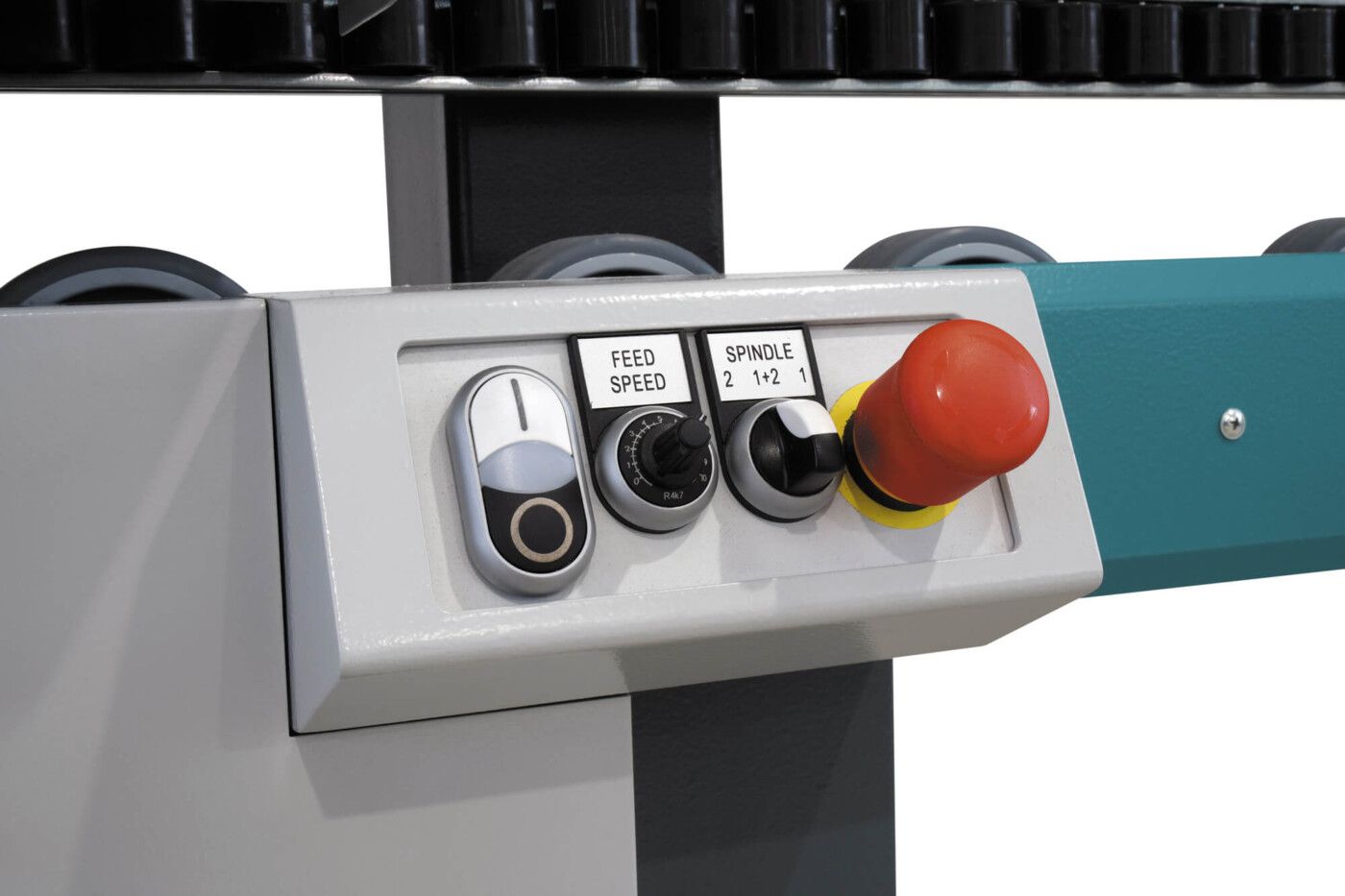

BTS 02 GAMMA PLUS
Edging & PolishingLarger double spindle vertical edging machine with a variable speed conveyor, grinding and polishing glass from 2 mm to 16 mm in one pass at up to 6 m per minute.
Specifications
- Machine dimensions
- 4580 (5880) x 850 x 2160 mm
- Power supply
- 3 x 400 V (3 x 230 V), 50/60 Hz
- Motor
- 3.3 kW, 2800 rpm
- Glass thickness
- 2 mm to 16 mm
- Weight
- 540 kg
- Noise level
- 76 dB
- Wheels
- 2 + 2
- Wheel adjusting angle
- 0 to 8 degrees
- Grinding speed
- 0.5 to 6 m/min (optionally 0.5 to 12 m/min)
- Minimum circle size
- 600 mm
- Minimum glass size
- 150 x 200 mm
Key features
- Grinds and polishes in one operation
- Variable conveyor that adapts to glass thickness
- Grinding speed 0.5 to 6 m per minute, optionally up to 12
- Processes glass from 2 mm thick
- Two wheels on one spindle
- Mobile design
- Two year warranty
About the BTS 02 GAMMA PLUS
The BTS 02 GAMMA PLUS is a double spindle vertical edging machine for grinding and polishing the flat or round peripheral edges of sheet glass and mirrors, built on a longer frame for larger work. Water cooled diamond grinding and polishing wheels finish the edge in a C profile, trapezial or flat shape in a single operation.
A variable speed conveyor adapts automatically to the thickness of the glass, with grinding speed adjustable from 0.5 to 6 m per minute (optionally up to 12). It processes glass from 2 mm thick and keeps the cost per metre of polished edge low.
