BTS 02 GAMMA
Edging & PolishingDouble spindle vertical edging machine with a variable speed conveyor, grinding and polishing glass from 2 mm to 16 mm in one pass at up to 6 m per minute.
Specifications
- Machine dimensions
- 3330 (4630) x 850 x 1720 mm
- Power supply
- 3 x 400 V (3 x 230 V), 50/60 Hz
- Motor
- 3.3 kW, 2800 rpm
- Glass thickness
- 2 mm to 16 mm
- Weight
- 440 kg
- Noise level
- 76 dB
- Wheels
- 2 + 2
- Wheel adjusting angle

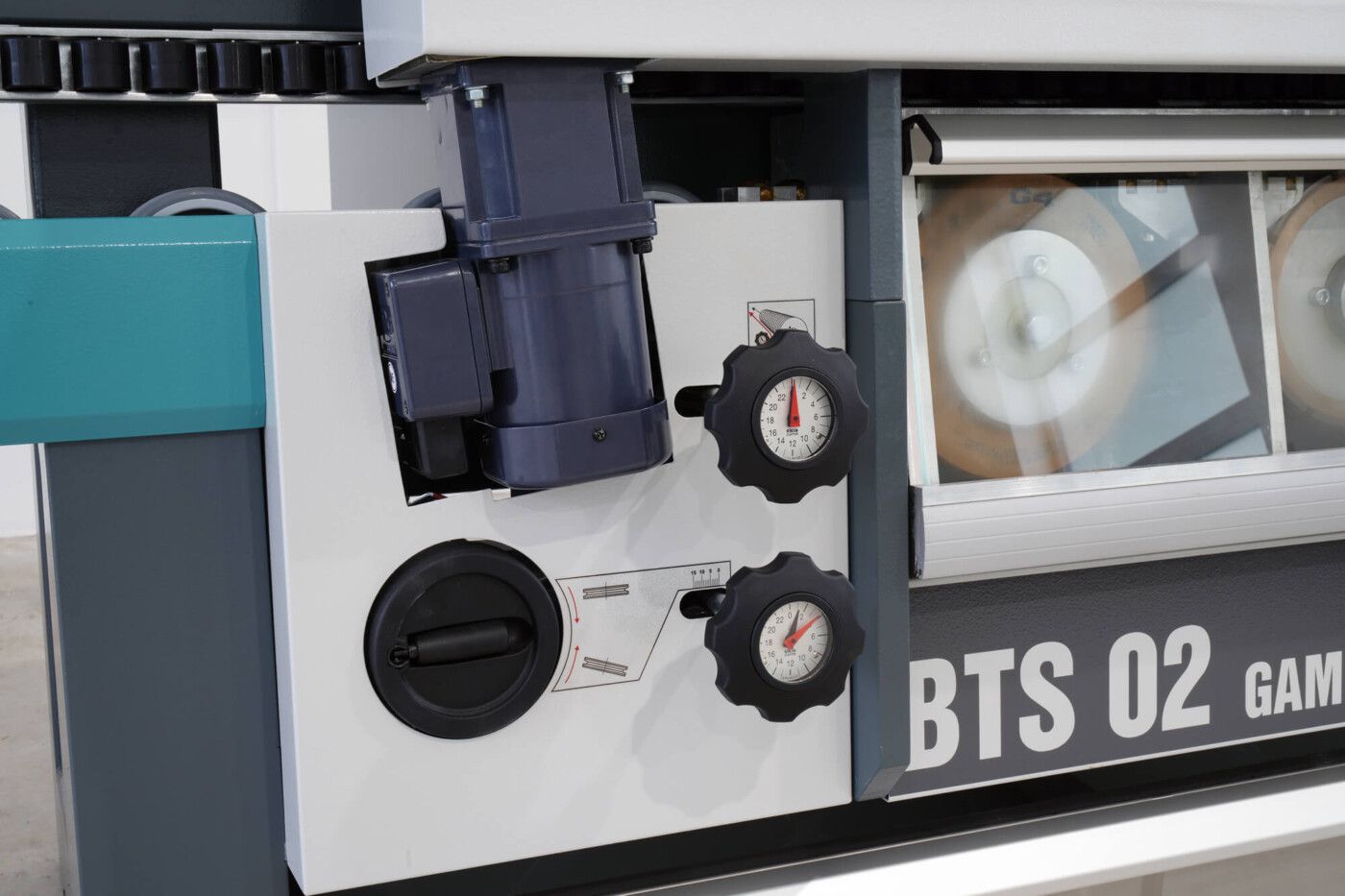

- 0 to 8 degrees
- Grinding speed
- 0.5 to 6 m/min (optionally 0.5 to 12 m/min)
- Minimum circle size
- 600 mm
- Minimum glass size
- 150 x 200 mm
Key features
- Grinds and polishes in one operation

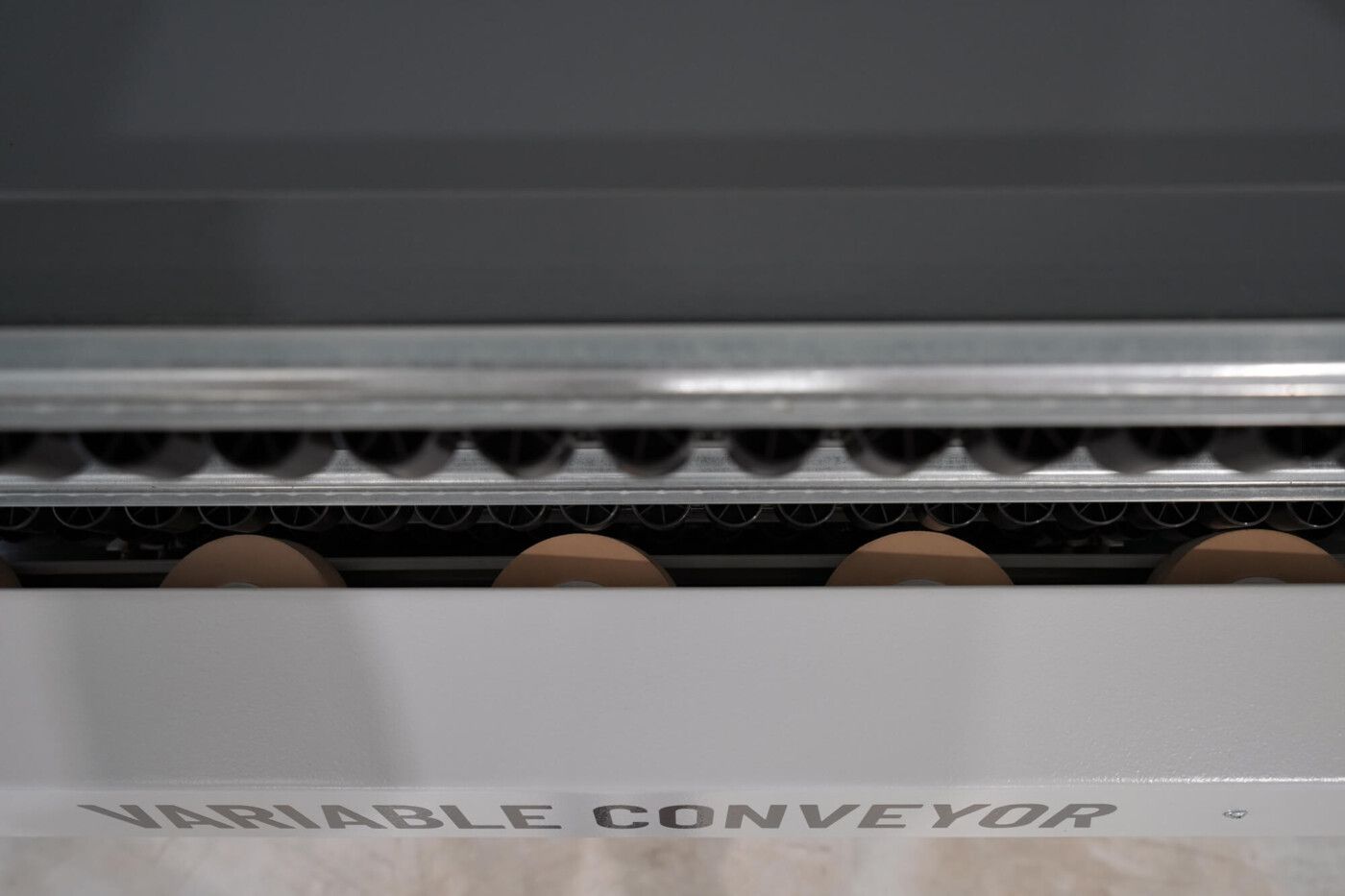

- Variable conveyor that adapts to glass thickness
- Grinding speed 0.5 to 6 m per minute, optionally up to 12
- Processes glass from 2 mm thick
- Two wheels on one spindle
- Mobile design
- Two year warranty
About the BTS 02 GAMMA
The BTS 02 GAMMA is a double spindle vertical edging machine for grinding and polishing the flat or round peripheral edges of sheet glass and mirrors. Water cooled diamond grinding and polishing wheels work the edge in a C profile, trapezial or flat finish, all in a single operation.
A variable speed conveyor adapts automatically to the thickness of the glass, with grinding speed adjustable from 0.5 to 6 m per minute (optionally up to 12). It processes glass from 2 mm thick and keeps the cost per metre of polished edge low.
