Sulak
VTS 04 L-BOXER MAXI
Drilling MachinesLarge format double sided drilling machine on a robust frame, with motorised two speed travel and a 1140 mm drill depth for glass up to 25 mm thick.
Specifications
- Machine dimensions
- 4460 x 1100 x 3300 mm
- Power supply
- 3 x 400 V (1 x 230 V) (3 x 230 V), 50/60 Hz
- Motor
- 1.8 kW, 550 to 3900 rpm
- Glass thickness
- 3 mm to 25 mm
- Weight
- 845 kg
- Drilling diameter
- 5 mm to 100 mm
- Drilling depth
- 1140 mm
- Minimum glass size
- 120 x 50 mm
- Drill bit length
- 75 mm
- Noise level
- 75 dB
Key features
- One handed ergonomic operation
- Motorised two speed vertical adjustment
- Drill depth 1150 mm
- Robust frame for large format glass
- Power consumption only 1.8 kW
- Exact and easy control of coordinates for precise hole location
- Two year warranty

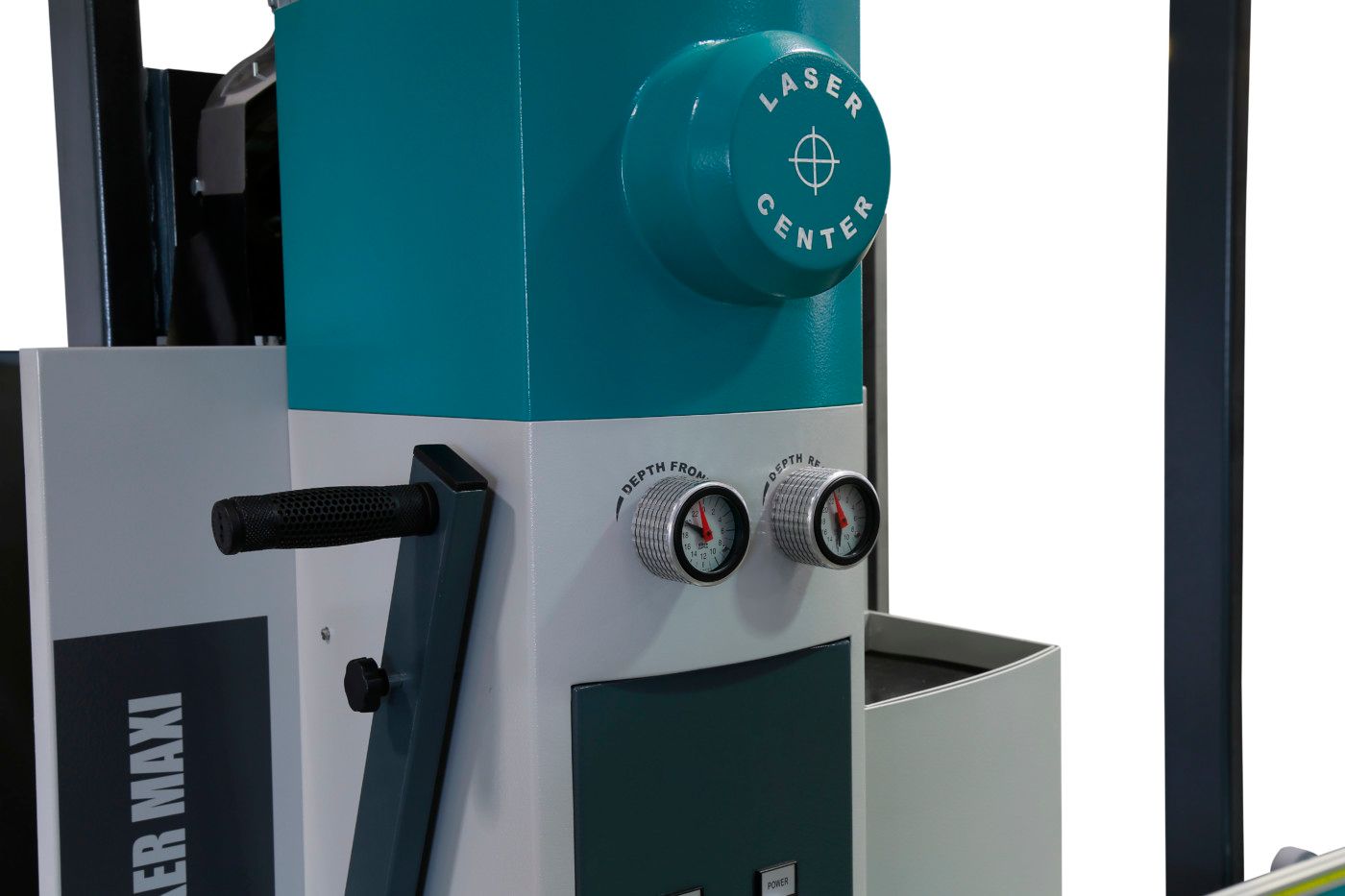

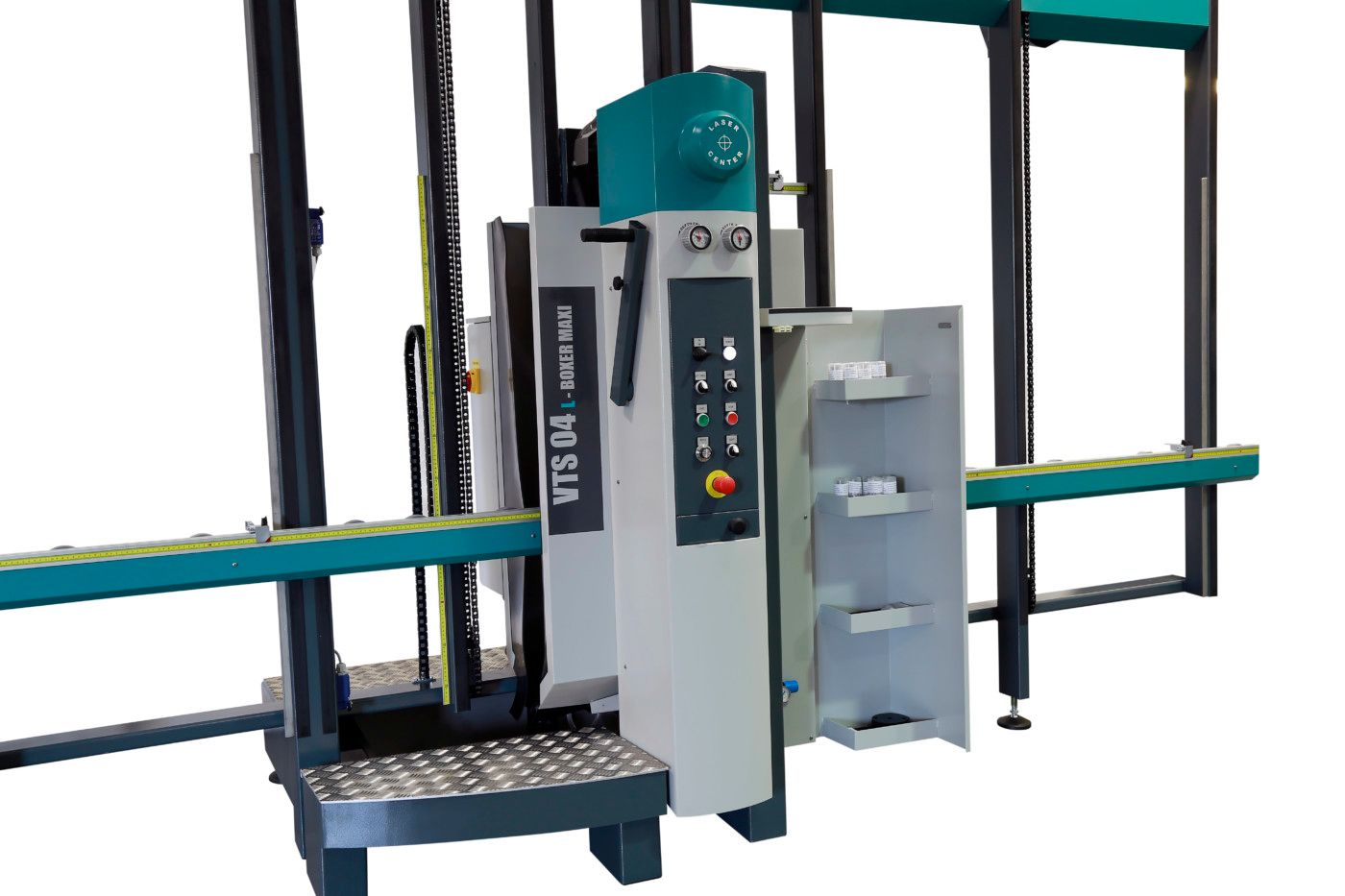

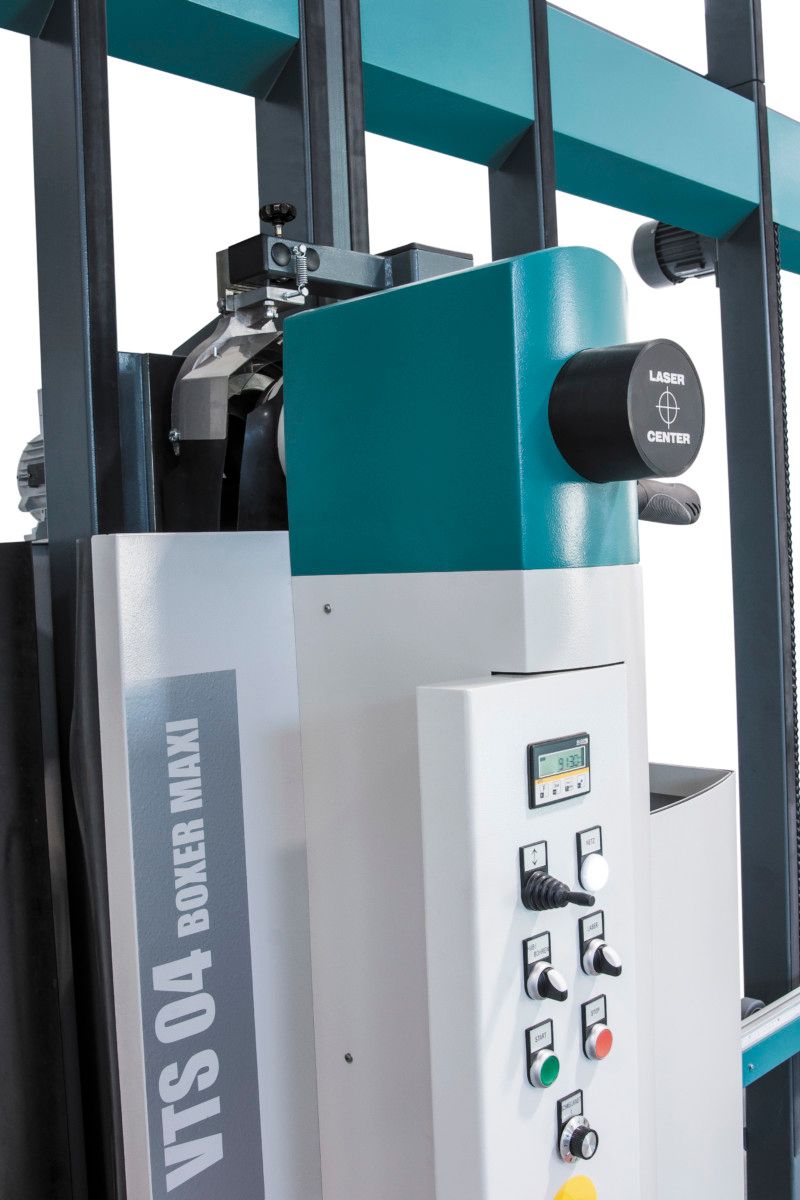

About the VTS 04 L-BOXER MAXI
The VTS 04 L-BOXER MAXI is a double sided drilling machine built on a robust frame for large format glass. Two opposed drilling heads produce clean, burr free holes from 5 mm to 100 mm in diameter, and motorised vertical travel makes handling easy.
The vertical adjustment runs at two speeds, changing automatically from fast to slow, and a well developed system of backstops increases productivity. A red laser, additional lower base and drill storage box are included.
