Sulak
VTS 04 L-BOXER
Drilling MachinesDouble sided drilling machine with motorised two speed vertical travel and a robust frame, for clean holes from 5 mm to 100 mm in glass 3 mm to 30 mm thick.
Specifications
- Machine dimensions
- 3000 x 1100 x 2300 mm
- Power supply
- 3 x 400 V (1 x 230 V) (3 x 230 V), 50/60 Hz
- Motor
- 1.8 kW, 550 to 3900 rpm
- Glass thickness
- 3 mm to 30 mm
- Weight
- 650 kg
- Drilling diameter
- 5 mm to 100 mm
- Drilling depth
- 1140 mm
- Minimum glass size
- 120 x 50 mm
- Drill bit length
- 75 mm
- Noise level
- 75 dB
Key features
- One handed ergonomic operation
- Motorised two speed vertical adjustment
- Drill depth 1150 mm
- Robust frame
- Power consumption only 1.8 kW
- Exact and easy control of coordinates for precise hole location
- Two year warranty

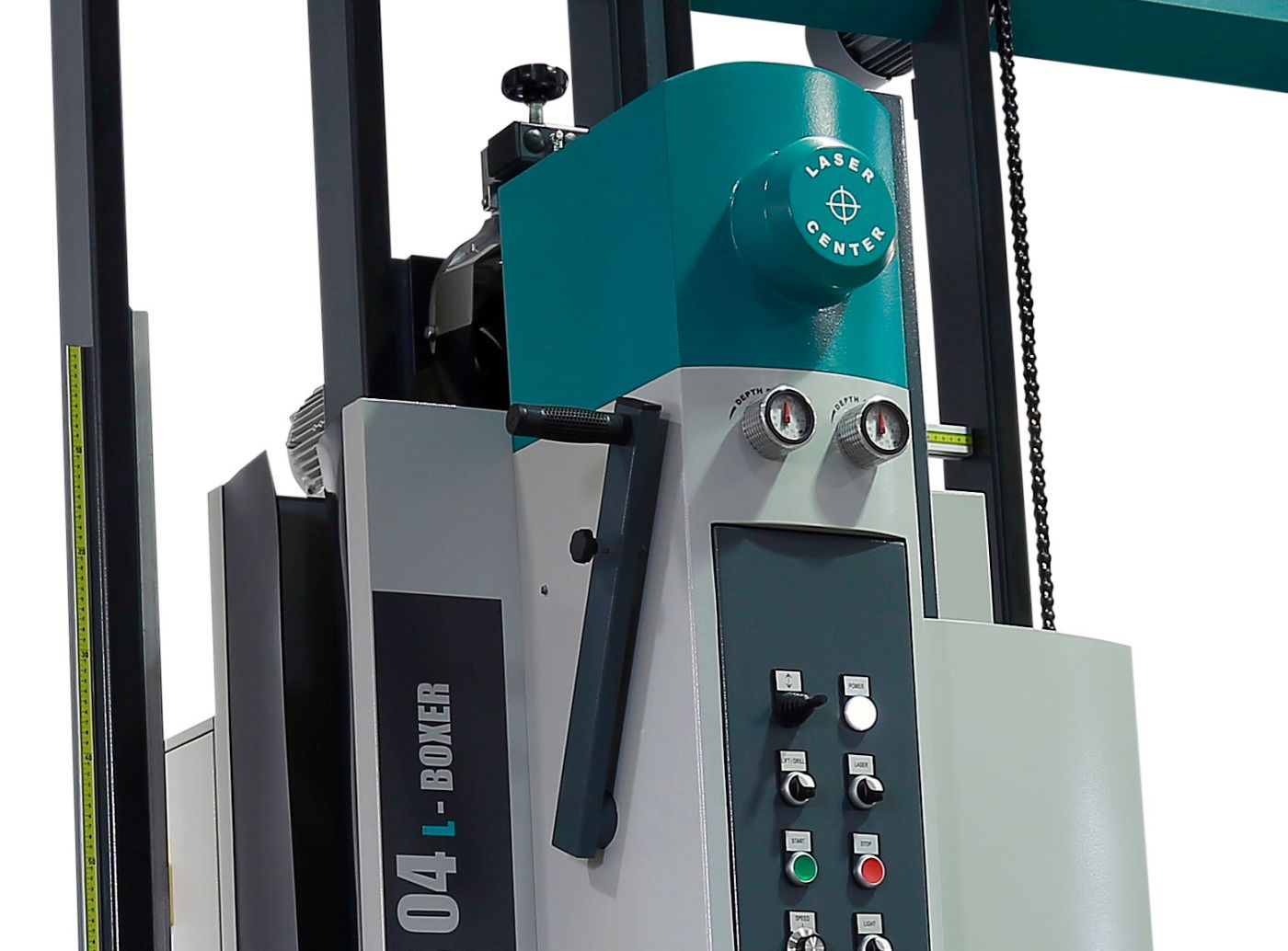

About the VTS 04 L-BOXER
The VTS 04 L-BOXER is a double sided drilling machine for drilling holes in sheet glass from 5 mm to 100 mm in diameter. Two opposed drilling heads produce a clean, burr free hole, and motorised vertical travel makes the glass easy to handle.

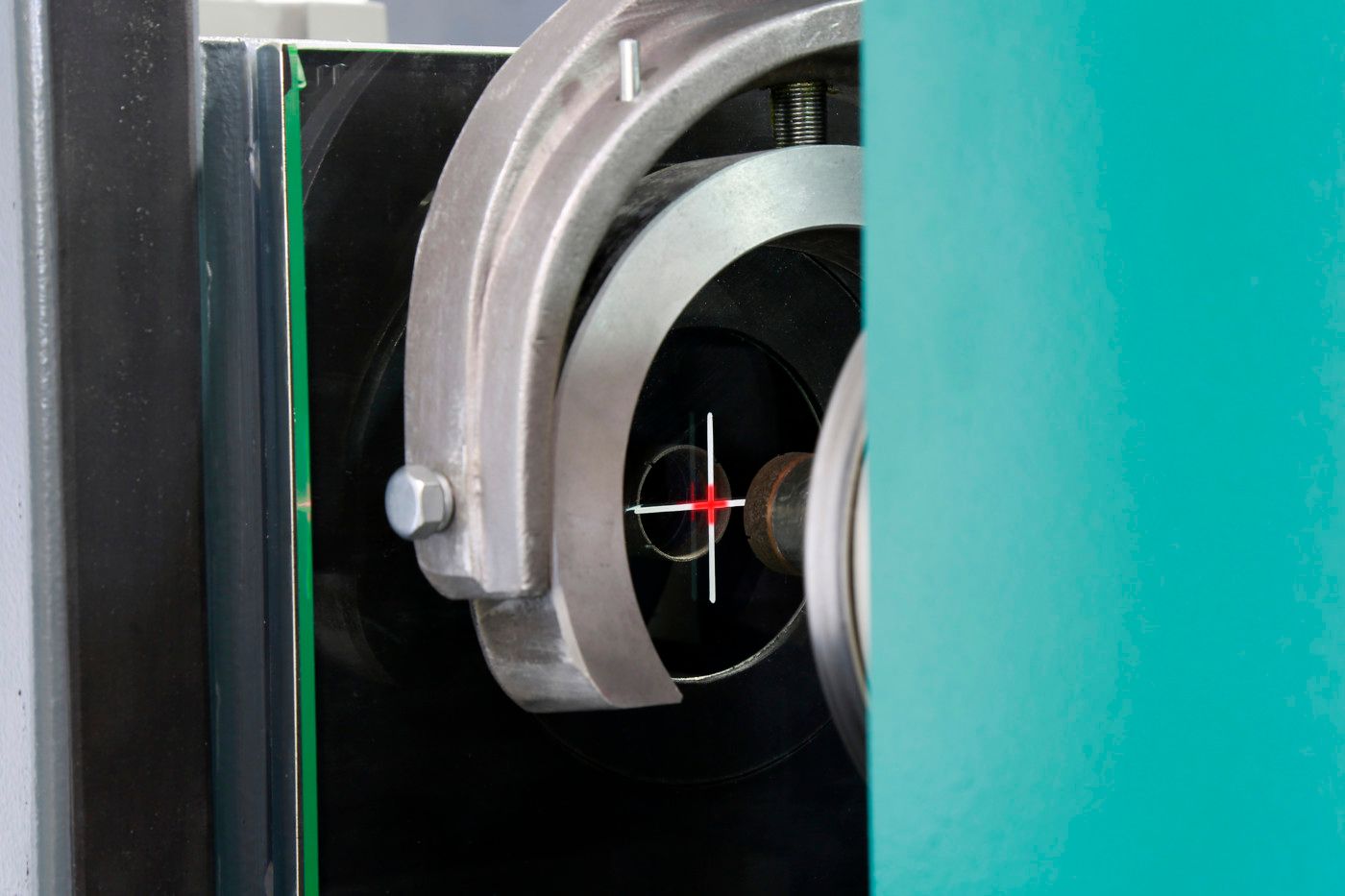

The vertical adjustment runs at two speeds, changing automatically from fast to slow, and a well developed system of backstops increases productivity. A red laser, additional lower base and drill storage box are included.
