Sulak
VTS 04 A-BOXER
Drilling MachinesAutomatic double sided drilling machine that drills from both sides at once with IAI head drives, giving fast, clean holes and touch screen control.
Specifications
- Machine dimensions
- 3000 x 1200 x 2450 mm
- Power supply
- 3 x 400 V (1 x 230 V) (3 x 230 V), 50/60 Hz
- Motor
- 2.0 kW, 550 to 3900 rpm
- Glass thickness
- 3 mm to 30 mm
- Weight
- 660 kg
- Drilling diameter
- 5 mm to 100 mm
- Drilling depth
- 1140 mm
- Minimum glass size
- 120 x 50 mm
- Drill bit length
- 75 mm
- Noise level
- 75 dB
Key features
- Fast and precise drilling from both sides at once
- Tool correction after replacement
- Intuitive touch screen control
- Digital X and Y axis measurement
- Pneumatic control of the fixture
- LED spindle lighting and signal tower
- Red laser and drill storage box as standard
About the VTS 04 A-BOXER

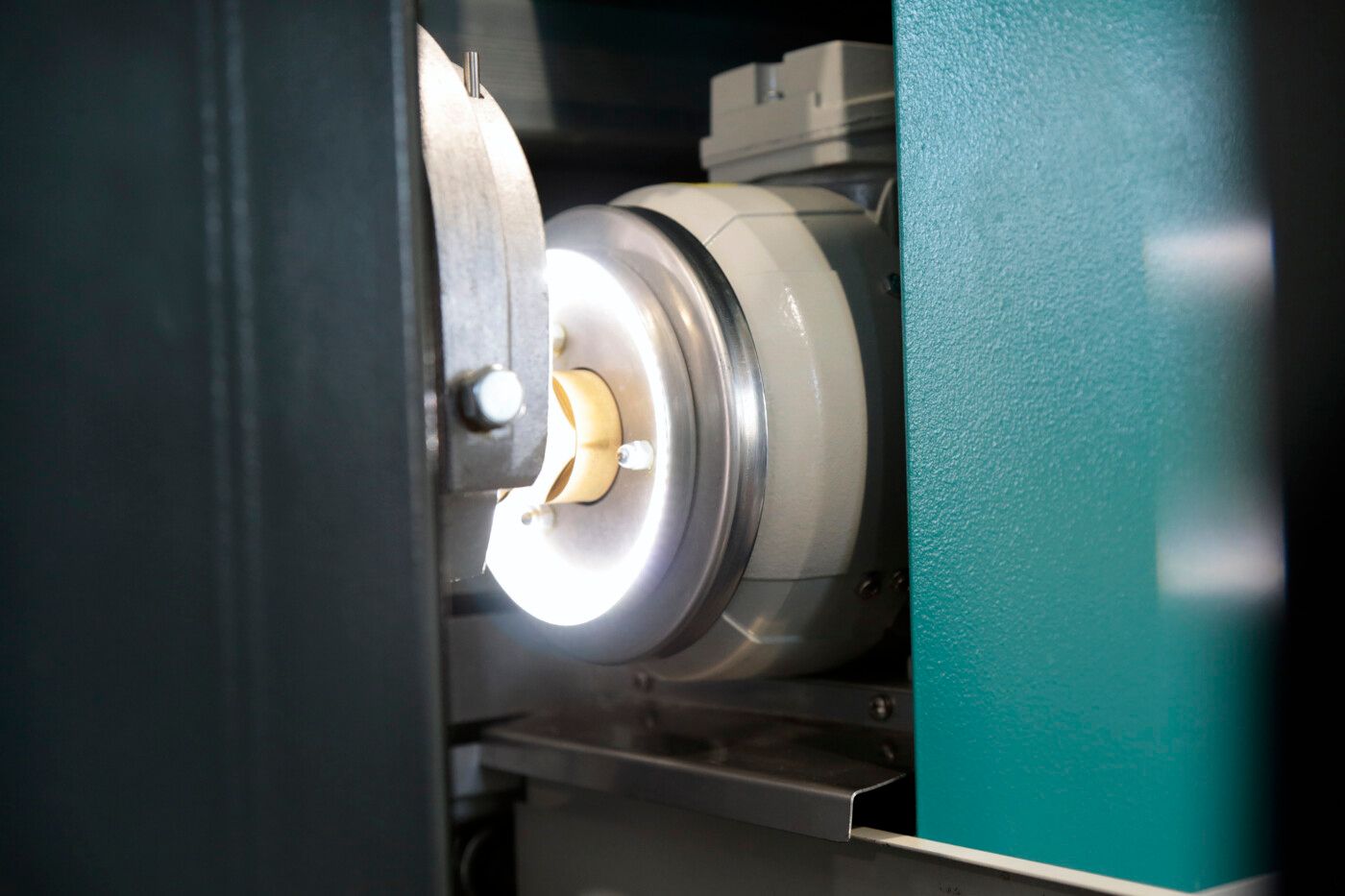

The VTS 04 A-BOXER is an automatic double sided drilling machine that drills from both sides at the same time. Branded IAI drill head drives make drilling fast and produce clean holes with almost no surrounding burrs, while adjustable drilling pressure minimises the risk of glass breakage.

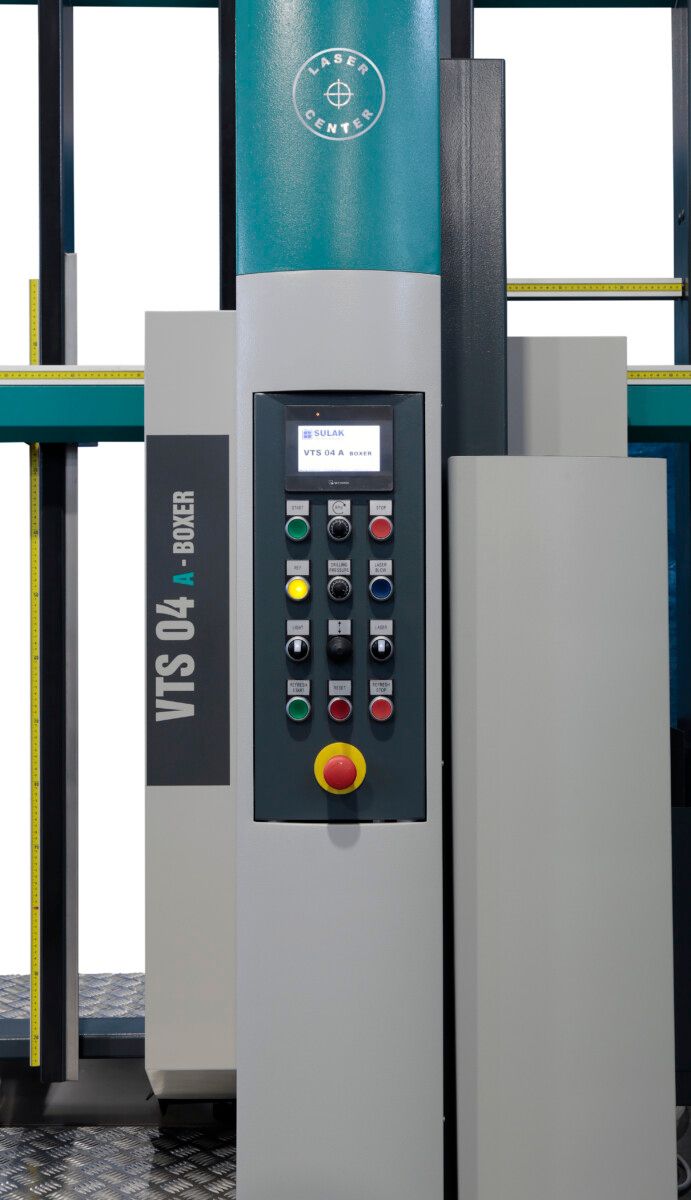

Operation is intuitive through a touch screen, with digital position measurement for precise, repeatable holes. An LED signal tower shows the operating status at a glance.
