VTS 03FP
Drilling MachinesDouble sided drilling machine with motorised two speed vertical travel and a 750 mm drill depth, for holes from 5 mm to 100 mm in glass 3 mm to 20 mm thick.
Specifications
- Machine dimensions
- 2920 x 920 x 2020 mm
- Power supply
- 3 x 400 V (1 x 230 V) (3 x 230 V), 50/60 Hz
- Motor
- 1.8 kW, 550 to 3900 rpm
- Glass thickness
- 3 mm to 20 mm
- Weight
- 385 kg
- Drilling diameter
- 5 mm to 100 mm
- Drilling depth
- 750 mm
- Minimum glass size
- 120 x 50 mm
- Drill bit length
- 75 mm
- Noise level
- 75 dB
Key features
- One handed ergonomic operation
- Motorised two speed vertical adjustment
- Drill depth 750 mm
- Power consumption only 1.8 kW
- Compact design that saves floor space
- Exact and easy control of coordinates for precise hole location
- Two year warranty
About the VTS 03FP

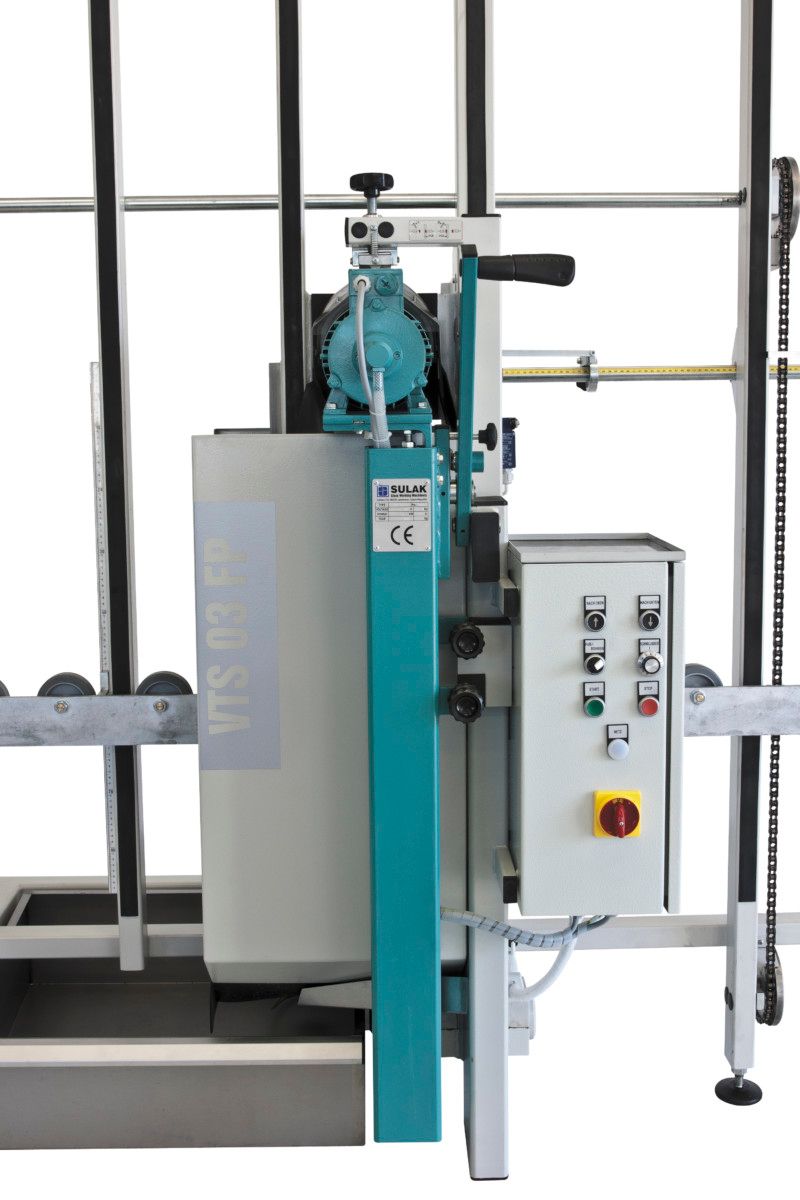

The VTS 03FP is a double sided drilling machine for drilling holes in sheet glass from 5 mm to 100 mm in diameter. Two opposed drilling heads, regulated by an electronic inverter, produce a clean, burr free hole, and motorised vertical travel makes the glass easy to handle.

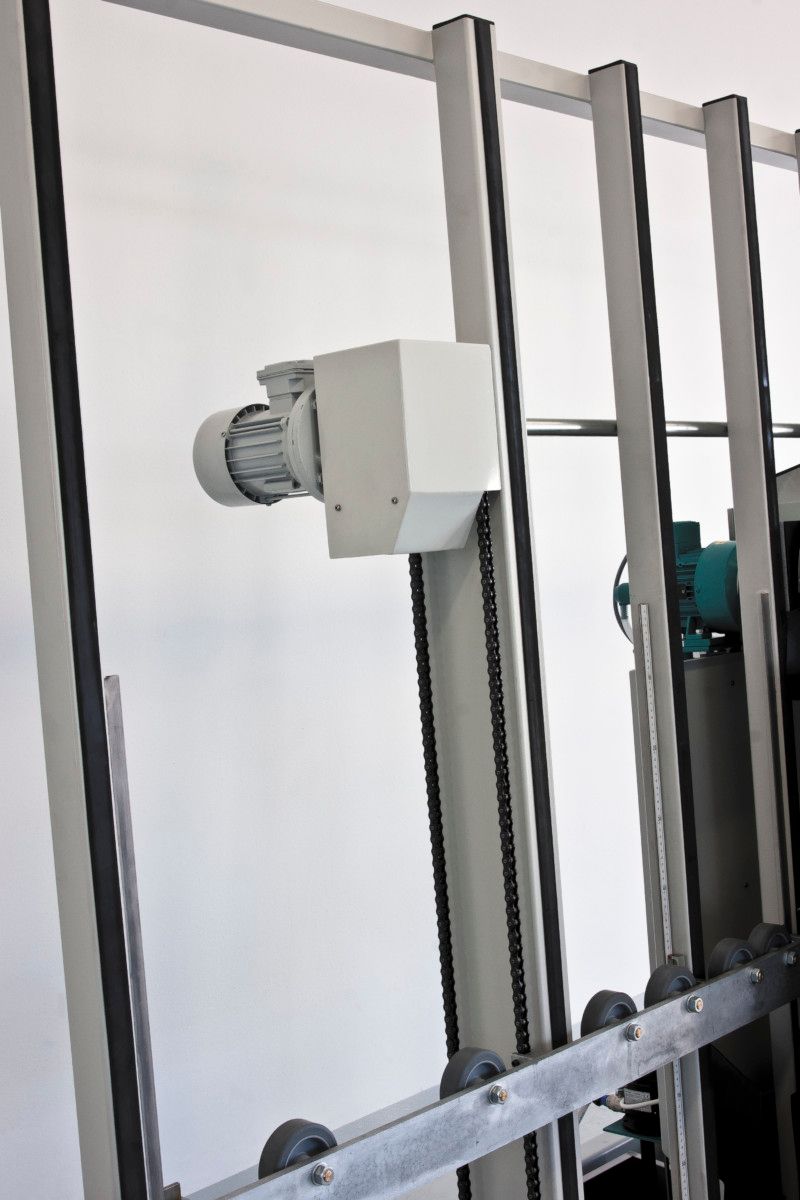

The vertical adjustment runs at two speeds, dropping automatically from fast to slow as it approaches the glass. A well developed system of backstops increases productivity, and precise coordinate control locates the hole centre accurately.
