Sulak
VTS 03 SCOUT
Drilling MachinesDouble sided glass drilling machine for holes from 5 mm to 100 mm, with clean burr free drilling, motorised vertical travel and precise coordinate control.
Specifications
- Machine dimensions
- 3000 x 1100 x 2300 mm
- Power supply
- 3 x 400 V (1 x 230 V) (3 x 230 V), 50/60 Hz
- Motor
- 1.8 kW, 550 to 3900 rpm
- Glass thickness
- 3 mm to 20 mm
- Drilling diameter
- 5 mm to 100 mm
- Drilling depth
- 900 mm
- Drill bit length
- 75 mm
- Minimum glass size
- 120 x 50 mm
- Weight
- 465 kg
- Noise level
- 75 dB
Key features
- Two opposed drilling heads for clean, burr free holes
- Drilling diameter from 5 mm to 100 mm
- Motorised vertical adjustment with two speeds
- Drilling depth of 900 mm
- Precise coordinate control for accurate hole location
- Power consumption only 1.8 kW
- Compact design that saves floor space
- 2 year warranty

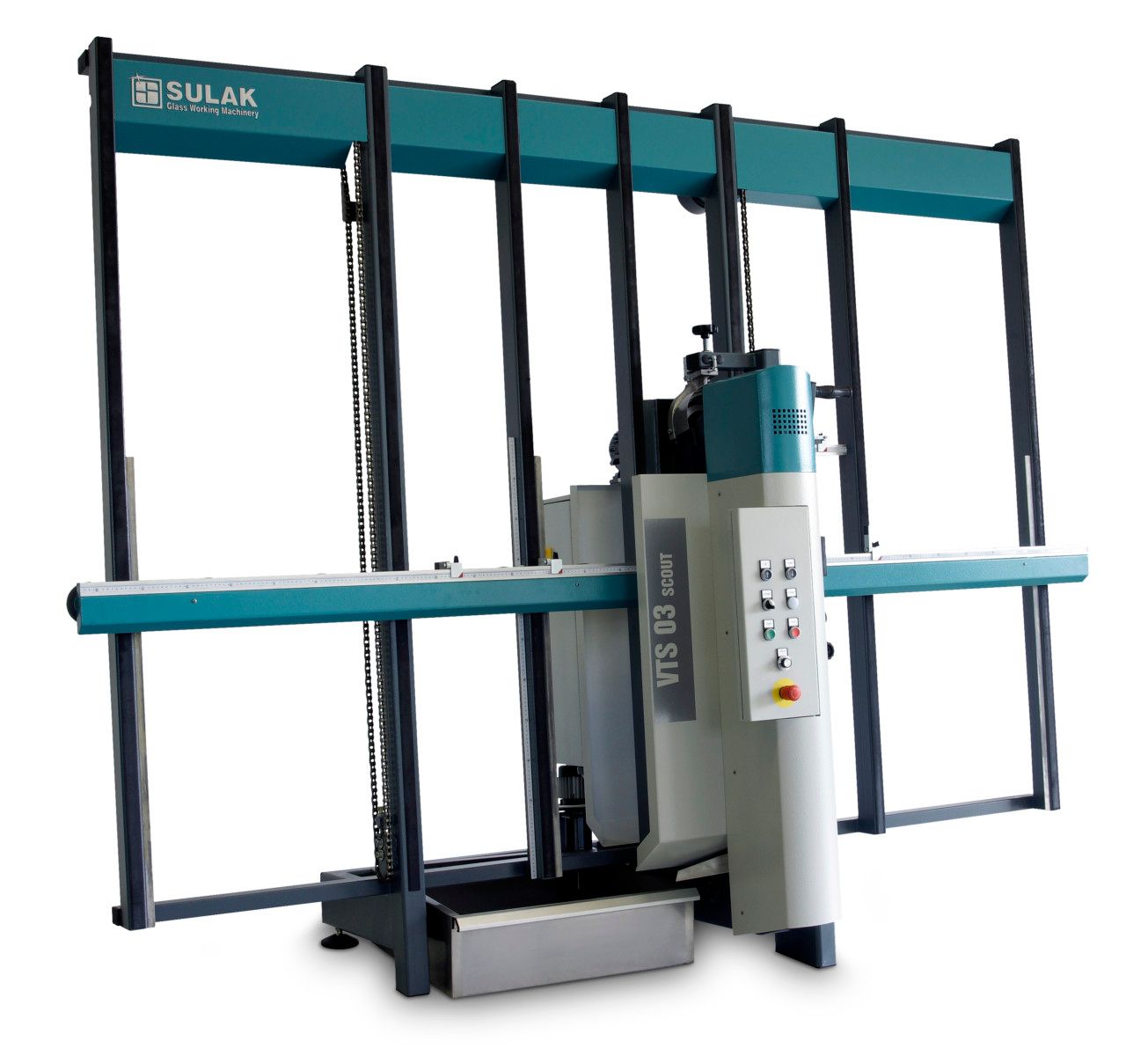

About the VTS 03 SCOUT

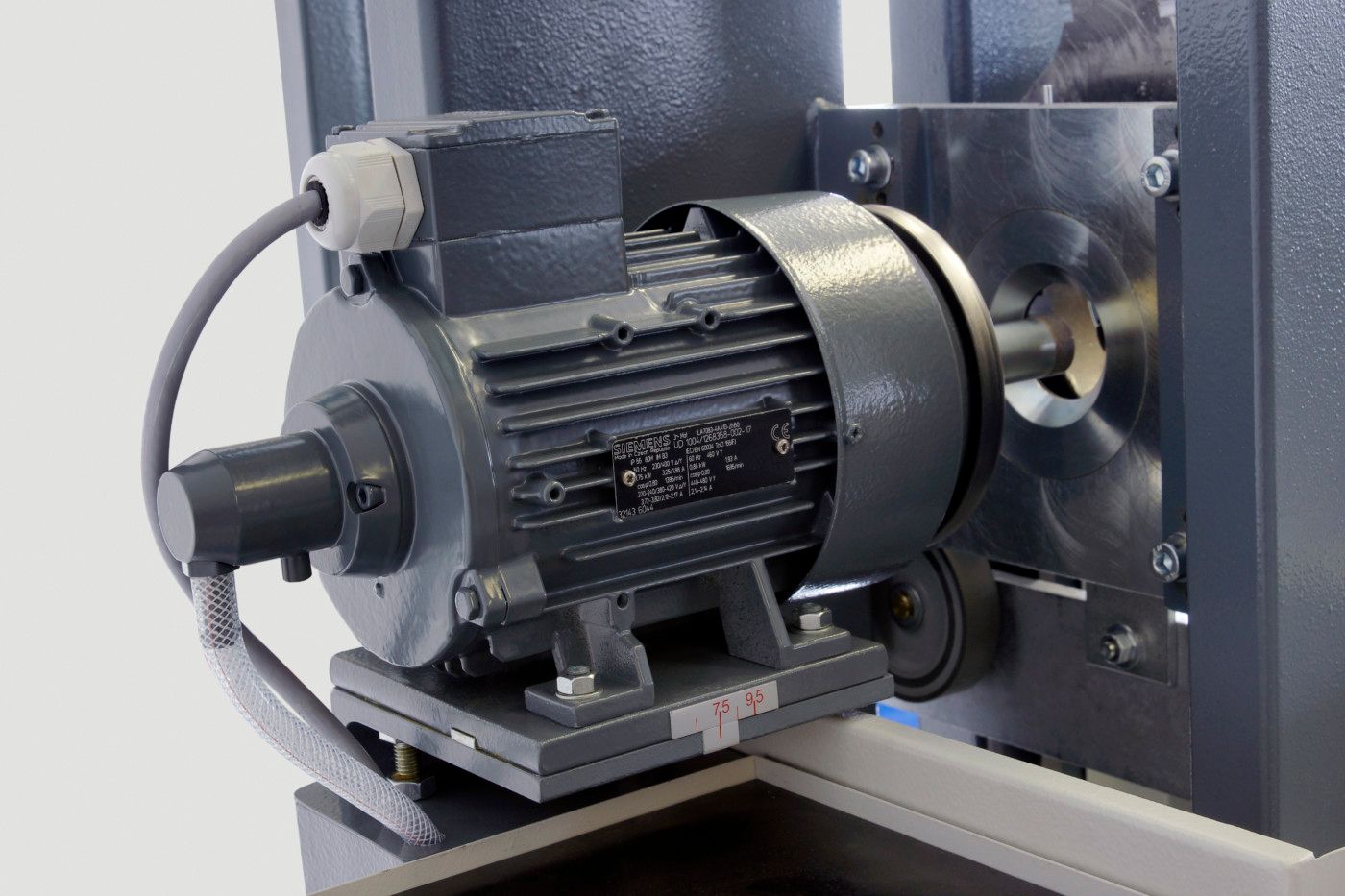

The Scout (VTS 03) is a double sided glass drilling machine for drilling holes in sheet glass from 5 mm to 100 mm in diameter. Two opposed drilling heads produce a clean hole with no burrs, and the motor speed is set by an electronic inverter.

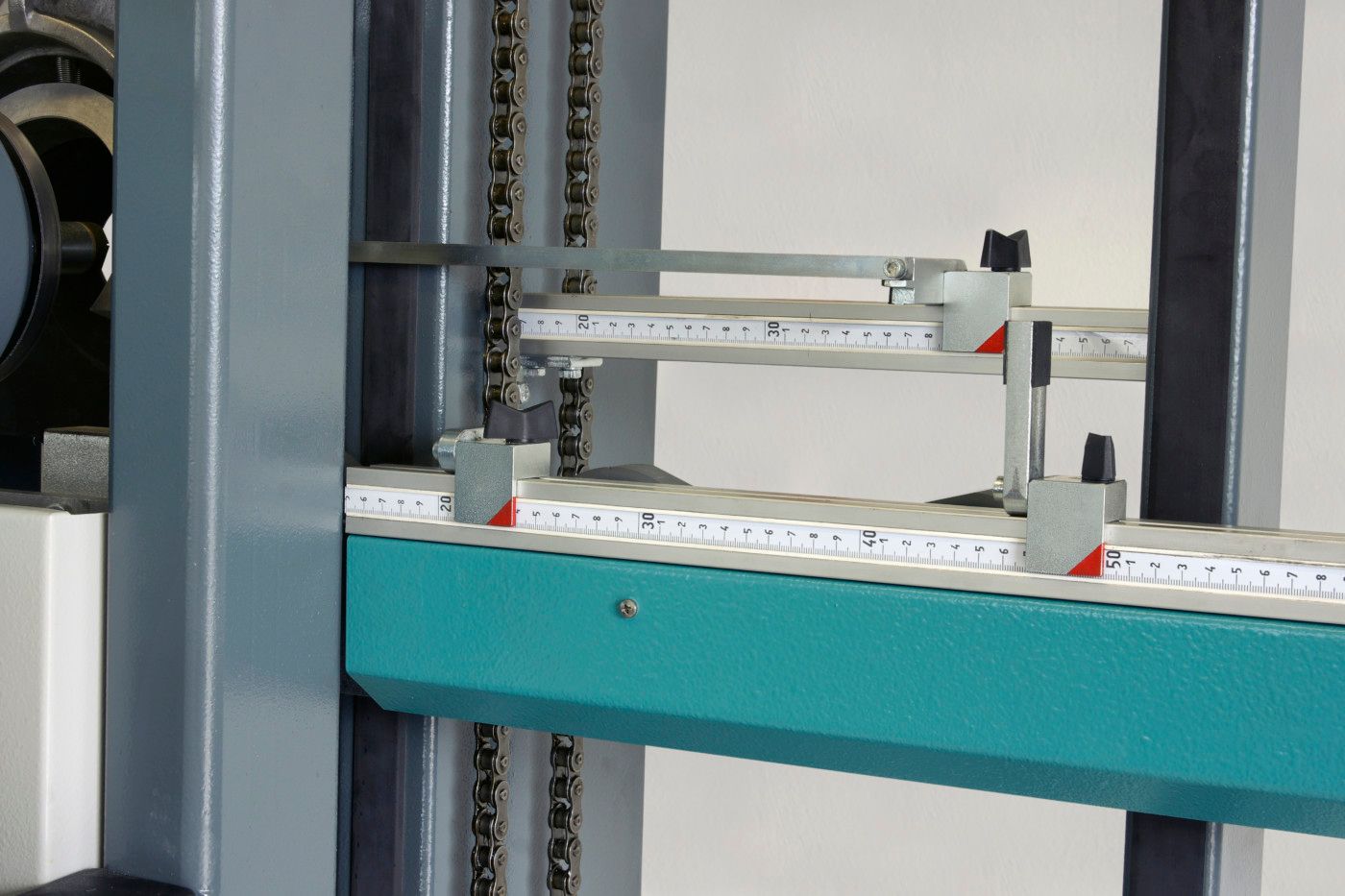

Motorised vertical travel makes the glass easy to handle, and a well developed system of backstops increases productivity. Low running costs make it an efficient addition to the workshop.
