Sulak
VTS 02F
Drilling MachinesDouble sided drilling machine for clean, burr free holes from 5 mm to 100 mm in glass 3 mm to 20 mm thick, with one handed operation.
Specifications
- Machine dimensions
- 1600 x 920 x 1820 mm
- Power supply
- 3 x 400 V (1 x 230 V), 50/60 Hz
- Motor
- 1.8 kW, 550 to 3900 rpm
- Glass thickness
- 3 mm to 20 mm
- Weight
- 310 kg
- Drilling diameter
- 5 mm to 100 mm
- Drilling depth
- 600 mm
- Minimum glass size
- 120 x 50 mm
- Drill bit length
- 75 mm
- Noise level
- 75 dB
Key features
- One handed ergonomic operation
- Power consumption only 1.8 kW
- Compact design that saves floor space
- Exact and easy control of coordinates for precise hole location
- Two year warranty
About the VTS 02F

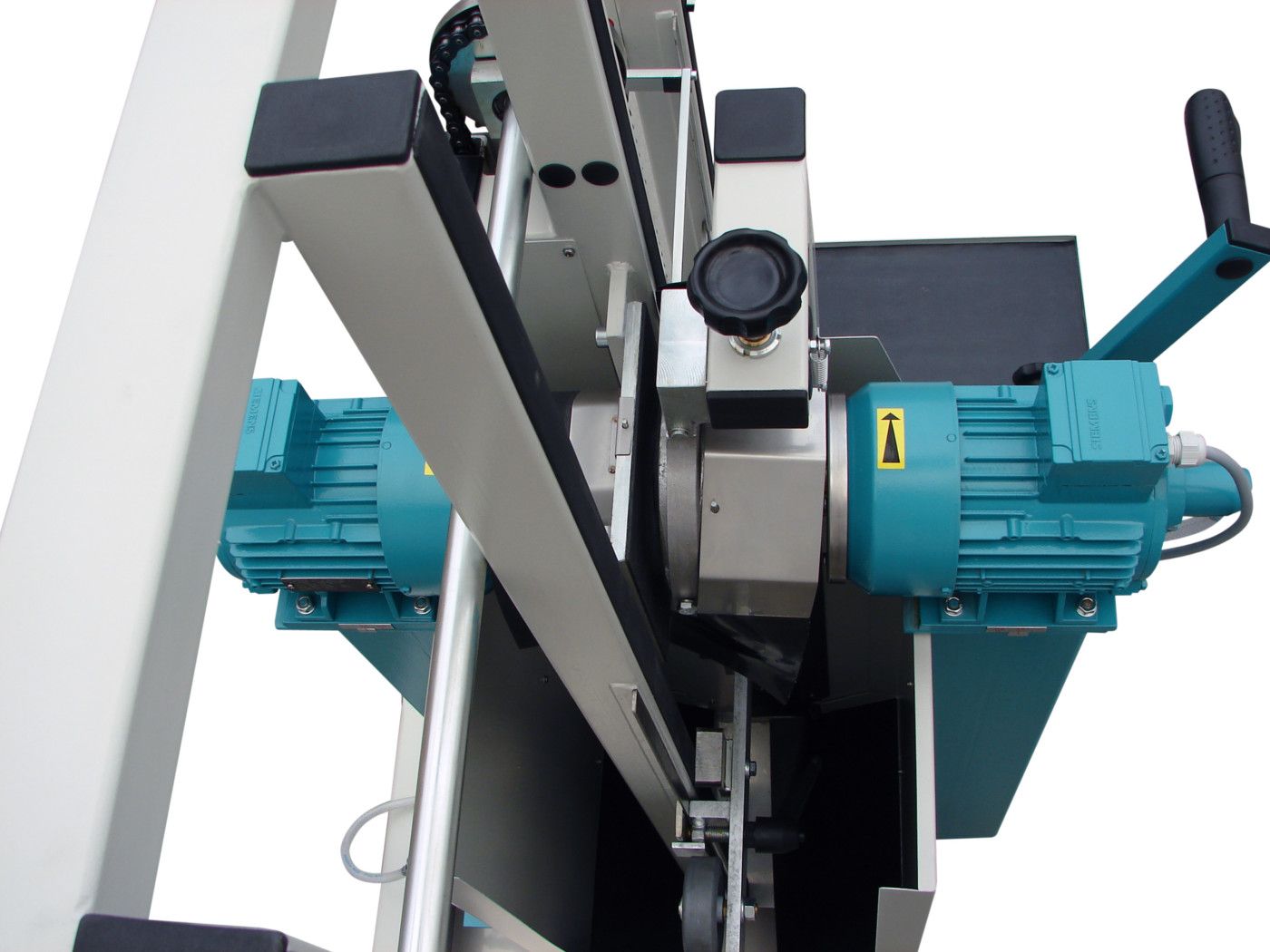

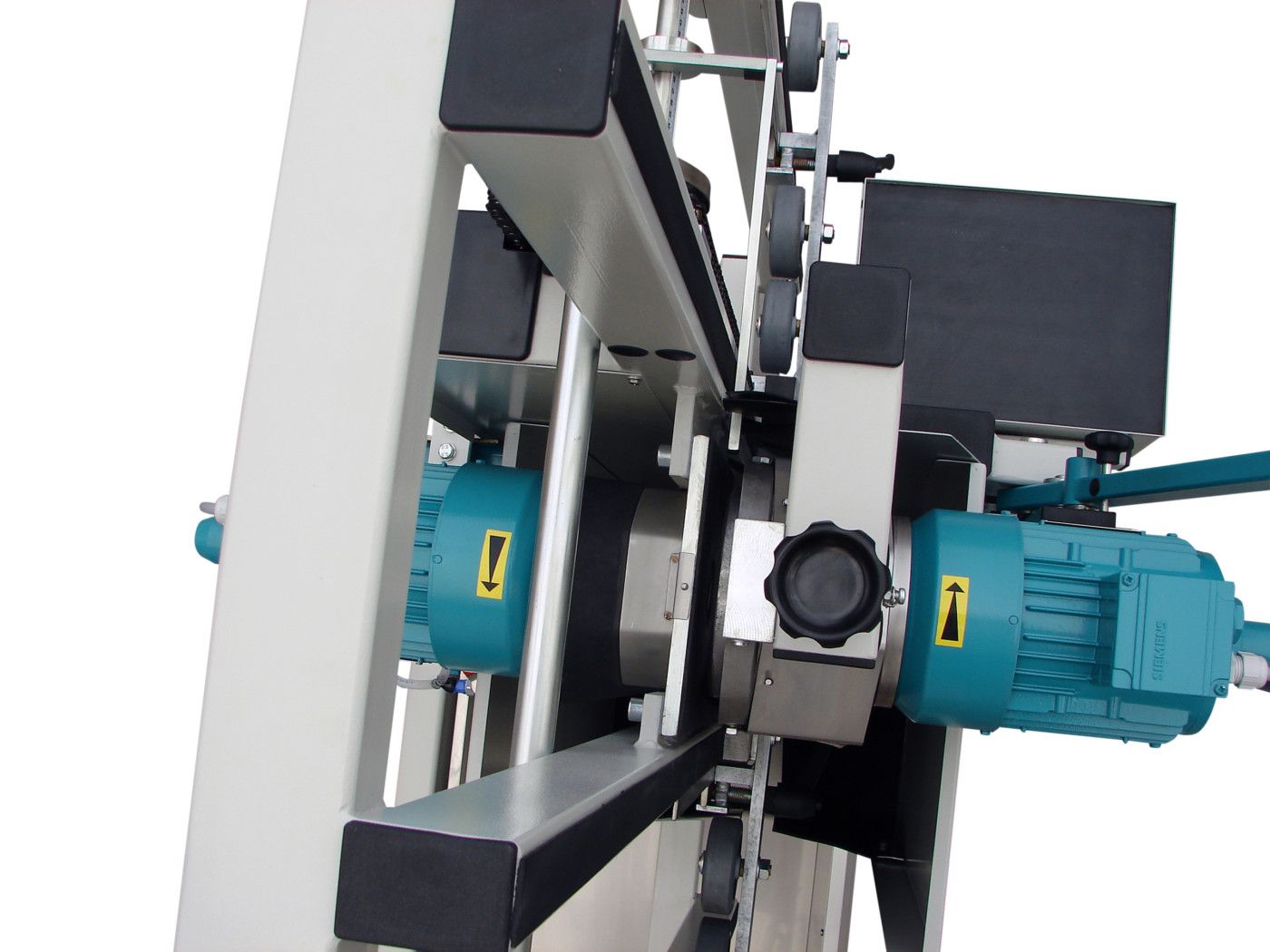

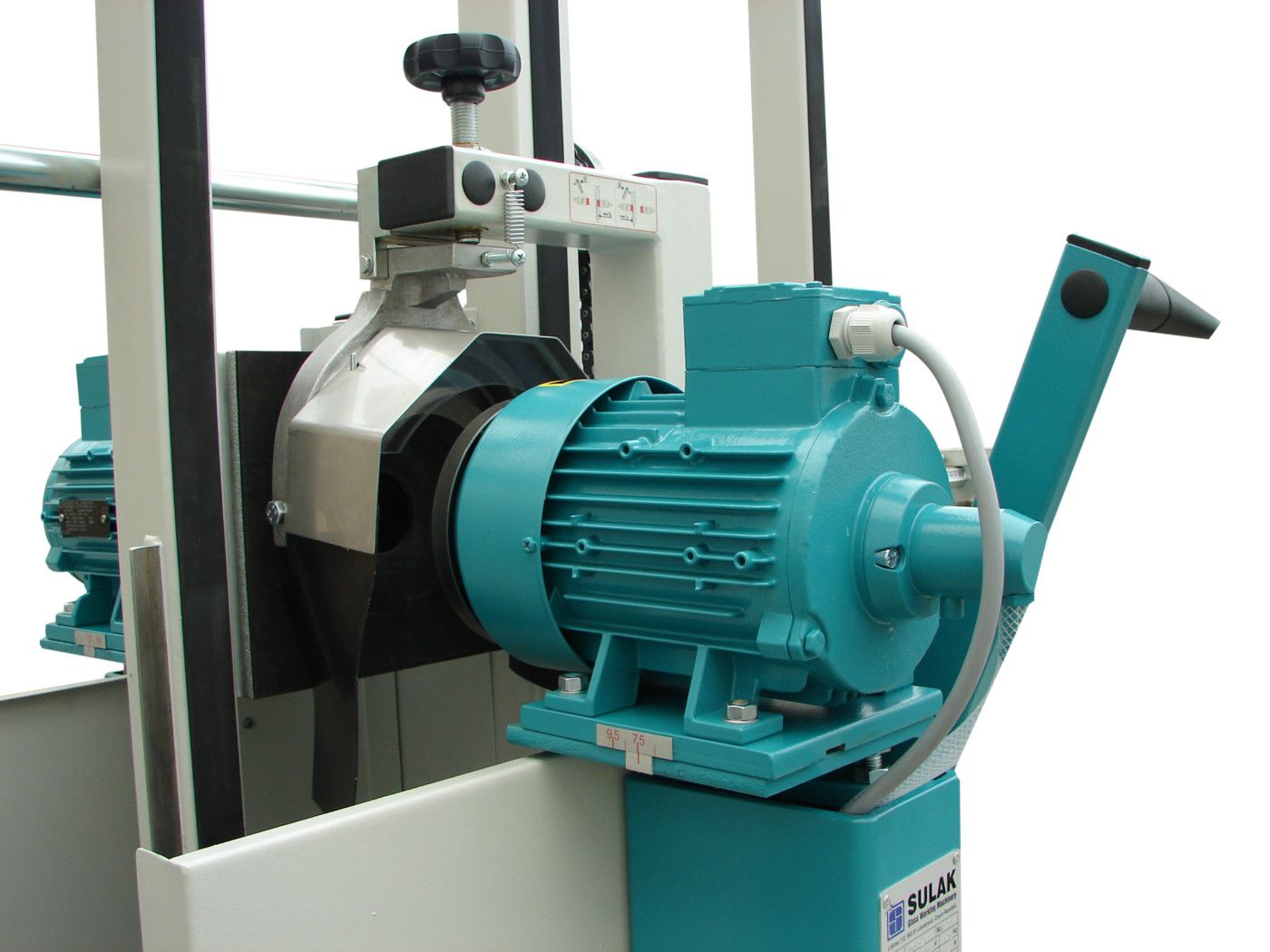

The VTS 02F is a double sided drilling machine for drilling holes in sheet glass from 5 mm to 100 mm in diameter. Two opposed drilling heads, regulated by an electronic inverter, give a clean hole free of burrs, while manual vertical feeding makes the glass easy to handle.
A well developed system of backstops increases productivity, and precise coordinate control lets the operator locate the hole centre accurately. Compact and economical to run, it is an efficient machine for any workshop.
