Sulak
VTS 01
Drilling MachinesHorizontal drilling machine for shaped and flat glass, drilling holes from 5 mm to 100 mm in glass 3 mm to 30 mm thick.
Specifications
- Machine dimensions
- 1000 x 1150 x 2000 mm
- Power supply
- 3 x 400 V (3 x 230 V), 50/60 Hz
- Motor
- 0.85 kW, 1400 rpm
- Glass thickness
- 3 mm to 30 mm
- Weight
- 220 kg
- Drilling diameter
- 5 mm to 100 mm
- Drilling depth
- 500 mm
- Minimum glass size
- 50 x 50 mm
- Drill bit length
- 75 mm
- Noise level
- 75 dB
- Distance of hole from edge
- 0 to 350 mm

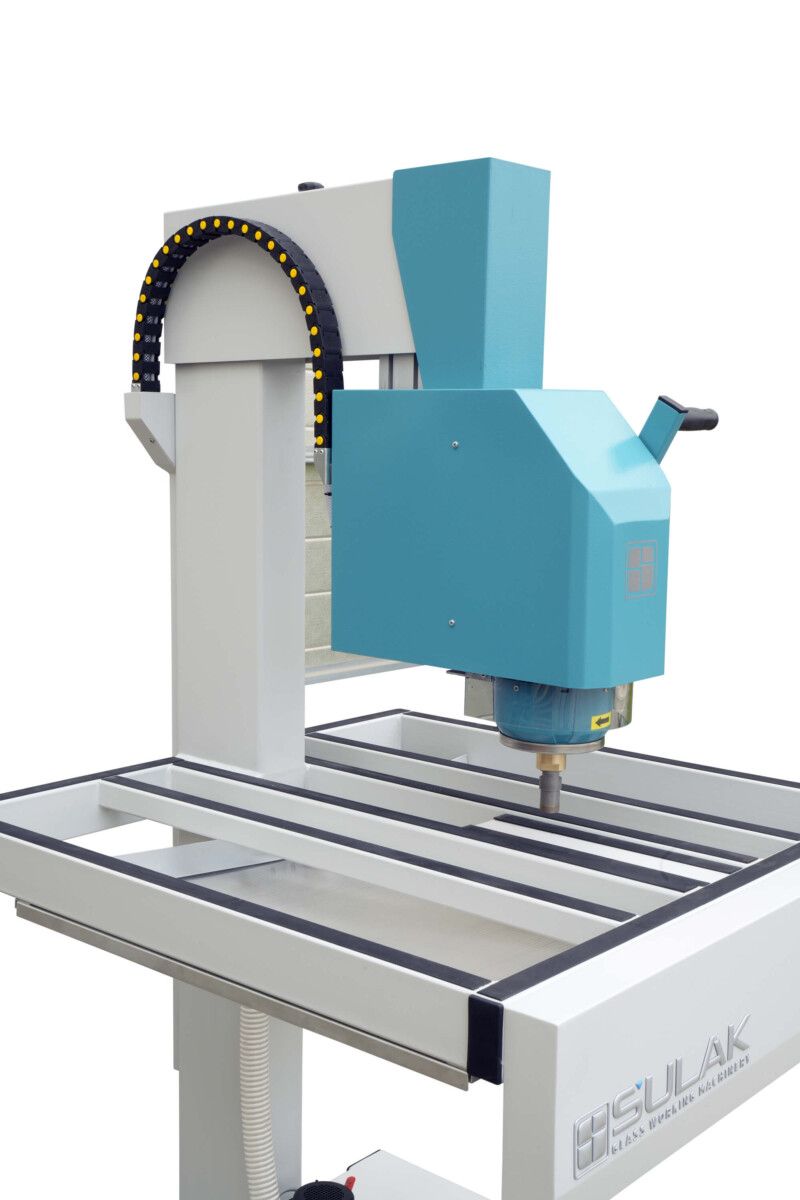

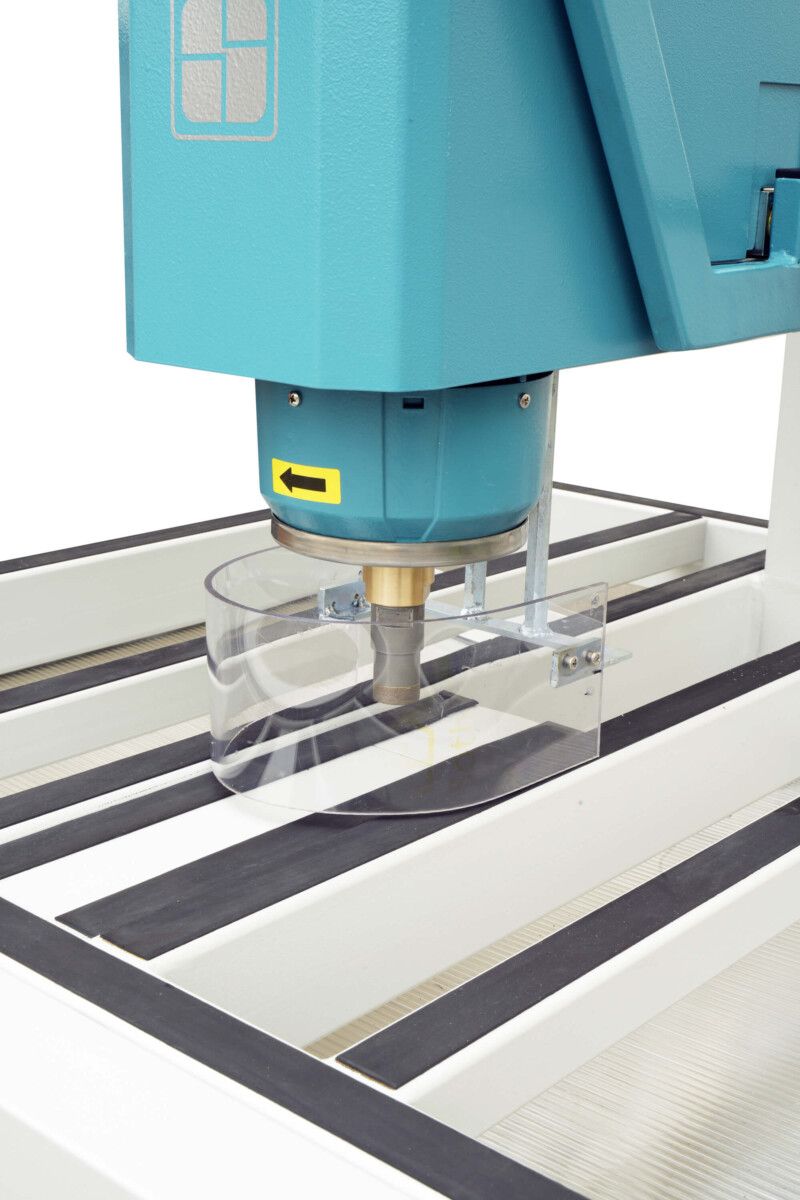

About the VTS 01
The VTS 01 is a horizontal drilling machine for making holes in shaped and flat glass. It drills holes from 5 mm to 100 mm in diameter in glass from 3 mm to 30 mm thick, locating the hole centre precisely along the working length.
Its compact, affordable design saves floor space and keeps running costs low, making it a practical drilling machine for smaller workshops.
