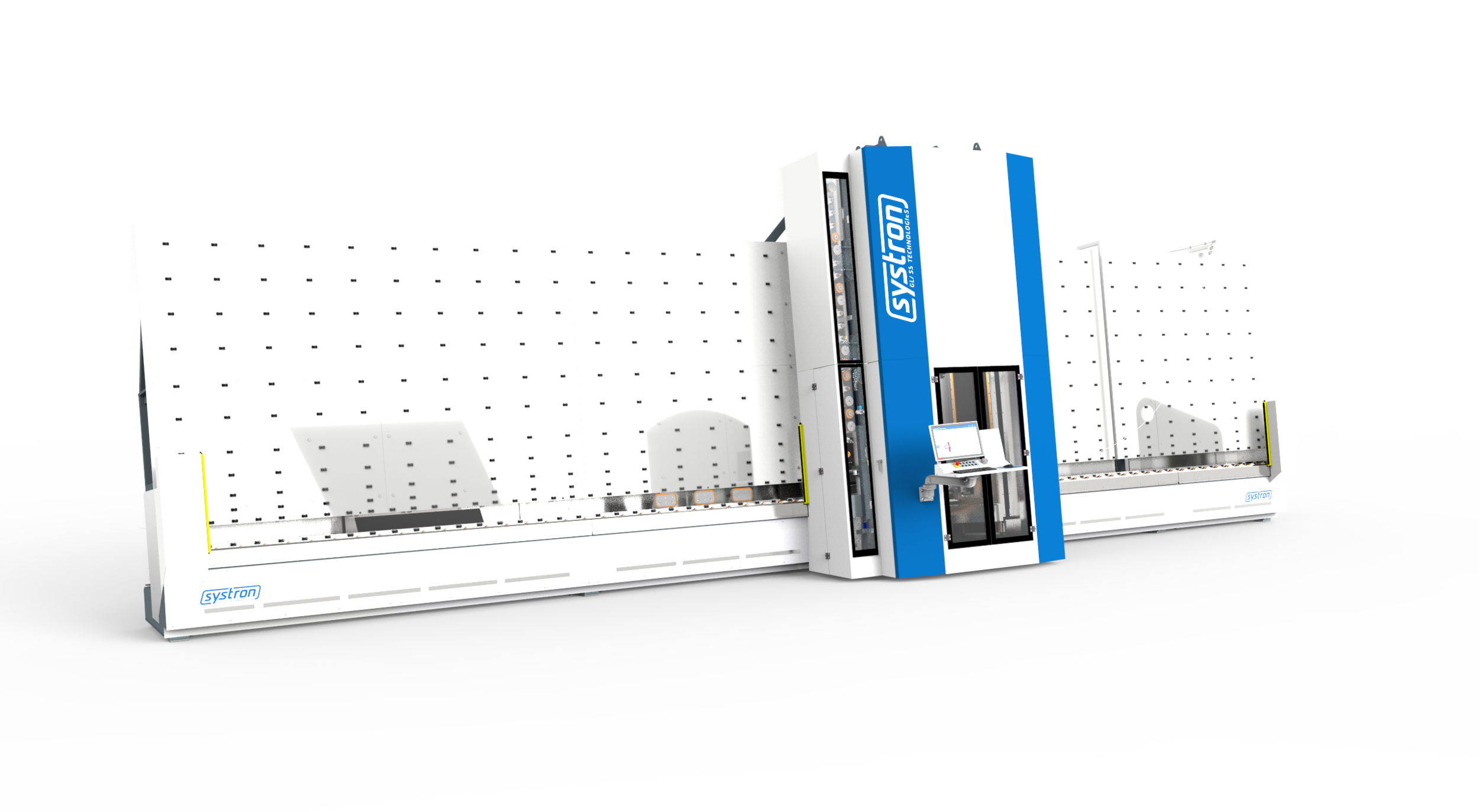

Systron proHD
CNC MachinesThe most flexible all in one glass processing centre on the market, combining seaming, grinding, polishing and drilling with integrated waterjet cutting in one small footprint.
Specifications
- Type
- CNC glass processing centre with waterjet
- Maximum pane size
- 2500, 3500, 5000, 6000 or 9000 mm (configurable)
- Machining tolerance
- Plus or minus 0.2 mm maximum over the entire product
- Minimum batch size
- 1
Brochures
About the Systron proHD

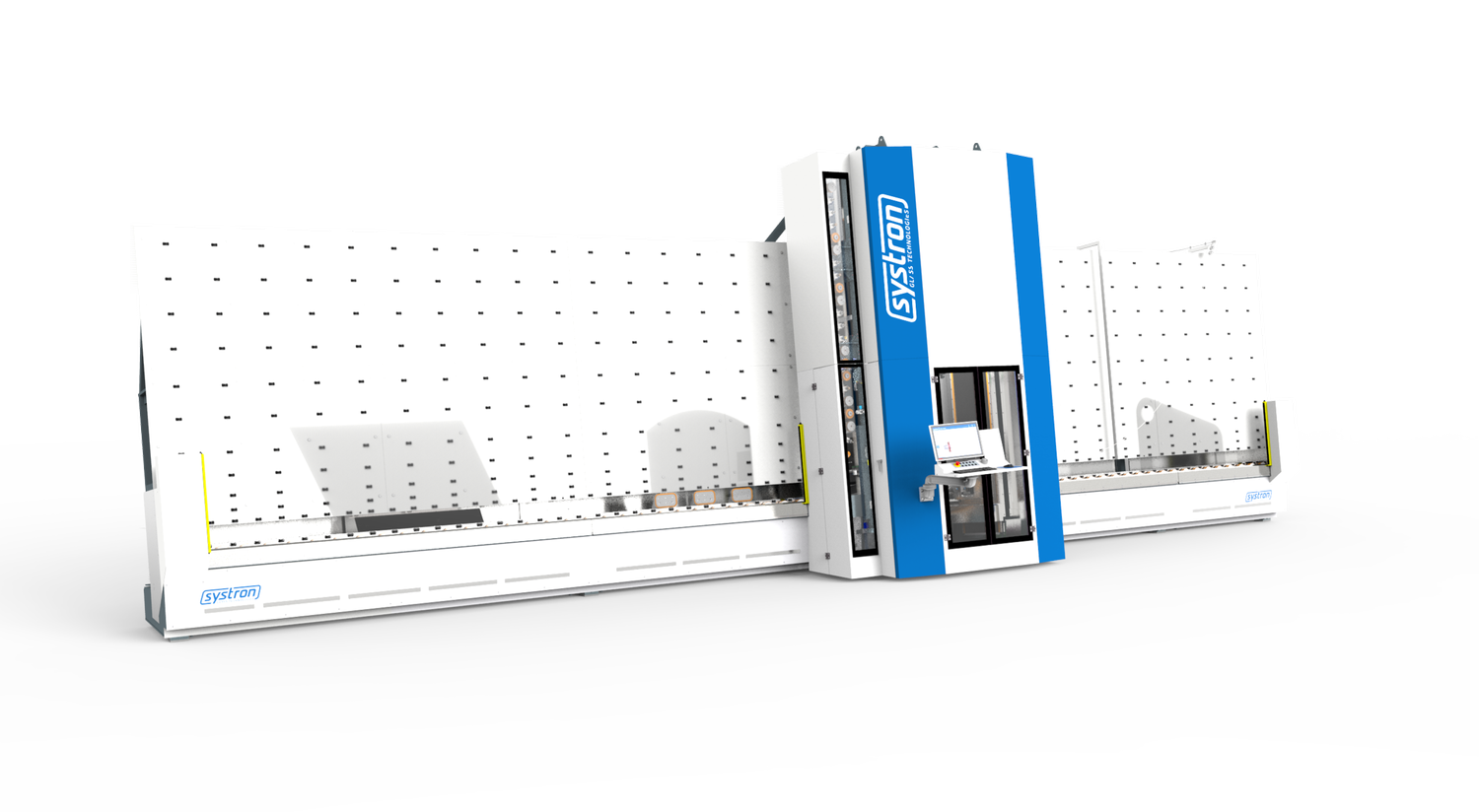

The Systron proHD glass processing centre with integrated waterjet technology is the most flexible all in one solution on the market, and the one with the smallest footprint.
A huge variety of applications:
- Seaming, milling, sinking, grinding and polishing of outer and inner contours

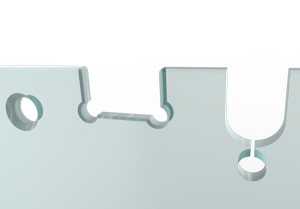

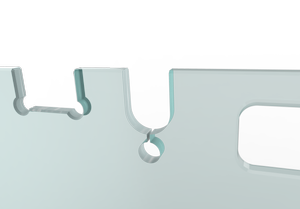

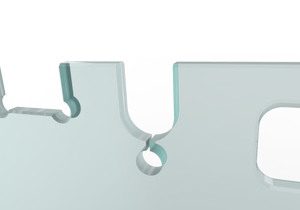

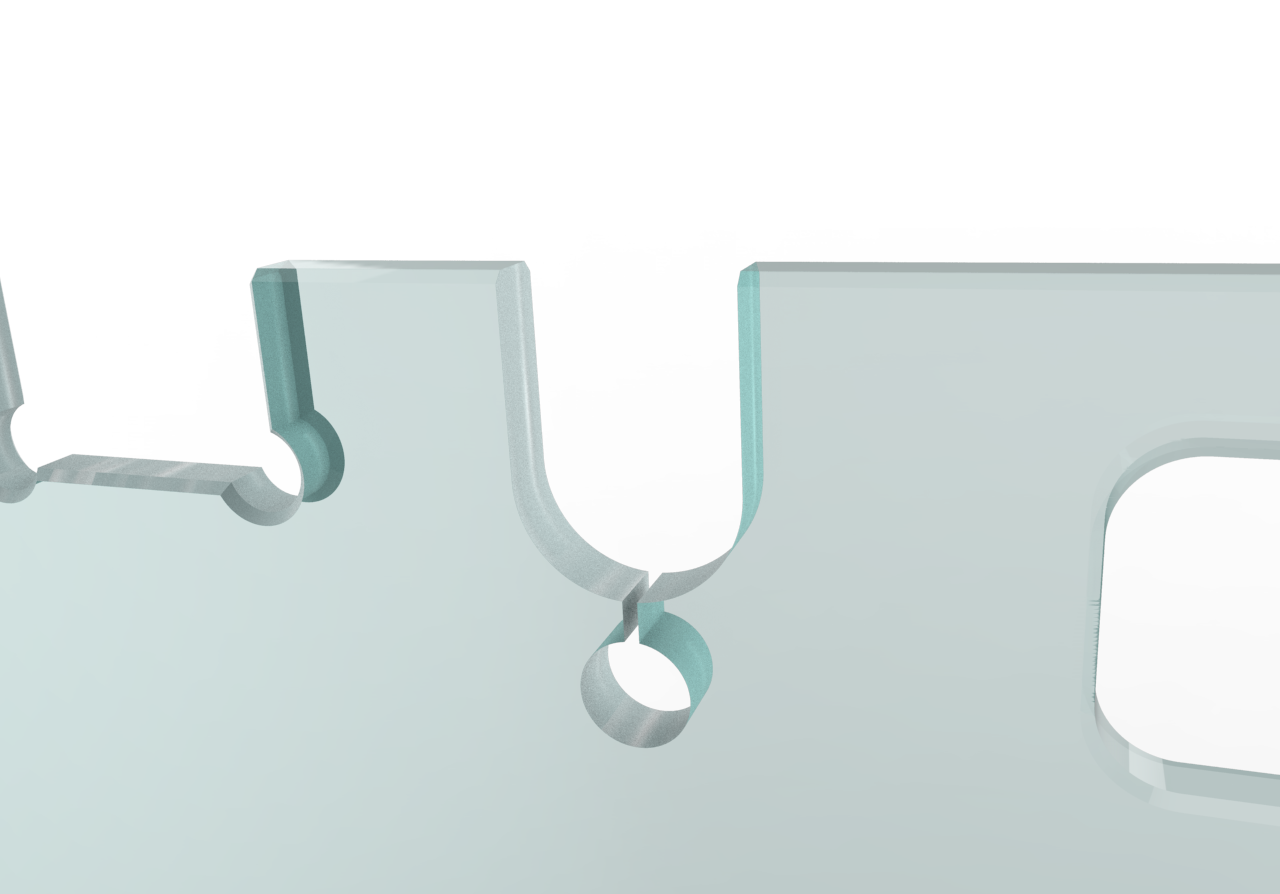

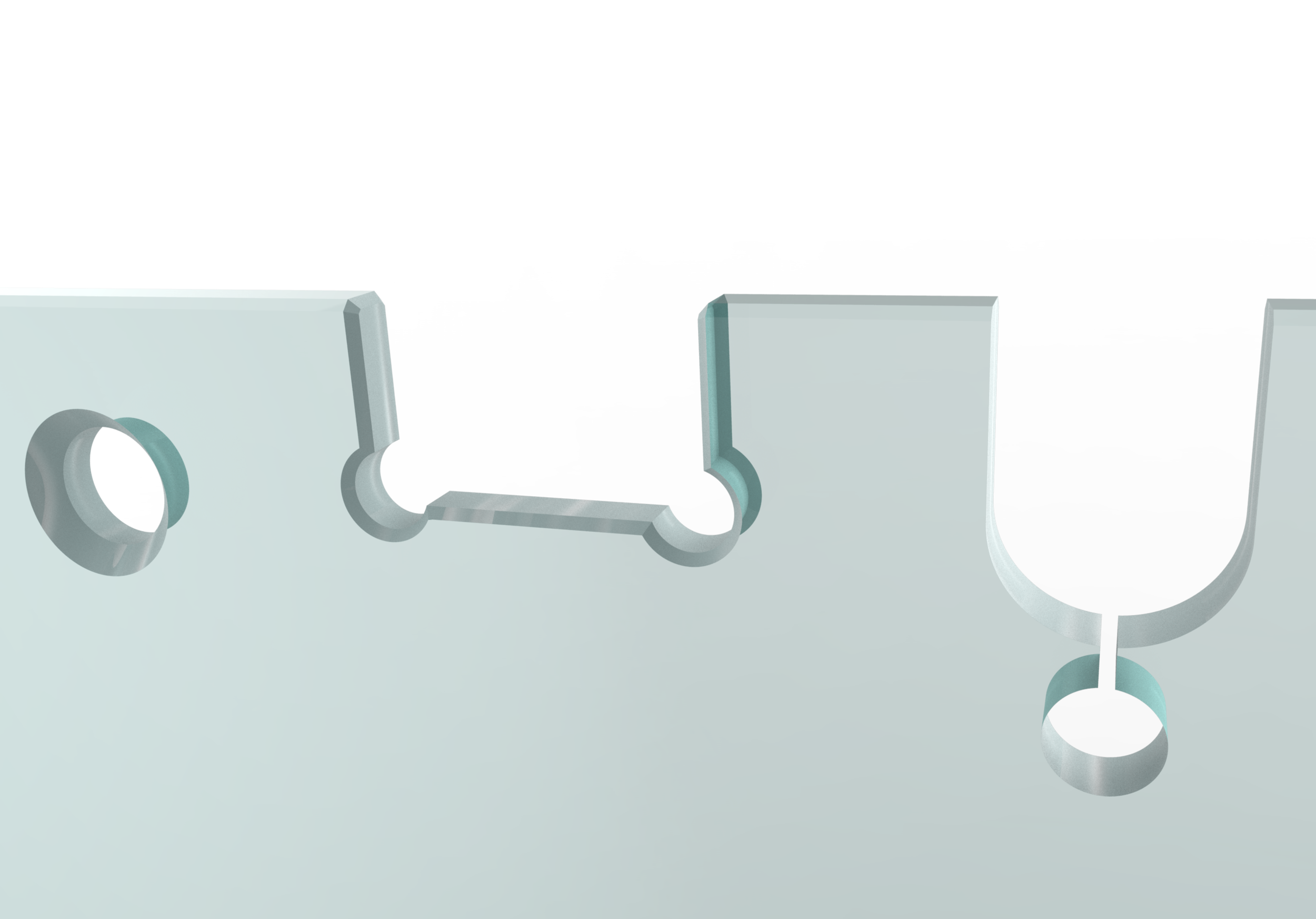

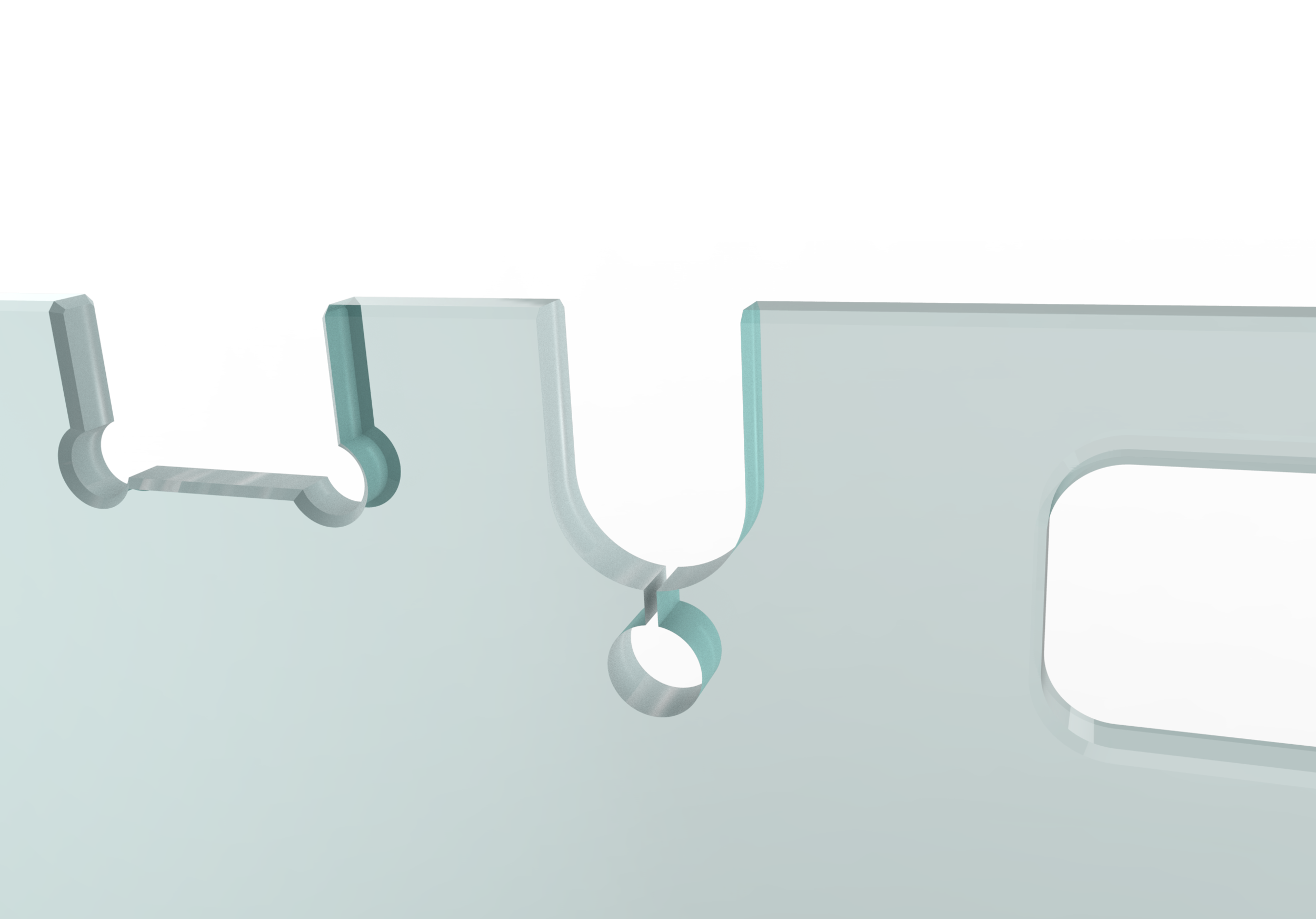

- Drilled holes and cut outs using the patented waterjet technology
- One clamping for all interior and exterior processing, with minimal machining tolerances
The proHD is the right choice for glass with complex shapes and cut outs. The flexible system makes processing efficient and particularly economical, especially for difficult jobs and batch sizes of one.
Systron sets new standards in CNC glass processing:
- One time clamping for all interior and exterior machining
- Minimal machining tolerances, max. +/- 0.2 mm across the entire product size
- Maximum flexibility for contours and special shapes
- No set up times between different glass thicknesses and types
- Very rigid, vibration free construction for the highest processing quality, including oblique edges and radii
The most difficult tasks are easily mastered. Water jet pressure of up to 4000 bar allows extremely fast cutting of all inner and outer contours, even complex geometries, with the highest precision. High quality waterjet cut contours can be toughened without post processing, and production time can be cut by up to 50 percent.
Highlights:
- Constant polishing quality through precisely controlled polishing pressure
- Vibration free machining prevents chipping
- Arris parallelism guaranteed by patented water cushion guidance
- High pressure tool cooling over the entire tool circumference
- Automatic positioning of glass sheets, also for special shapes
- Low maintenance costs on the high pressure unit through new patented systems
- Continuously protected suction cups
- No mechanical contact when machining coated glass surfaces
- Intuitive graphical machine interface
