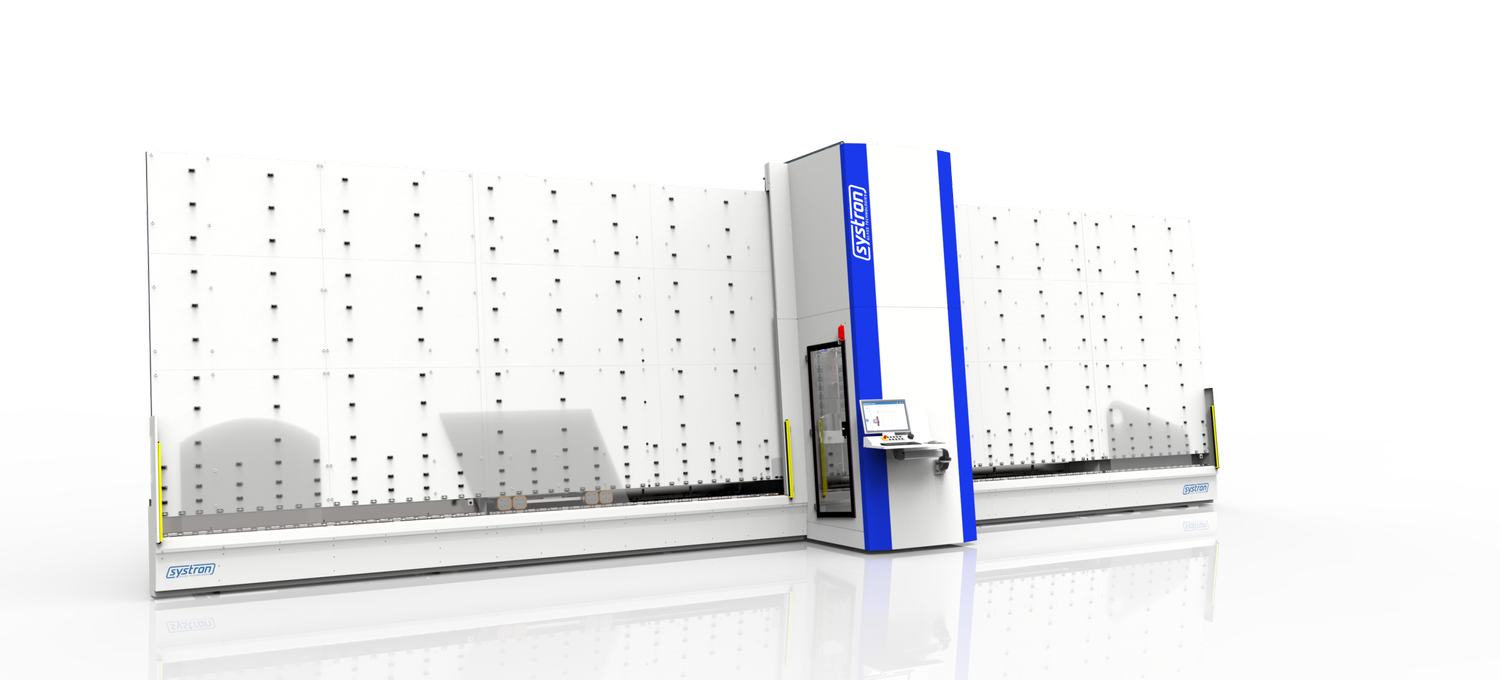

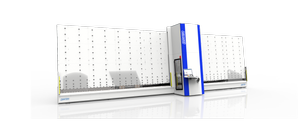

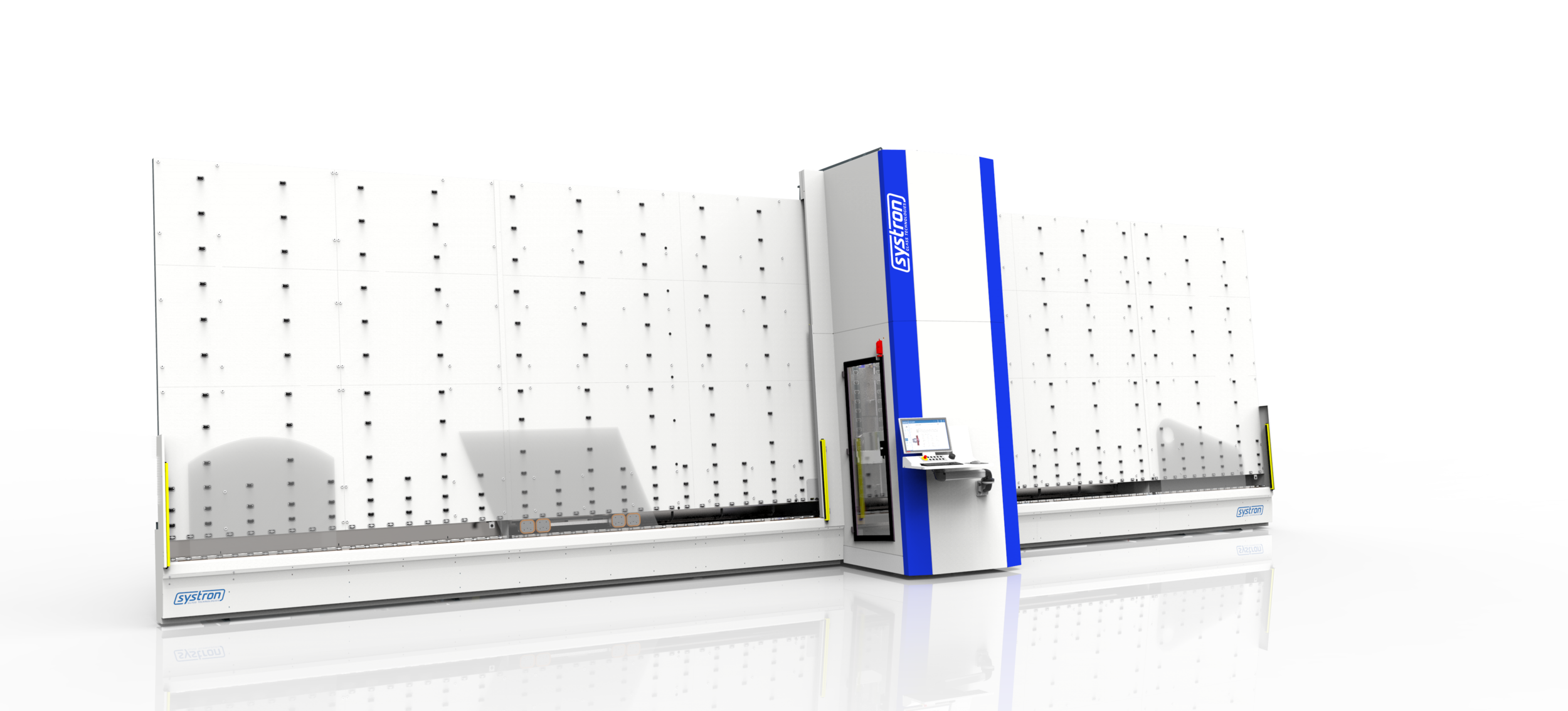

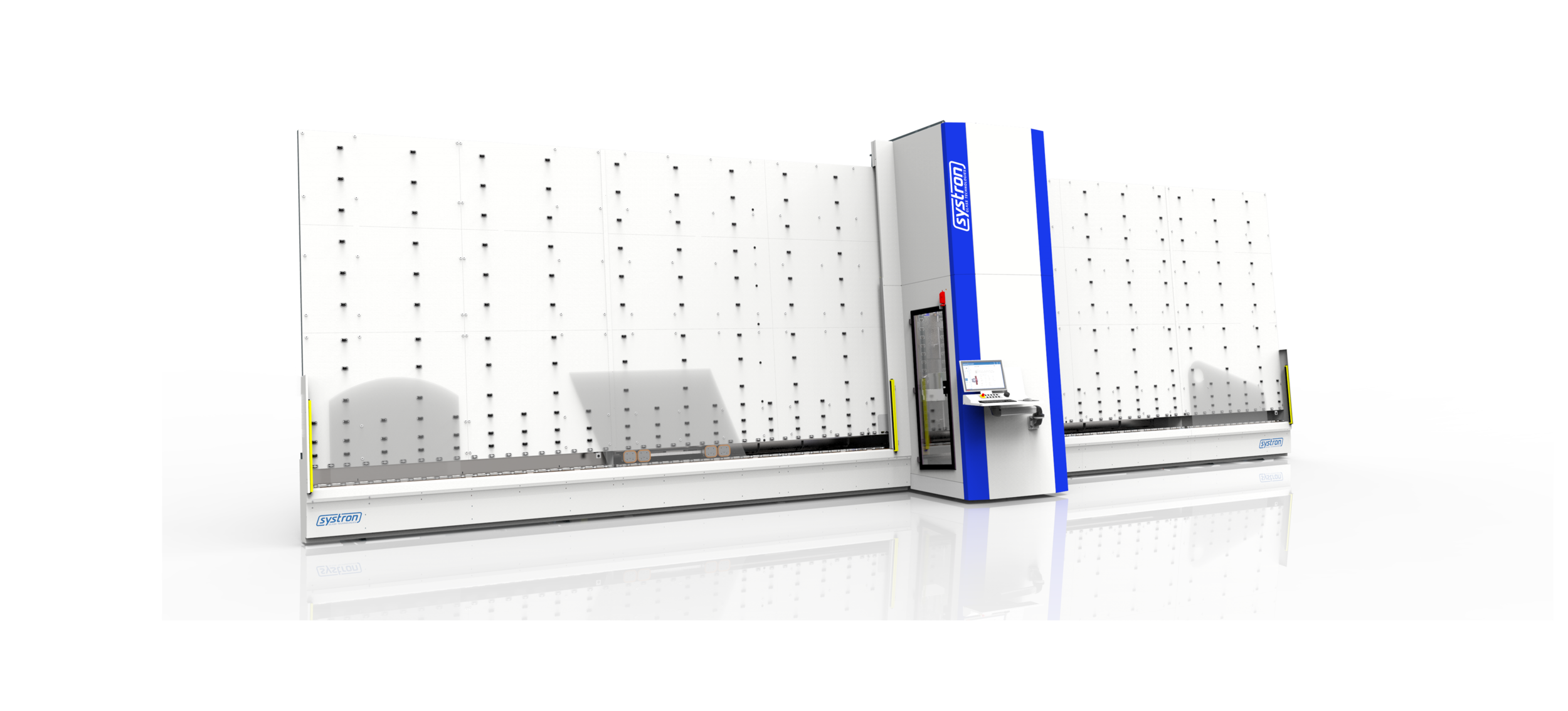

Systron esX-3 Arriser
ArrisingVertical glass seaming and grinding machine with soft touch edge guidance, machining contours and radii at up to 30 m per minute without a tool change.
Specifications
- Type
- Vertical glass seaming and grinding machine
- Glass thickness
- 4 to 19 mm (no tool exchange)
- Maximum grinding speed
- 30 m/min
- Grinding spindles
- 1 or 2 (optional)
- Tool package width
- Up to 58 mm
- Tool diameter
- 200 mm
Brochures
About the Systron esX-3 Arriser

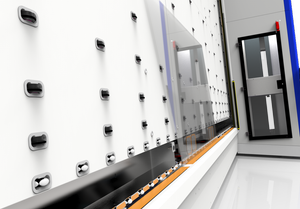

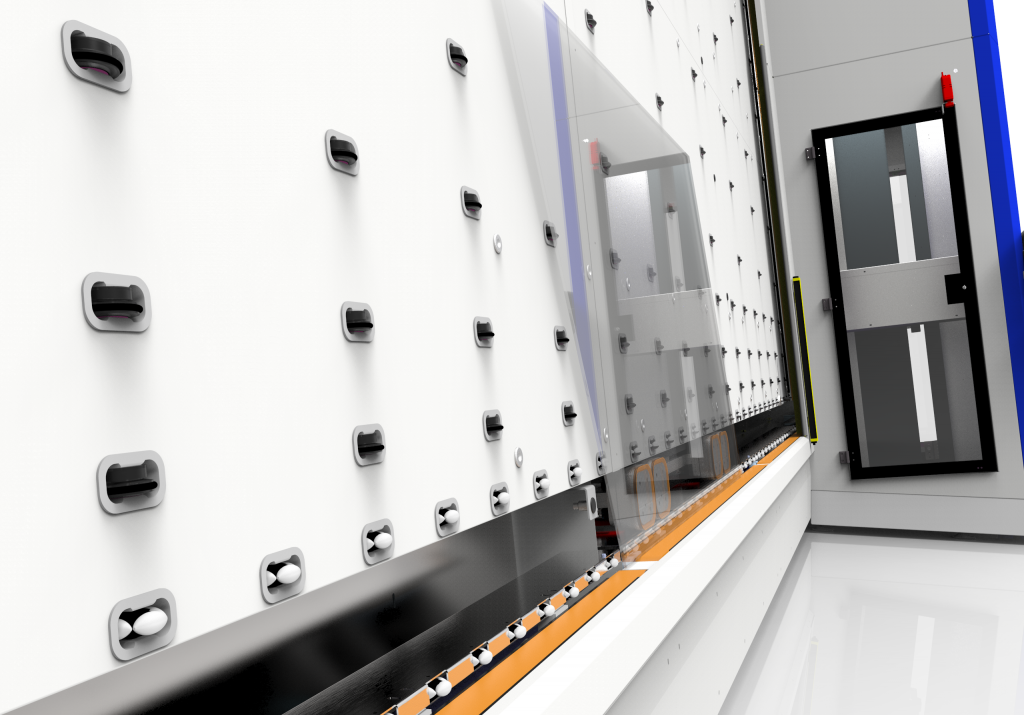

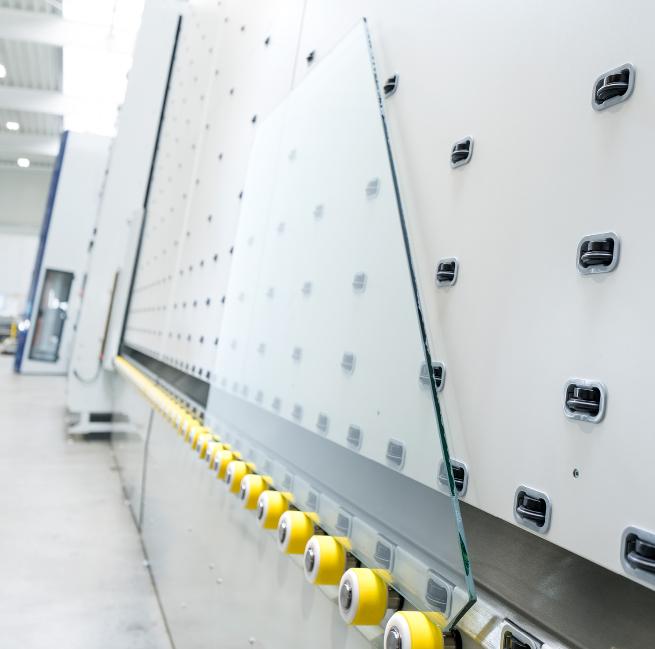

The Systron esX is a vertical glass seaming and grinding machine that follows the glass edge with a soft touch guidance system. Its rigid design machines contours and inside and outside radii with very short cycle times, while patented systems assure the highest edge quality.
Seaming and grinding are performed without a tool change:
- Edge grinding and seaming
- Corner dubbing with no cycle time loss
- Automatic sheet measurement
New standards for seaming and grinding glass contours:
- Grinding head follows the glass contour, even where breakage is uneven
- Floating tool spindle
- Optional one or two grinding spindles
- Glass thicknesses 4 to 19 mm without a tool change
Top quality at extremely high grinding speed:
- Edge grinding and seaming without a tool change
- Corner dubbing at maximum seaming speed
- Maximum grinding speed of 30 m per minute
Highlights:
- No mechanical contact when processing coated glass
- Automatic sheet measurement for rectangular panes
- Tool package width up to 58 mm
- Various tool profiles possible
- Flexible processing spindle self adapts to the grinding contour
- Torque control of the machining spindle
- Easy processing of complex shapes
- Tool diameter 200 mm
Watch
The Systron esX-3 Arriser in action
