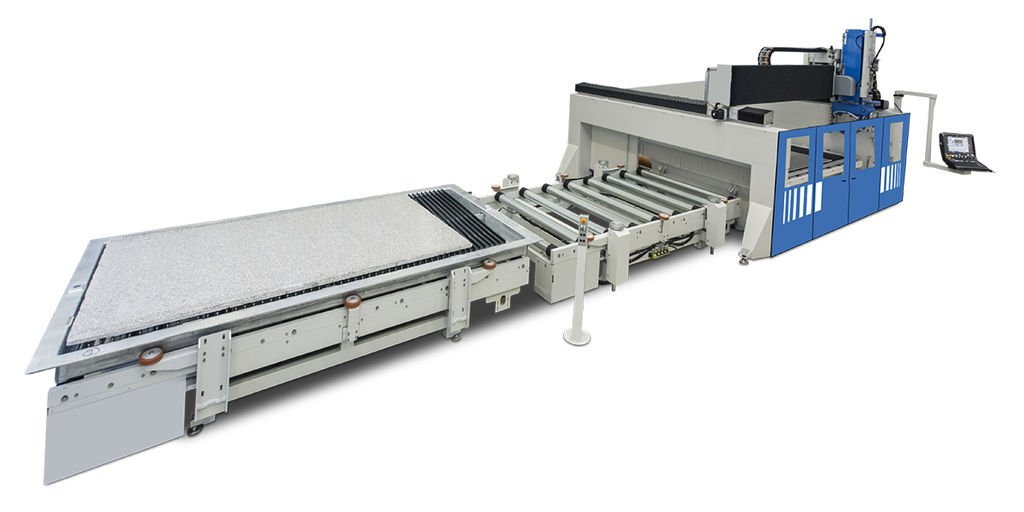

Brembana Sprint Jet
Bridge Saws5-axis saw jet machine combining a diamond disk with an integral abrasive waterjet head for variable and small-radius cuts impossible with a disk alone.
Product brochure
Not online yet. A technician can send you a copy.
Specifications
- X axis stroke
- 4,250 mm (167 in)
- Y axis stroke
- 3,200 to 7,200 mm (126 to 283 in)
- Z axis stroke
- 600 mm (24 in)
- Disk diameter
- 350 to 625 mm (14 to 25 in)
- Motor
- 18.5 kW (25 HP)
- Motor revolution
- 0 to 5,000 rpm (optional 0 to 6,000 rpm)
- Maximum working thickness (90° disk)
- 200 mm (8 in)
- Maximum working thickness (45° disk)
- 130 mm (5 in)
- Head revolution (4th axis)
- ± 270° (540°)
- Head inclination (5th axis)
- +8° to -90°
- Workbench dimensions
- 4,000 x 2,000 mm (157 x 79 in)
- High pressure intensifier
- 22.5 to 45 kW (30 to 60 HP)
Key features
- Unrivalled mechanics: the open-frame version mounts on concrete or steel shoulders for stability, rigidity and long life
- Easy maintenance, 93% lower cost for spent abrasive removal: an anti-rust ceramic-painted catch tank fits the Evo4 chain dredge, even after installation
- Limitless technology: a 5-axis cutting head with IKC technology delivers perfect miter cutting through conicity and deflection control
- +33% productivity: the vacuum manipulator moves cut pieces automatically to optimise slab cutting and reduce waste
Options
- Pallet change, to load the next slab outside the machine while it cuts another
About the Brembana Sprint Jet
The brembana sprint jet is a numerically controlled 5 interpolated-axis bridge saw with a tilting head and fixed table. It carries out any type of machining, including cutting (straight or shaped, vertical or inclined), 3D profiling and milling, on marble, granite, composite stone and ceramic, as well as stone blocks.
It is equipped with an abrasive waterjet cutting head that works in combination with the diamond disk to automate natural and composite stone slab cutting where interfering cuts and internal angles are a factor. The AWJ head, integral with the main head, allows variable and small-radius cutting that would be impossible with the diamond disk alone.
The machine can be customised to suit the customer and is also available with pallet change, so the operator can load the next slab outside the machine while it cuts another.
