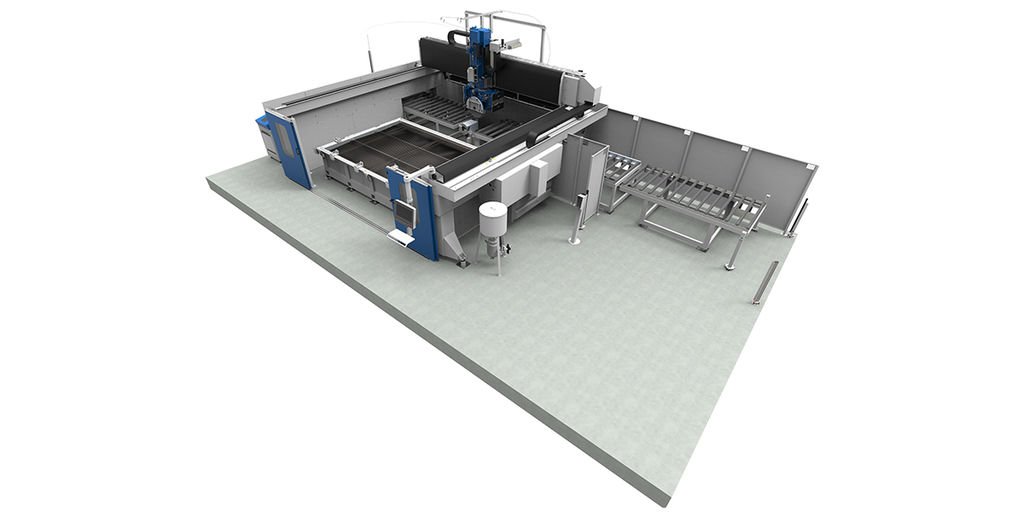

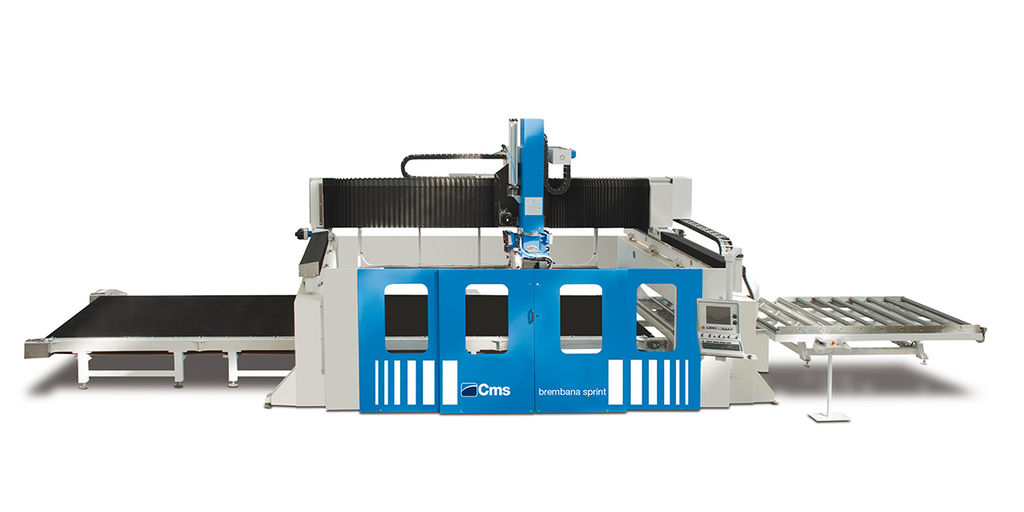

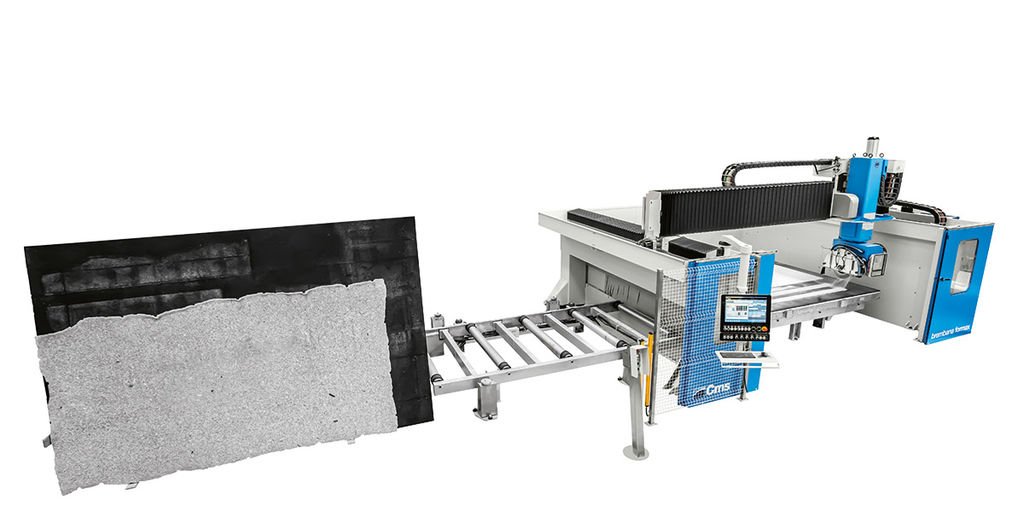

Brembana Sprint
Bridge SawsCNC 5-axis bridge saw with a 4,250 mm bridge stroke for large slabs and blocks. Cutting, 3D profiling and milling on marble, granite, composite stone and ceramic.
Product brochure
Not online yet. A technician can send you a copy.
Specifications
- X axis stroke
- 4,250 mm (167 in)
- Y axis stroke
- 2,550 to 7,200 mm (100 to 283 in)
- Z axis stroke
- 600 to 900 mm (24 to 35 in)
- Disk diameter
- 350 to 825 mm (14 to 32 in)
- Motor
- 18.5 kW (25 HP)
- Motor revolution
- 0 to 5,000 rpm (optional 0 to 6,000 rpm)
- Electrospindle (optional)
- 13 kW (18 HP), 0 to 8,000 rpm, ISO 50
- Maximum working thickness (90° Ø625 mm disk)
- 200 mm (8 in)
- Maximum working thickness (45° Ø625 mm disk)
- 130 mm (5 in)
- Head revolution (4th axis)
- ± 270° (540°)
- Head inclination (5th axis)
- +8° to -90°
- Workbench dimensions
- 4,200 x 2,500 mm (165 x 98 in)
- Minimum installation space
- 7,700 x 4,680 x 3,780 mm (303 x 184 x 149 in)
Key features

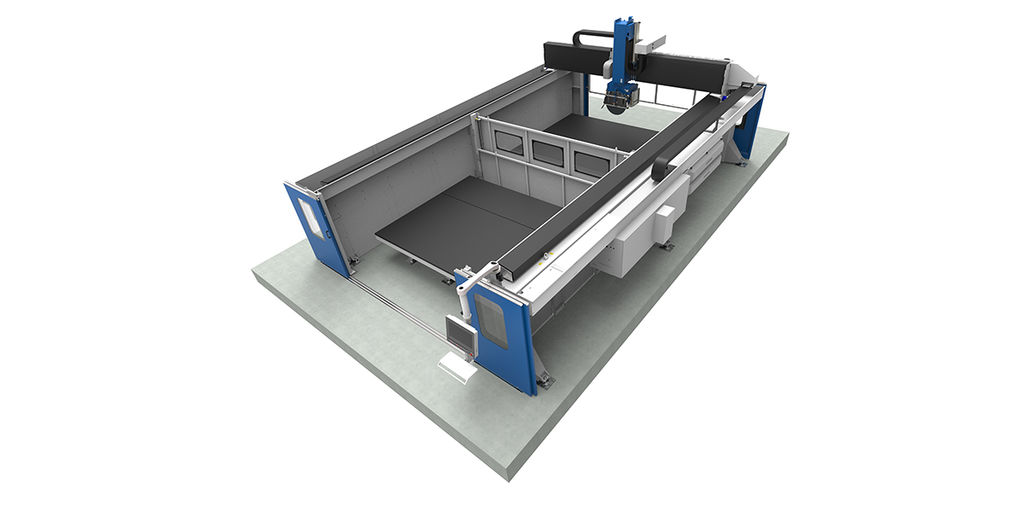

- Unrivalled mechanics: the open-frame version mounts on concrete or steel shoulders for stability, rigidity and long life
- Motion accuracy: brushless motors with precision reduction gears on tempered, ground guides and ball bearings
- Limitless technology: an optional powerful ISO 50 electrospindle turns the machine into a complete 5-axis machining centre
- +33% productivity: the vacuum manipulator moves cut pieces automatically to optimise slab cutting and reduce waste
Options
- Automatic workbench exchange system (DUAL)
- Cutting line with a belt working table (BT)
- Pendular machining
- Automatic piece unloading system
About the Brembana Sprint
The brembana sprint is a numerically controlled 5 interpolated-axis bridge saw with a tilting head and fixed table. It carries out any type of machining, including cutting (straight or shaped, vertical or inclined), 3D profiling and milling, on slabs and stone blocks, and can work one shot or step by step to shape marble, granite, composite stone and ceramic. The 4,250 mm bridge stroke makes light work of large slabs and stone blocks.
Highly customisable, it is the best solution for large fabshops with high output of kitchen countertops, vanity tops, wall panels for interiors and exteriors, flooring, doorsteps, staircases, thresholds and street furniture.
The brembana sprint is also available with an automatic workbench exchange system (DUAL), a belt working table (BT), pendular machining and an automatic piece unloading system.
