Brembana Kosmos
Bridge SawsNew generation 5-axis monoblock bridge saw. Compact, needs no foundations, and cuts natural stone, synthetic stone and ceramic slabs up to 200 mm thick with a Ø625 mm blade.
Product brochure
Not online yet. A technician can send you a copy.
Specifications
- X axis stroke
- 3,960 mm (156 in)
- Y axis stroke
- 2,450 mm (97 in)
- Z axis stroke
- 400 mm (16 in)
- Head revolution (C axis)
- ± 180° (360°)
- Head inclination (A axis)
- 0° to 90°
- X axis speed
- 30 m/min
- Y axis speed
- 25 m/min
- Z axis speed
- 8 m/min
- Disk diameter
- 350 to 625 mm (14 to 25 in)
- Maximum working thickness (Ø625 mm disk)
- 200 mm (8 in)
- Blade motor
- 18.5 kW (25 HP)
- Motor revolution
- 0 to 6,000 rpm
- Worktable dimensions
- 3,600 x 2,500 mm (142 x 98 in)
- Water consumption (3 bar)
- 40 l/min
- Air consumption (6 bar)
- 17 l/min
- Overall dimensions
- 6,650 x 4,300 x 3,165 mm
- Overall machine weight
- Up to 5,100 kg (11,240 lb)
Key features
- +80% suction surface compared with the market average, with a manipulator 2.6 times larger than the previous generation
- +107% lifting span, to lift even the thinnest slabs without breaking them
- +12% productivity on kitchen tops with the optional 3.7 kW high-rpm side spindle
- Unrivalled mechanics: up to 5,100 kg fixed directly to the floor with no building work, for constant precision over time
- Fully interpolated rotary and linear axes for 5-axis machining with disk and tool
- +33% productivity: the vacuum manipulator moves cut pieces automatically to reduce waste
- Simple, intuitive on-board programming
About the Brembana Kosmos
The brembana kosmos is the new generation of 5-axis monoblock bridge saw, fully controlled by numerical control. Compact and easy to install, it requires no foundations, even when re-installed. Built with the needs of workshops in mind, it cuts slabs up to 200 mm thick with a Ø625 mm blade in natural stone, synthetic stone and ceramic. Its powerful blade motor delivers 25 HP and 125 Nm of torque, 34% higher than the previous generation.
Weighing up to 5.1 tonnes, it ensures perfect rigidity for producing kitchen countertops, vanity tops, wall panels for interiors and exteriors, flooring, street furniture, doorsteps, staircases and thresholds.
Watch

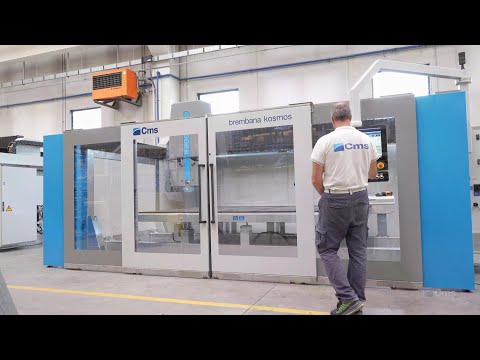

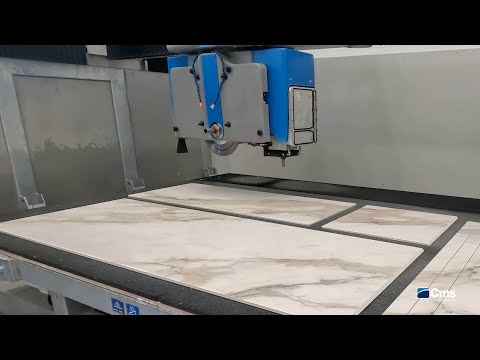

The Brembana Kosmos in action
