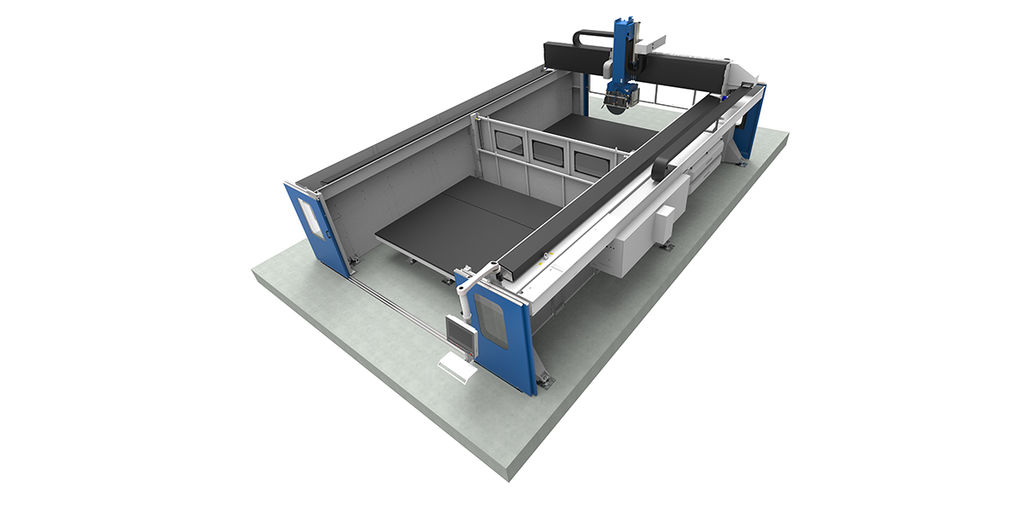

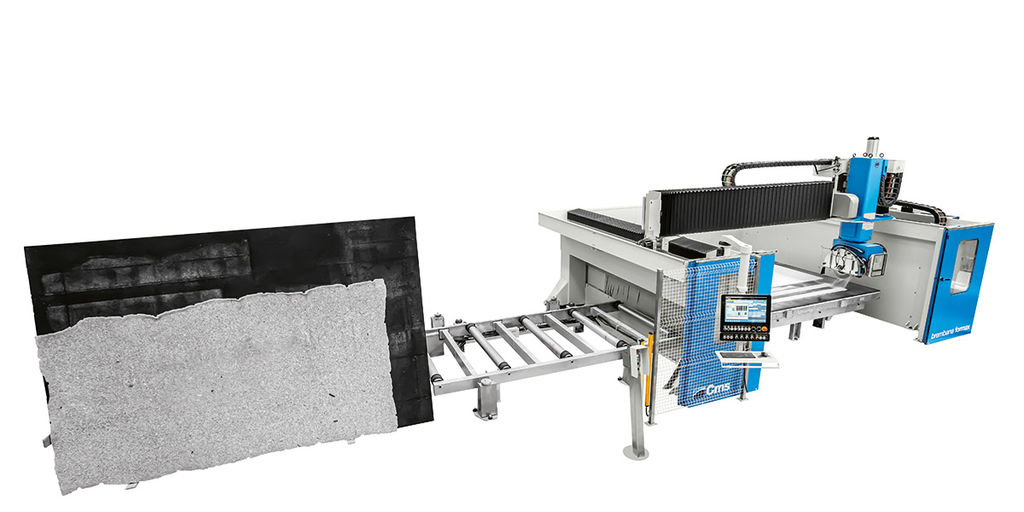

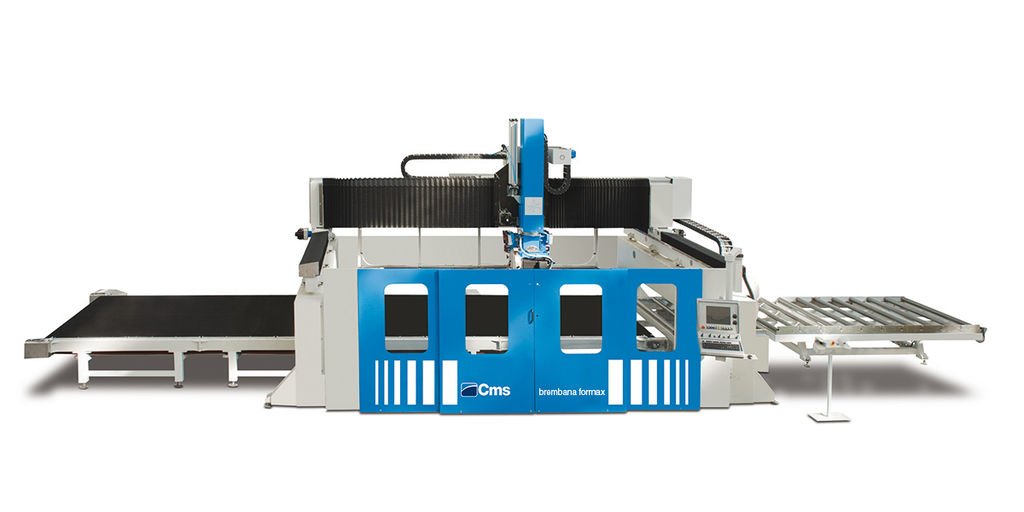

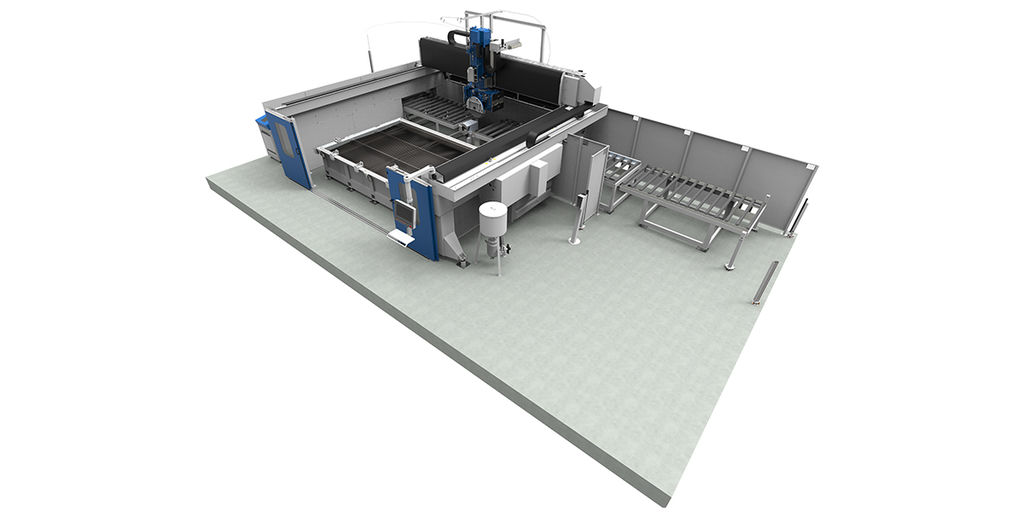

Brembana Formax
Bridge SawsNumerically controlled 5-axis bridge saw with tilting head and fixed table for cutting, 3D profiling and milling marble, granite, composite stone, ceramic and stone blocks.
Product brochure
Not online yet. A technician can send you a copy.
Specifications
- X axis stroke
- 3,800 mm (150 in)
- Y axis stroke
- 2,550 to 7,200 mm (100 to 283 in)
- Z axis stroke
- 700 mm (27 in)
- Disk diameter
- 350 to 725 mm (14 to 28 in), optional 825 mm (32 in)
- Motor
- 18.5 kW (25 HP) or 25.5 kW (34 HP)
- Motor revolution
- 0 to 5,000 rpm (optional 0 to 6,000 rpm)
- Electrospindle (optional)
- 13 kW (18 HP), 0 to 8,000 rpm, ISO 50
- Maximum working thickness (90° Ø625 mm disk)
- 200 mm (8 in)
- Maximum working thickness (45° Ø625 mm disk)
- 130 mm (5 in)
- Head revolution (4th axis)
- ± 270° (540°)
- Head inclination (5th axis)
- +8° to -90°
- Workbench dimensions
- 3,600 x 2,500 mm (142 x 98 in)
- Minimum installation space
- 6,560 x 4,680 x 3,490 mm (258 x 184 x 137 in)
Key features
- Unrivalled mechanics: the open-frame version mounts on concrete or steel shoulders for stability, rigidity and long life on the most demanding work
- Motion accuracy: all movements driven by brushless motors with precision reduction gears on tempered, ground guides and ball bearings
- Limitless technology: an optional powerful ISO 50 electrospindle turns the machine into a complete 5-axis machining centre
- +33% productivity: the vacuum manipulator moves cut pieces automatically to optimise slab cutting and reduce waste
Options
- Automatic workbench exchange system (DUAL)
- Cutting line with a belt working table (BT)
- Pendular machining
- Automatic piece unloading system
About the Brembana Formax
The brembana formax is a numerically controlled 5 interpolated-axis bridge saw with a tilting head and fixed table. It carries out any type of machining, including cutting (straight or shaped, vertical or inclined), 3D profiling and milling, on marble, granite, composite stone and ceramic, as well as stone blocks.
The machine can be customised to suit the customer, making it the winning solution for every fabshop producing kitchen countertops, vanity tops, wall panels for interiors and exteriors, flooring, doorsteps, staircases, thresholds and street furniture.
The brembana formax is also available with an automatic workbench exchange system (DUAL), a belt working table (BT), pendular machining and an automatic piece unloading system.
Watch

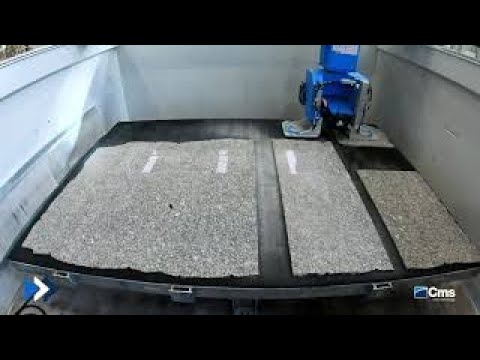

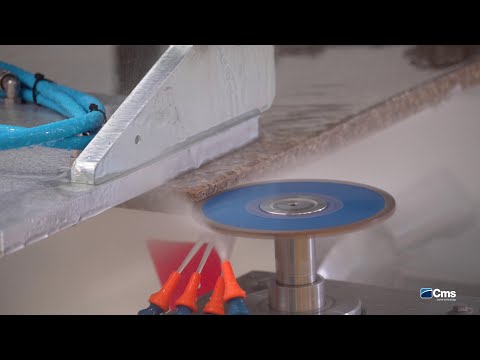

The Brembana Formax in action
