Sulak
RP 210 F
IGU ProductionPolycarbonate cutter for sheets up to 25 mm thick, with adjustable cutting speed, laser cut guidance and a low loading edge for large formats.
Specificaties
- Machine dimensions
- 5570 x 1100 x 3000 mm
- Power supply
- 1 x 230 V (3 x 230 V), 0.4 kW
- Sheet thickness
- 4 mm to 25 mm
- Cutting speed
- 0 to 4 m/min (adjustable)
- Maximum sheet height
- 2150 mm
- Maximum sheet width
- 7000 mm
- Minimum sheet size
- 100 x 100 mm
- Work table height
- 370 mm
- Infeed stand size
- 3300 mm
- Outfeed stand size
- 2000 mm
- Weight
- 390 kg
- Noise level
- 74 dB
Belangrijkste kenmerken
- Single person operation
- Low loading edge for easy handling of large formats
- Built in laser pointer marks the cut
- Adjustable cutting speed
- Hot dip galvanised frame
- Easy blade change
- Power consumption only 400 W
- Low operating and maintenance costs
- 2 year warranty
Over de RP 210 F

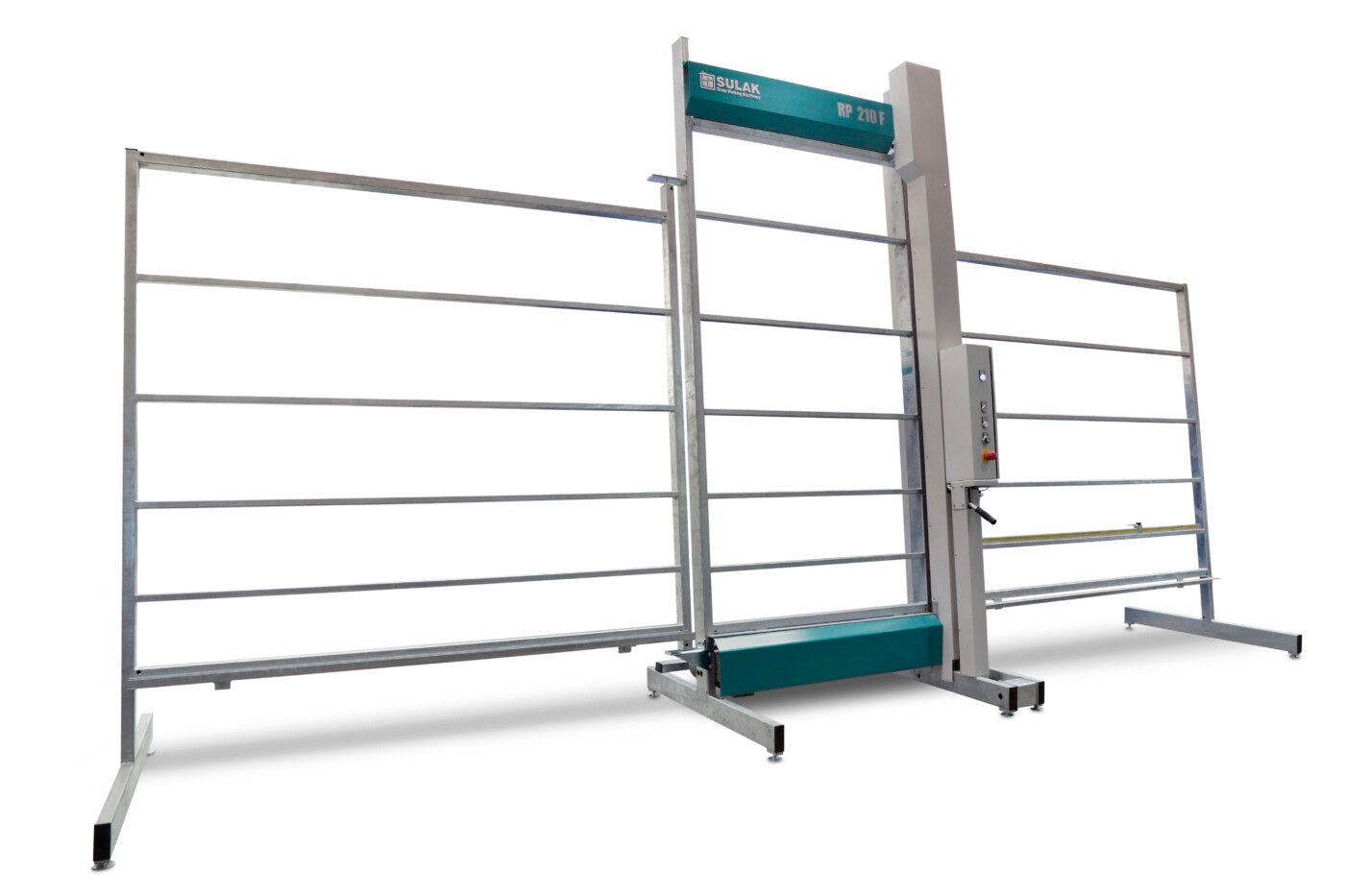

The RP 210 F is a polycarbonate cutter designed for cutting polycarbonate up to 25 mm thick. One person can cut large formats easily thanks to the low loading edge. Sheets feed straight from the rack tray: rotate the infeed frame to the required position, insert the sheet at the cutting point and start the blade.

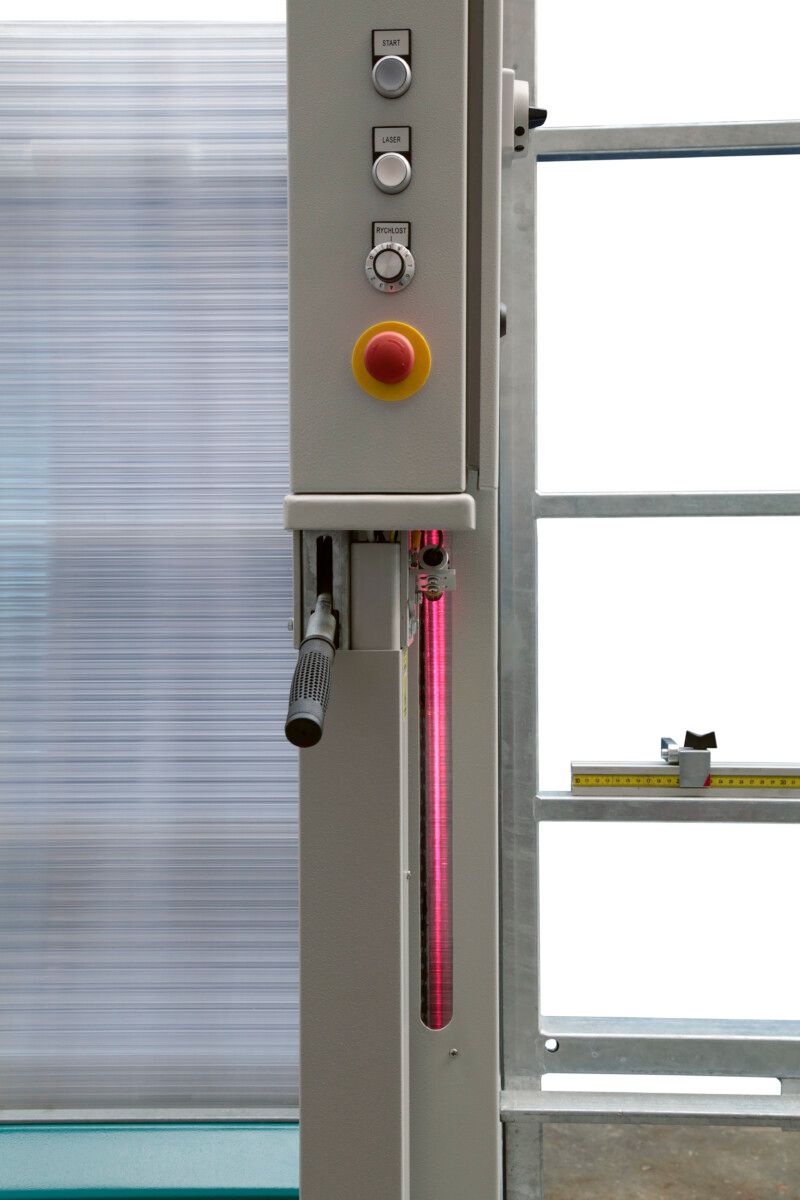

A built in laser pointer marks the cut accurately, and the precisely guided blade produces straight, clean cuts. Cutting speed is adjustable and the frame is hot dip galvanised.
Interesse in de RP 210 F?
Overleg met sales over prijzen, levertijden en installatie. Wij verzorgen ook demonstraties.
Plan een gratis adviesgesprek
