RP 210
IGU ProductionPolycarbonate cutter for multiwall sheets up to 20 mm thick. Single person operation, laser cut guidance and clean, burr free cuts.
Specificaties
- Machine dimensions
- 5460 x 1100 x 3000 mm
- Power supply
- 3 x 400 V (3 x 230 V), 0.4 kW
- Sheet thickness
- 4 mm to 20 mm
- Cutting speed
- 2.6 m/min
- Maximum sheet height
- 2150 mm
- Maximum sheet width
- 7000 mm
- Minimum sheet size
- 100 x 100 mm
- Work table height
- 370 mm
- Infeed stand size
- 3300 mm
- Outfeed stand size
- 2000 mm
- Weight
- 390 kg
- Noise level
- 74 dB
Belangrijkste kenmerken
- Single person operation
- Sheets load straight from the rack, with a low loading edge close to the floor

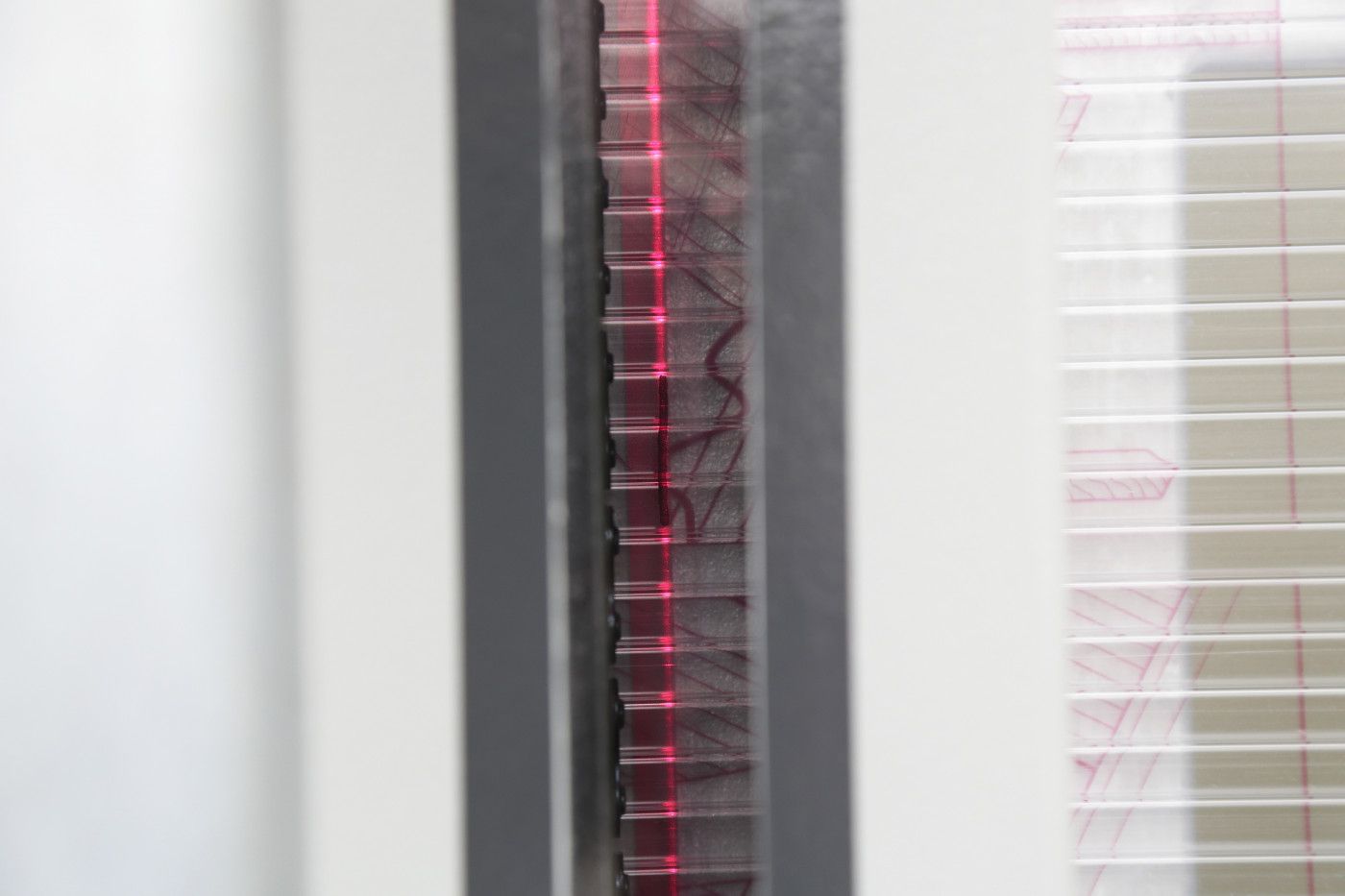

- Laser pointer marks the cutting line
- Hot dip galvanised frame
- Easy blade replacement
- Power consumption only 400 W
- Low operating and maintenance costs
- 2 year warranty
Over de RP 210

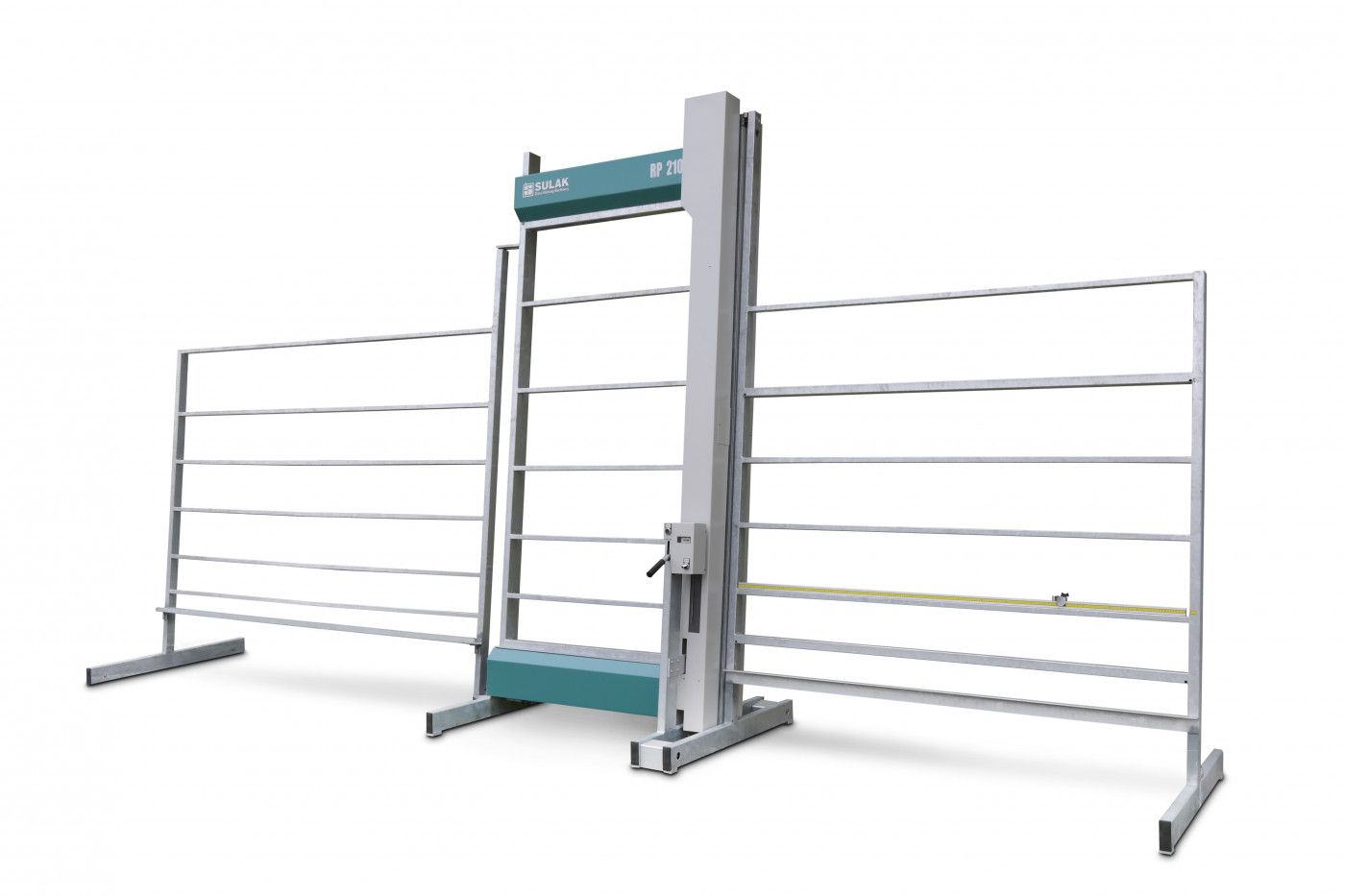

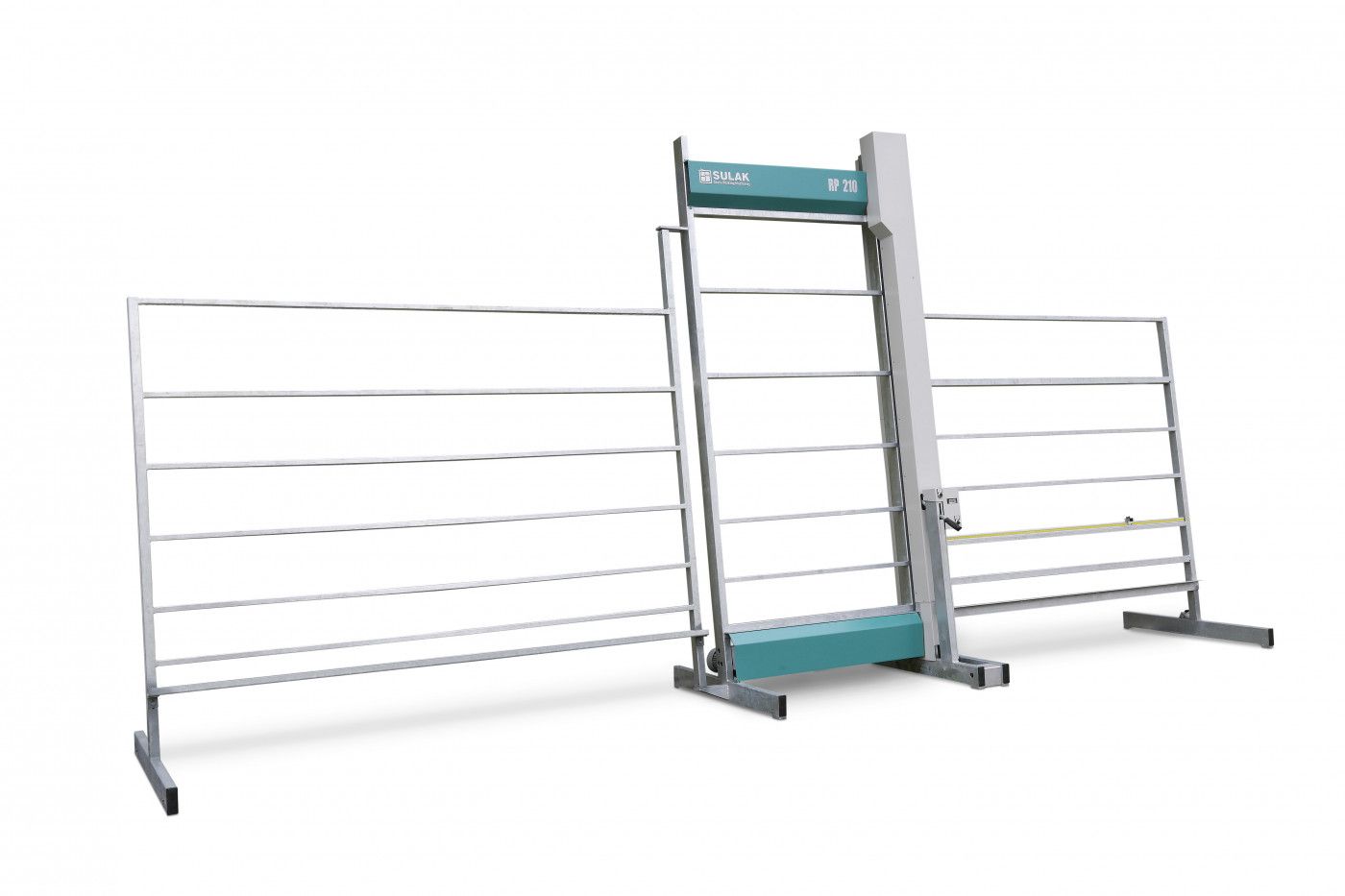

The RP 210 is a polycarbonate cutter for cutting multiwall polycarbonate sheets up to 20 mm thick. One person operates it. Sheets feed into the machine straight from the rack: the operator aims the infeed frame at the chosen rack, pulls the sheet into the cutting position and runs the cut.
A laser pointer shows the cutting line, and the precisely guided blade produces straight cuts with no burrs. The frame is hot dip galvanised and running costs are low.
