Sulak
BBT 03 UNI
Edging & PolishingShape edging machine for flat or round glass edges from 3 mm to 12 mm thick, with an adjustable wheel angle and two wheels per spindle.
Specificaties
- Machine dimensions
- 1500 (2500) x 1030 x 1200 mm
- Power supply
- 3 x 400 V (3 x 230 V), 50/60 Hz
- Motor
- 1.6 kW, 2800 rpm
- Glass thickness
- 3 mm to 12 mm
- Weight
- 260 kg
- Minimum glass size
- 150 x 150 mm
- Noise level
- 76 dB
- Minimum circle size
- 300 / 1500 mm
- Wheels per spindle
- 2
- Wheel adjusting angle
- 0 to 6 degrees
Belangrijkste kenmerken
- Water cooled diamond grinding and polishing wheels
- Two wheels on one spindle
- Adjustable wheel angle from 0 to 6 degrees
- Zinc dipped, robust frame
- Power consumption only 1.6 kW
- Mobile
- 2 year warranty
Over de BBT 03 UNI

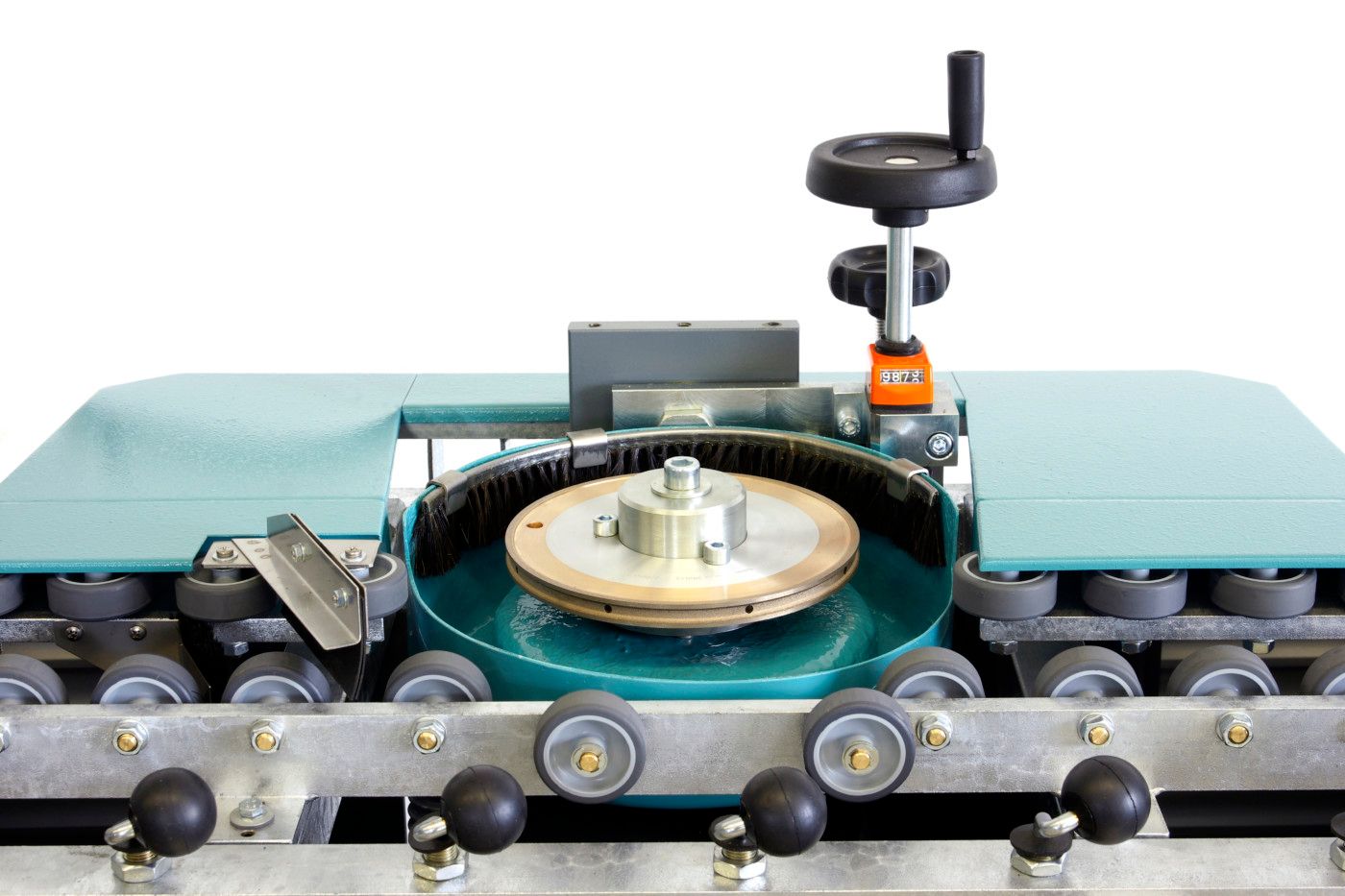

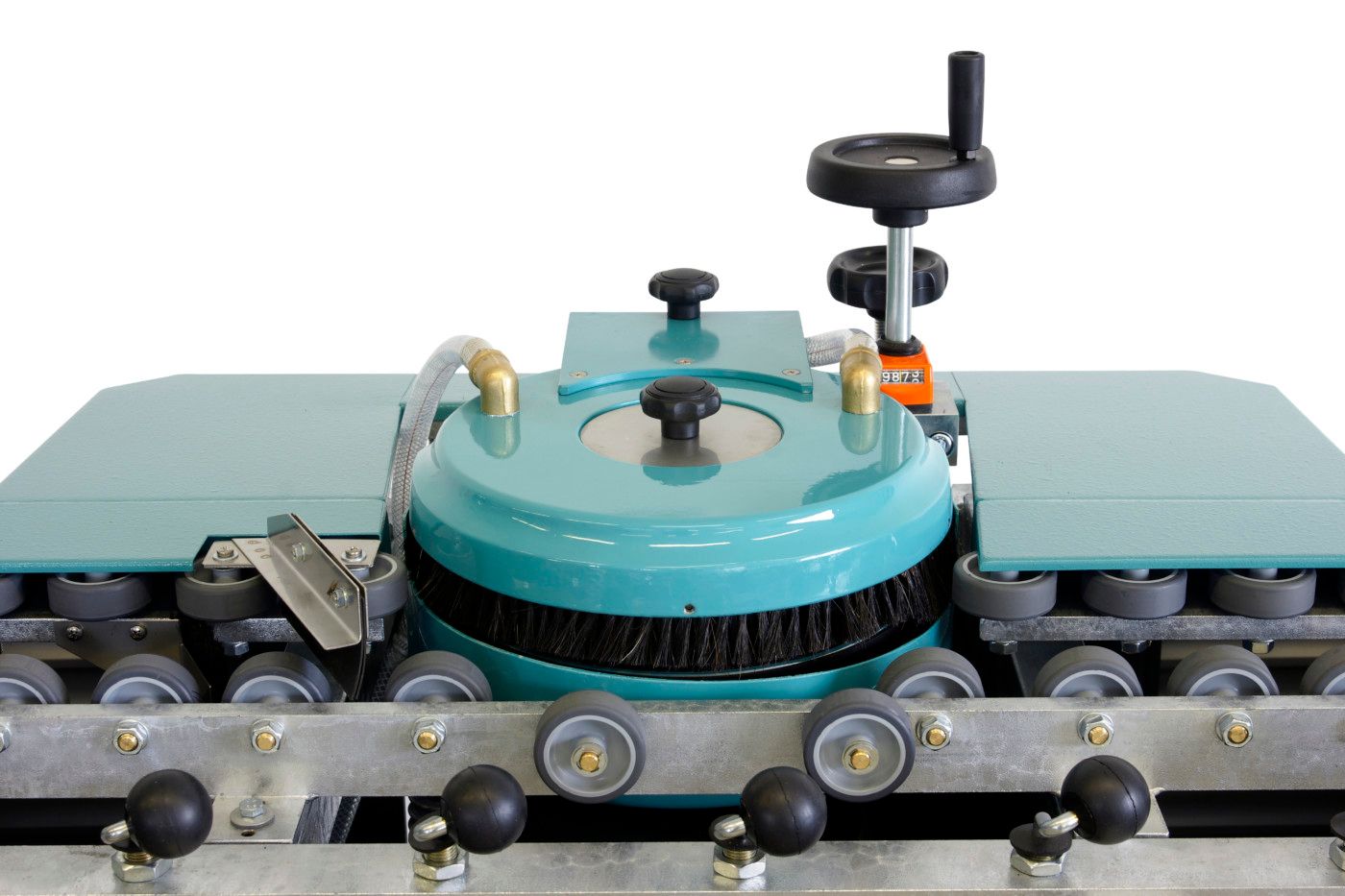

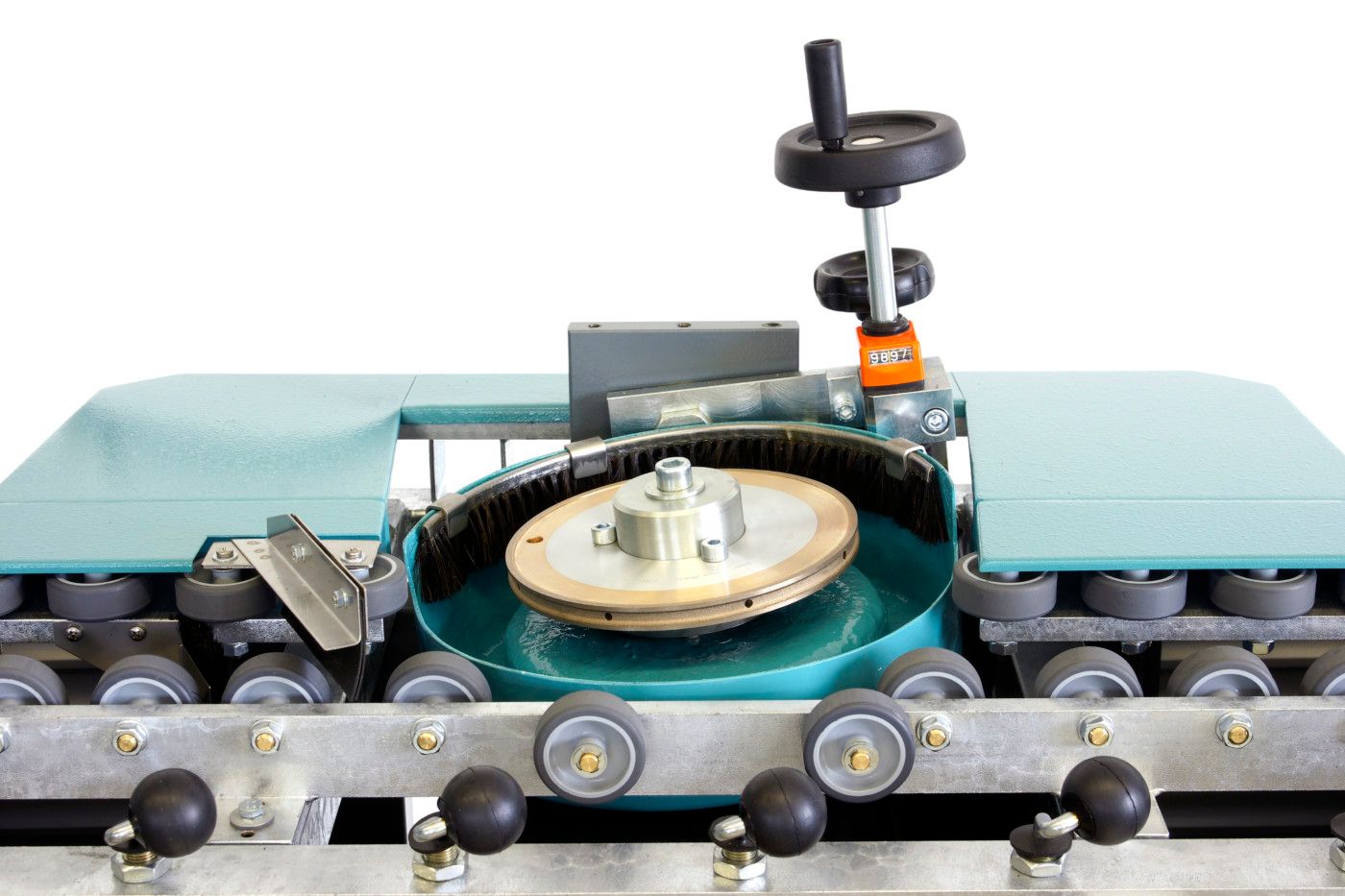

The BBT 03 UNI is a shape edging machine for grinding and polishing the flat or round peripheral edges of sheet glass, mirrors and similar materials, using water cooled diamond grinding and polishing wheels.
It treats glass from 3 mm to 12 mm thick and finishes edges in a C profile, trapezoidal or flat shape. The machine carries two wheels on one spindle and the wheel angle adjusts from 0 to 6 degrees, giving flexibility across a range of edge profiles.
